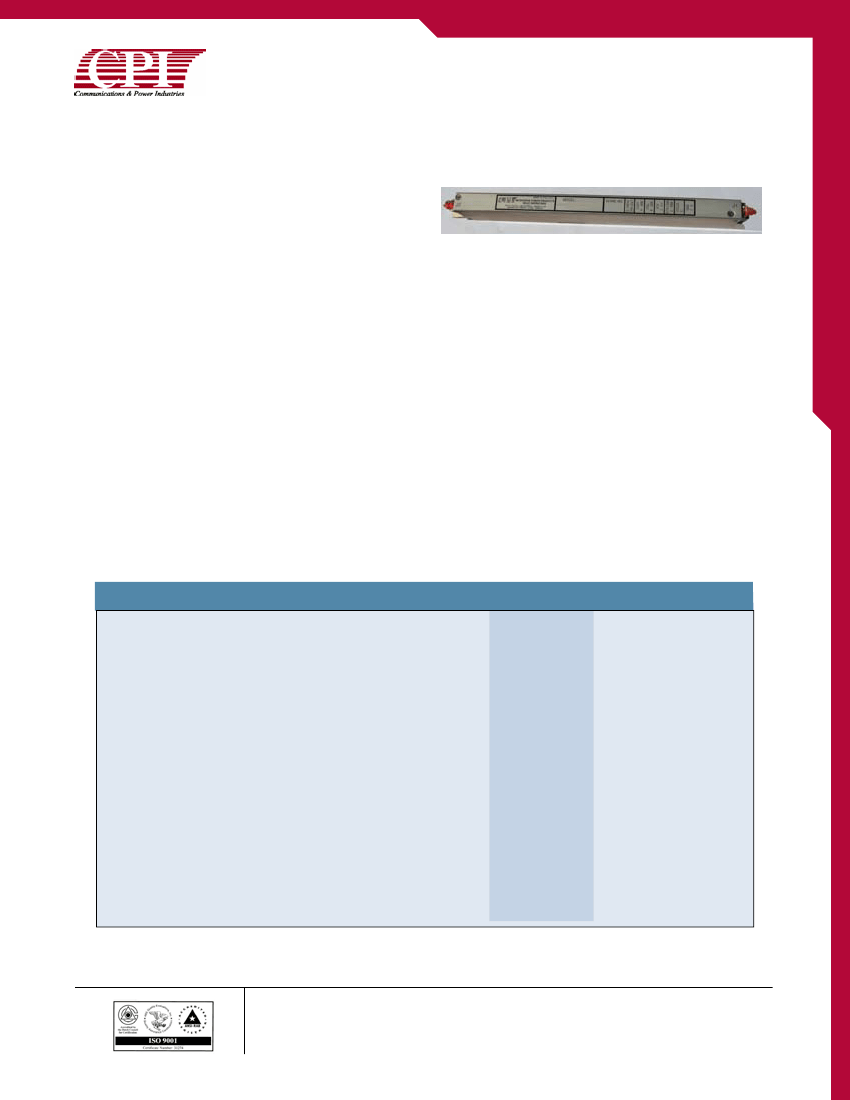

CPI 60 To 80
W, CW MInI HelIx T W T
CPI | 4CW50,000J
60 to 80 W, CW Mini Helix TWT
60 to 80 W, CW Mini Helix TWT, 6.0 to 18.0 GHz,
periodic-permanent, magnet focused, coaxial
input and output, conduction cooled.
Custom configurations are available. These
variations in the performance and configuration
include: mechanical configuration, electrical and
RF connections.
FeaTures
• 60 - 80 W
• 6.0 to 18.0 GHz
• PPM Focusing
• Coaxial Input and Output
• Connectors: SMA / TNC
• Any Mounting Position
• Weight: 2 lbs. max
• Conduction Cooled
Model
FrequenCy
(GHz)
6.0 to 18.0
6.0 to 18.0
6.0 to 18.0
PoWer ouTPuT
(MIn)
60 W
80 W
80 W
VTM-6113R1
VTM-6113R2
VTM-6113R2D
TyPICal oPeraTInG ParaMeTers
MaxIMuM
Heater Voltage:
Heater Current:
Helix Voltage:
Helix Current:
Collector Current:
Collector Voltage :
Focus electrode Beam off:
Focus electrode Beam on
6.6
1.3
4300
15
180
52% ew
-1000
0.00
MInIMuM
5.7
---
4100
---
165
47% ew
---
---
TyPICal
---
---
---
---
---
---
---
---
unITs
V
ma
Vdc
madc
madc
kVdc
Vdc
Vdc
The values listed above represent specified limits for the product and are subject to change. The data should be used for basic
information only. Formal, controlled specifications may be obtained from CPI for use in equipment design.
For information
on this and other CPI products, visit our website at:
www.cpii.com,
or contact: CPI MPP Division, 607 Hansen Way, Palo Alto, CA 94303
telephone
:
1(800) 414-8823.
fax
:
(650) 856-0705 |
email
:
marketing@cpii.com
CPI 09/10
