SPDT SWITCH GaAs MMIC
GENERAL DESCRIPTION
NJG1600KB2 is a GaAs SPDT switch IC that features
small-sized package and low insertion loss , and ideally
suited for T/R switch of digital cordless telephone or other
digital wireless systems.
This switch is operated in the wide frequency range from
100MHz to 2.5GHz at low operating voltage from +2.5V.
The ultra small & ultra thin FLP6-B2 package is adopted.
FEATURES
Low control voltage
Low insertion loss
NJG1600KB2
Mar.22,2002 Ver.2
Under Development
PACKAGE OUTLINE
NJG1600KB2
High isolation
+2.7V typ.
0.3dB typ. @f=1.0GHz
0.35dB typ. @f=2.0GHz
0.4dB typ. @f=2.5GHz
25dB typ. @f=1.0GHz
18dB typ. @f=2.0GHz
17dB typ. @f=2.5GHz
27dBm typ. @f=2.5GHz
15uA typ.
FLP6-B2 (Package size: 2.1x2.0x0.75mm)
Pin at 1dB
compression point
Low control current
Ultra small & ultra thin package
PIN CONFIGURATION
Orientation Mark
KB2 Type
Top view
1
2
3
6
5
4
Pin connection
1.P1
2.GND
3.P2
4.VCTL2
5.PC
6.VCTL1
TRUTH TABLE
“H”=V
CTL (H),
“L”=V
CTL (L)
V
CTL1
V
CTL2
PC - P1
PC - P2
H
L
OFF
ON
L
H
ON
OFF
-1-
NJG1600KB2
ABSOLUTE MAXIMUM RATINGS
PARAMETER
RF Input Power
Supply Voltage
Control Voltage
Operating Temp.
Storage Temp.
SYMBOL
P
IN
V
DD
V
CTL
T
opr
T
stg
TENTATIVE
CONDITIONS
V
DD
=2.7V, V
CTL
=0V/2.7V
VDD terminal
VCTL terminal
CONDITIONS
27
7.5
7.5
-40~+85
-55~+150
UNITS
dBm
V
V
°C
°C
ELECTRICAL CHARACTERISTICS
(General conditions: V
CTL (L)
=0V, V
CTL (H)
=2.7V, Z
S
=Z
l
=50Ω, T
a
=25°C)
PARAMETERS
Operating Current
Control Voltage (LOW)
Control Voltage (HIGH)
Control Current
SYMBOL
CONDITIONS
MIN
TYP
120
-
2.7
15
0.3
0.35
0.4
25
18
17
27
1.4
100
MAX
-
0.8
V
DD
30
0.4
0.45
0.5
-
-
-
-
1.6
-
UNITS
uA
V
V
uA
dB
dB
I
DD
V
CTL (L)
V
CTL (H)
I
CTL
LOSS1
LOSS2
LOSS3
ISL1
ISL2
ISL2
P
-1dB
VSWR
T
SW
f=2.5GHz, P
IN
=22dBm
-
0
2.0
f=2.5GHz, P
IN
=22dBm
f=1.0GHz, P
IN
=22dBm
f=2.0GHz, P
IN
=22dBm
f=2.5GHz, P
IN
=22dBm
f=1.0GHz, P
IN
=22dBm
f=2.0GHz, P
IN
=22dBm
f=2.5GHz, P
IN
=22dBm
f=2.5GHz
f=0.1~2.5GHz, ON state
f=0.1~2.5GHz
-
-
-
-
22
15
14
24
-
-
Insertion Loss 1
Insertion Loss 2
Insertion Loss 3
Isolation 1
Isolation 2
Isolation 3
Pin at 1dB
Compression Point
VSWR
Switching time
dB
dB
dBm
ns
-2-
TENTATIVE
TERMINAL INFORMATION
NJG1600KB2
No.
1
SYMBOL
P1
2
GND
3
P2
4
VCTL2
5
PC
6
VCTL1
DESCRIPTION
RF port. This port is connected with PC port by controlling 4
th
pin (V
CTL(H)
) to
2.5~6.5V and 6
th
pin(V
CTL(L)
) to -0.2~+0.2V. An external capacitor is required
to block the DC bias voltage of internal circuit.
(50~100MHz:0.01uF,
0.1~0.5GHz: 1000pF, 0.5~2.5GHz: 56pF)
Ground terminal. Please connect this terminal with ground plane as close as
possible for excellent RF performance.
RF port. This port is connected with PC port by controlling 6
th
pin (V
CTL (H)
) to
2.5~6.5V and 4
th
pin(V
CTL(L)
) to -0.2~+0.2V. An external capacitor is required
to block the DC bias voltage of internal circuit.
(50~100MHz:0.01uF,
0.1~0.5GHz: 1000pF, 0.5~2.5GHz: 56pF)
Control port 2. The voltage of this port controls PC to P1 state. The ‘ON’ and
‘OFF’ state is toggled by controlling voltage of this terminal such as
high-state (2.5~6.5V) or low-state (-0.2~+0.2V). The voltage of 6
th
pin have to
be set to opposite state. The bypass capacitor has to be chosen to reduce
switching time delay from 10pF~1000pF range.
Common RF port. In order to block the DC bias voltage of internal circuit, an
external capacitor is required.
(50~100MHz:0.01uF, 0.1~0.5GHz: 1000pF,
0.5~2.5GHz: 56pF)
Control port 1. The voltage of this port controls PC to P2 state. The ‘ON’ and
‘OFF’ state is toggled by controlling voltage of this terminal such as
high-state (2.5~6.5V) or low-state (-0.2~+0.2V). The voltage of 4
th
pin have to
be set to opposite state. The bypass capacitor has to be chosen to reduce
switching time delay from 10pF~1000pF range.
-3-
NJG1600KB2

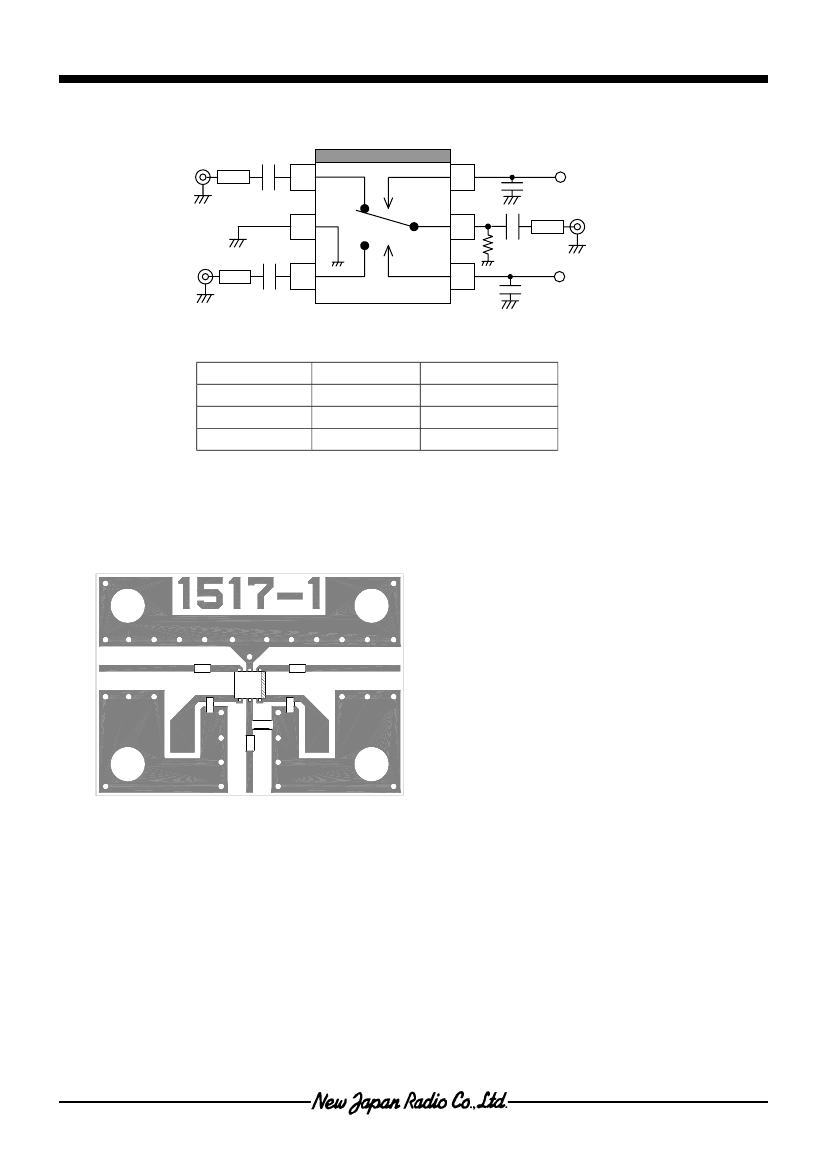

APPLICATION CIRCUIT
Z
o
=50Ω
P1
C2
2
Z
o
=50Ω
P2
C3
3
1
TENTATIVE
VCTL1 (0V/2.7V)
6
5
R1
4
NJG1600KB2
C5
VCTL2 (2.7V/0V)
C4
C1
Z
o
=50Ω
PC
Parts List
Parts ID
C1~C3
C4, C5
R1
Constant
56pF
10pF
560KΩ
Notes
GRM36 MURATA
GRM36 MURATA
1608 Size
RECOMMENDED PCB DESIGN
(TOP VIEW)
C3
P2
C5
R1
VCTL2
C3
PC
C2
C4
VCTL1
P1
PCB SIZE=19.4x14.0mm
PCB: FR-4, t=0.2mm
CAPACITOR: size 1005
STRIPLINE WIDTH=0.4mm
PRECAUTIONS
[1] The DC blocking capacitors have to be placed at RF terminal of P1, P2 and PC.
[2] To reduce stlipline influence on RF characteristics, please locate bypass
capacitors (C4, C5) close to each terminals.
[3] To avoid degradation of isolation or high power characteristics, please layout
ground pattern right under this IC.
.
-4-
NJG1600KB2
PACKAGE OUTLINE
(FLP6-B2)
2.0±0.1
6
5
4
0.2
0.75±0.05
+0.1
0.15
-0.05
1.7±0.1
1
0.65
2
0.65
3
0.2
2.1±0.1
0.1
Lead material
: Copper
Lead surface finish : Solder plating
Molding material : Epoxy resin
UNIT
: mm
Weight
: 6.5mg
+0.1
0.2
-0.05
0.1
Cautions on using this product
This product contains Gallium-Arsenide (GaAs) which is a harmful material.
•
Do NOT eat or put into mouth.
•
Do NOT dispose in fire or break up this product.
•
Do NOT chemically make gas or powder with this product.
•
To waste this product, please obey the relating law of your country.
[CAUTION]
The specifications on this databook are only
given for information , without any guarantee
as regards either mistakes or omissions. The
application circuits in this databook are
described only to show representative usages
of the product and not intended for the
guarantee or permission of any right including
the industrial rights.
This product may be damaged with electric static discharge (ESD) or spike voltage. Please
handle with care to avoid these damages.
-5-
