399-44-128-10-003000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 399-44-128-10-003000

399-44-128-10-003000: DescriptionBoard Connector, 28 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size312KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

399-44-128-10-003000 Overview

Board Connector, 28 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal, Socket, ROHS COMPLIANT

399-44-128-10-003000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (200)
Contact completed and terminated	TIN (200)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	399
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	28
Base Number Matches	1

Preview

Download Datasheet

View All

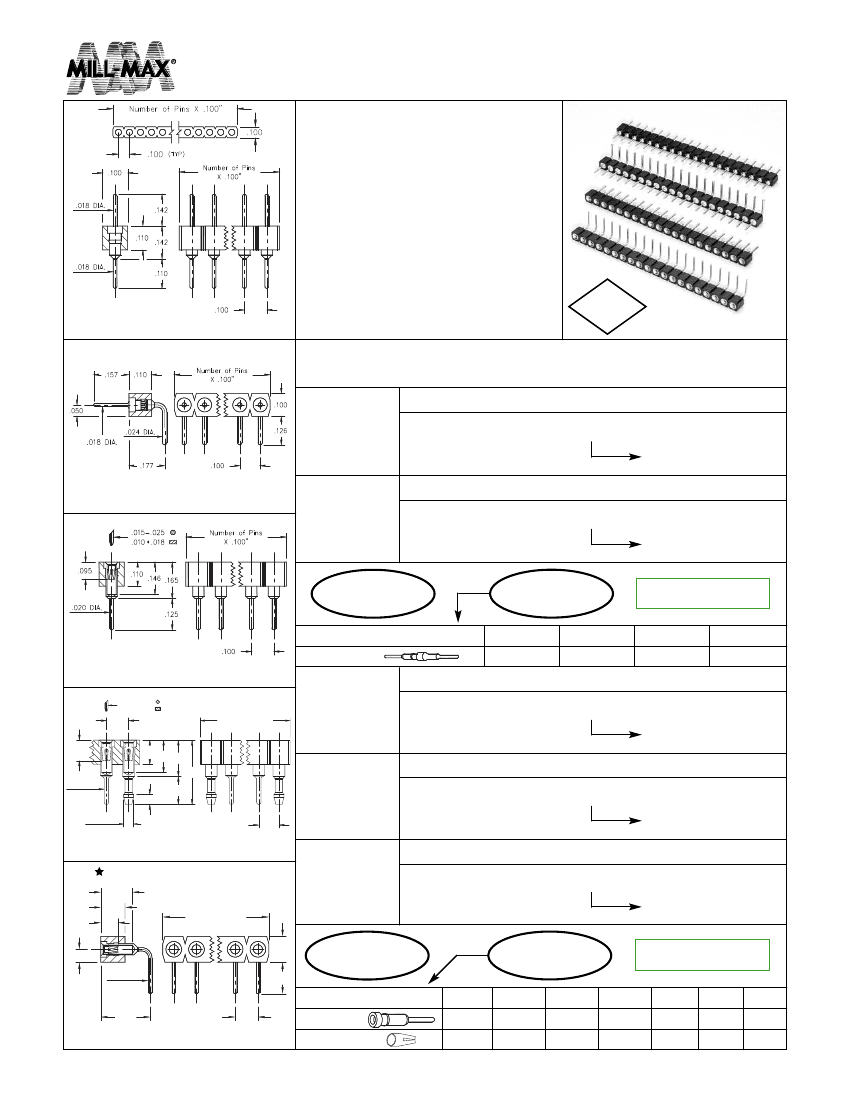

INTERCONNECTS

.100” Grid (.018” dia.) Pins, Straight and Right Angle

Single Row

•

Series 3XX are available with straight

and right angle solder tails.

•

Series 350 & 399...009 use MM #3404

and #5011 pins. See pages 179 & 181

for details.

•

Series 301, 310 & 399...003 use MM

#0156, #1001 & #1103 receptacles. See

pages 136 & 137 for details.

•

Receptacles use Hi-Rel, 4 finger #30

BeCu contact rated at 3 amps. See page

218 for details.

Series 301, 310,

350, 399

Fig. 1

•

Insulators are high temp. thermoplastic.

2002/95/EC

RoHS

Ordering Information

Series 350...006

Straight Pin Header

01-64

Right Angle Pin Header

02-64

For RoHS compliance

select



plating code.

Fig. 1

350-XX-1_ _-00-006000

Specify # of pins

Fig. 2

Series 399...009

Fig. 2

399-XX-1_ _-10-009000

Specify # of pins

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

SPECIFY PLATING CODE XX=



10μ” Au

200μ” Sn/Pb



200μ” Sn

Pin Plating

Fig. 3

.015-.025

.010 * .018

Series 310...001

Number of Pins

X .100"

Straight Socket

01-64

Socket w/ Retention Pegs

01-64

Right Angle Socket

01-64

For RoHS compliance

select



plating code.

.100

Fig. 3

310-XX-1_ _-41-001000

Specify # of pins

Series 301...056

.093

.110

.146 .163

.290

.020

DIA.

.043

.045 DIA.

.127

Fig. 4

.100

301-XX-1_ _-41-560000

Specify # of pins

Series 399...003

Fig. 4

41, 91 & 99 Platings Non-Standard

.144

.110

.094

Number of Pins

X .100"

Fig. 5

399-XX-1_ _-10-003000

Specify # of pins

.050

.018 DIA.

.100

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

.126

SPECIFY PLATING CODE XX=

.220

.100



10µ” Au

30µ” Au

10µ” Au

30µ” Au

200µ”Sn/Pb



10µ” Au



Sleeve (Pin)

Contact (Clip)

200µ” Sn/Pb 200µ” Sn/Pb 200µ”Sn/Pb 200µ”Sn 200µ”Sn 200µ”Sn

30µ” Au 200µ”Sn

Fig. 5
