WJ204-2C-F-12VDC: DescriptionCAR CONTROL UNIT USE MINIATURE RELAYS; File Size90KB，3 Pages; ManufacturerETC1

Download Datasheet View All

WJ204-2C-F-12VDC Overview

CAR CONTROL UNIT USE MINIATURE RELAYS

Preview

Download Datasheet

View All

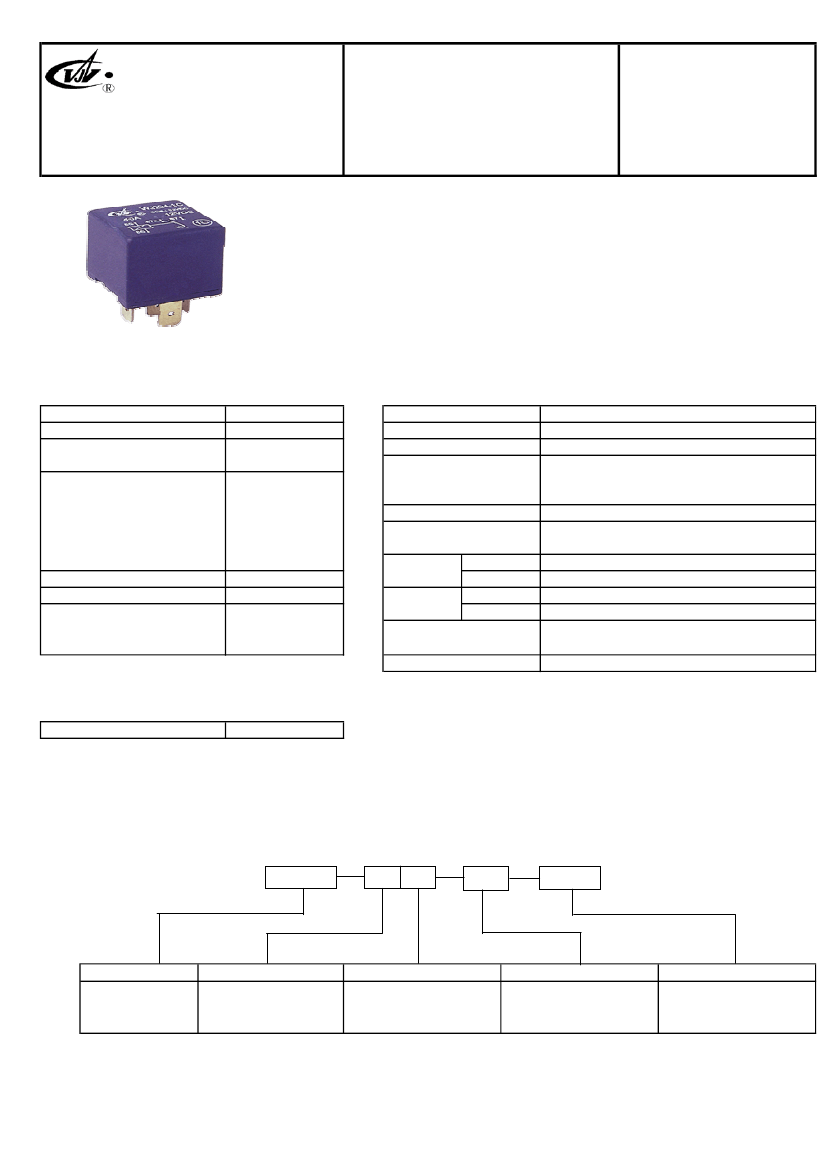

ISSU:2000.7.12

WJ 204

WANJIA

Relays for advanced technology

•

CAR CONTROL UNIT USE

MINIATURE

RELAYS

WJ204-RELAYS

40A rating at 85•

Compatible Faston Terminal arrangment with this kind of power relay

Simple magnetic circuit to meet mass production for low cost offer.

Standard type contact form is form C and 2 form A contact arrang-

ment also available.

Operating ambient temperature range covers from - 40• to 85• .

SPECIFICATIONS

Contact

Arrangement

Contact Material

Contact Resistance

(By voltage drop 6V 1A)

Rating

Nominal switching capacity

Resistive load

(cos•=1)

Inductive load

(cos•=0.4 L/M=1 msec)

Max. Switching current

Max. Switching Power

Expected life(min.ope)

Mechanical(at 120 cpm)

Electrical (at 20 cpm)

1a,1b,1c,2a

Silver alloy

Max.100m•

Characteristics

Operate Time

Release Time

Operating humidity

Initial breakdown voltage

Between coil & contact

Between open contacts

Insulation Resistance

Ambient temperature

Shock

Functional

Resistance

Destruction

Vibration

Functional

Resistance

Destruction

Temperature rise(Max)

(at nominal voltage)

Unit weight

Max.10msec.

45 to 85% RH

500VAC (50/60Hz)for 1 min.

Min. 100M• (500 VDC)

-40••+85•

(No water drop condensation)

Min.20G

Min.100G

10 to 55 Hz at double Amplitude of 1.5mm

75deg.(at 20•)

Approx.42g

N.C.:30A 14VDC

N.O.: 40A 14VDC

40A

500W

1×10

Coil

Nominal operating power

1.8W

TYPICAL APPLICATION

For direct connection with Cell Motors, Transmission,etc. and Anti-Locking Break System.

ORDERING INFORMATION

WJ204

12VDC

Type

WJ204

Number of pole

1: 1pole

2: 2pole

Contact form

A: 1 form A

B: 1 form B

C: 1 form C

Case form

F : flange case type

Coil voltage(DC)

12, 24V
