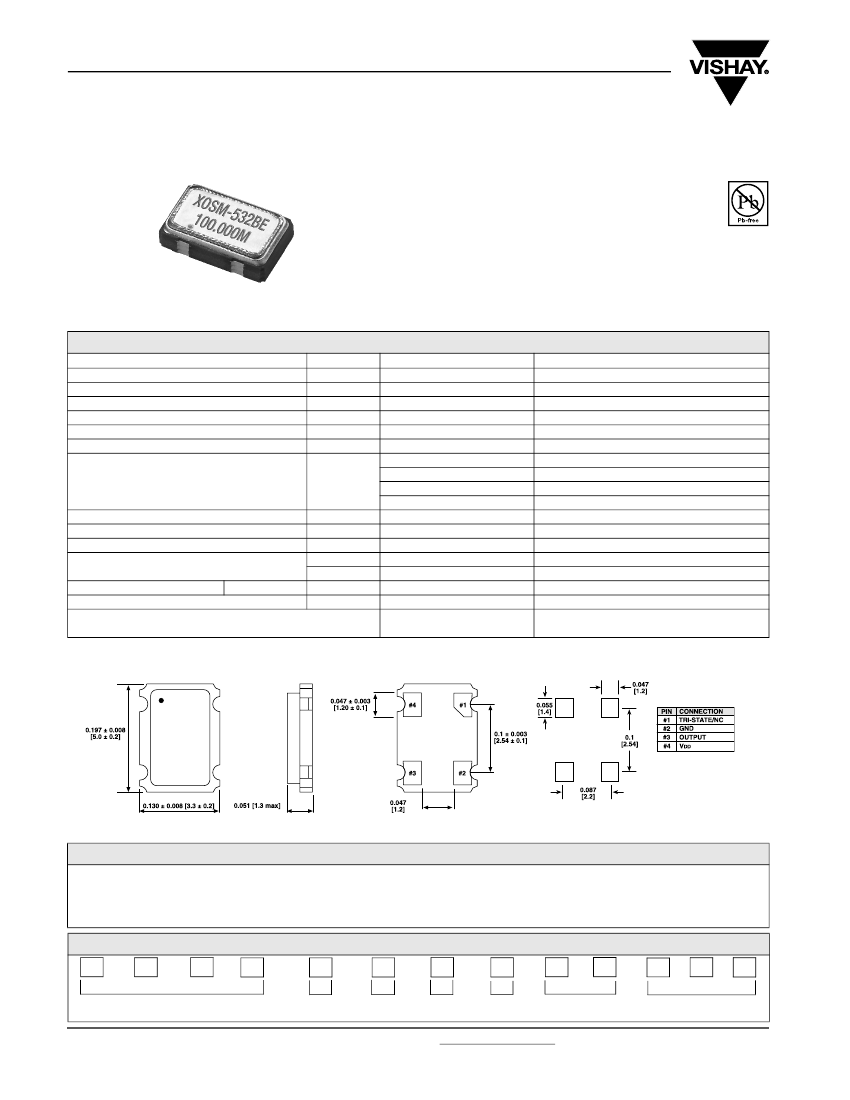

XOSM-532
Vishay Dale
Surface Mount Oscillator
FEATURES
•
5 x 3.2 x 1.3 Miniature Package
The XOSM-532 series is an ultra miniature package clock
oscillator with dimensions 5.0 x 3.2 x 1.3 mm. It is mainly used
in portable PC and telecommunication devices and equipment.
•
•
•
•
•
•
Tri-state enable/disable
HCMOS compatible
Tape and Reel
IR Re-flow
2.5 V input voltage
100 % Lead (Pb)-free and RoHS compliant
RoHS
COMPLIANT
STANDARD ELECTRICAL SPECIFICATIONS
XOSM-532
1.544 MHz ~ 100.000 MHz
All Condition*
± 25 ppm, ± 50 ppm, ± 100 ppm
T
OPR
0 ºC ~ 70 ºC (- 40 ºC ~ + 85 ºC option)
T
STG
- 55 ºC ~ + 125 ºC
V
DD
2.5 V ± 10 %
25 ºC ± 3 ºC
± 5 ppm
1.544 MHz to 9.999 MHz
7 mA Max
10.000 MHz to 34.999 MHz
8 mA Max
I
DD
Supply Current
35.000 MHz to 49.999 MHz
20 mA Max
50.000 MHz to 100.000 MHz
30 mA Max
Sym
40/60 % (45/55 % Option)
Output Symmetry
At 1/2 V
DD
T
r
10 % V
DD
~ 90 % V
DD
6 ns Max
Rise Time
T
f
90 % V
DD
~ 10 % V
DD
6 ns Max
Fall Time
V
OH
90 % V
DD
Min
Output Voltage
V
OL
10 % V
DD
Max
Output Load
HCMOS Load
30 pF Max (15 pF typ.)
Start-up Time
Ts
10 ms Max
Pin 1, tri-state function
Pin 1 = H or open.... output active at pin 3
Pin 1 = L..... high impedance at pin 3
* Include: 25 ºC tolerance, operating temperature range, input voltage change, aging, load change, shock and vibration.
SYMBOL
F
O
PARAMETER
Frequency Range
Frequency Stability*
Operating Temperature
Storage Temperature Range
Power Supply Voltage
Aging (First Year)
CONDITION
DIMENSIONS
in inches [millimeters]
***note: A 0.01 µF
bypass
capacitor should
be
placed
between VDD(Pin4)
and GND(Pin2) to minimize power supply line noise
ORDERING INFORMATION
XOSM-532
MODEL
B
FREQUENCY STABILITY
AA = 0.0025 % (25 ppm)
A = 0.005 % (50 ppm)
B = 0.01 % (100 ppm) Standard
R
OTR
Blank = Standard
R = - 40 °C to + 85 °C
E
50 M
ENABLE/DISABLE
FREQUENCY/MHz
E = Disable to Tristate
e4
JEDEC
LEAD (Pb)-FREE
STANDARD
GLOBAL PART NUMBER
X
O
MODEL
