LFXTAL027953BULK datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> LFXTAL027953BULK

LFXTAL027953BULK: DescriptionParallel - Fundamental Quartz Crystal, 8MHz Nom; CategoryPassive components Crystal/resonator; File Size380KB，1 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFXTAL027953BULK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFXTAL027953BULK	-	-	View	Buy Now

LFXTAL027953BULK Overview

Parallel - Fundamental Quartz Crystal, 8MHz Nom

LFXTAL027953BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8339659533
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Other features	BULK
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	8 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L7.5XB5.2XH1.4 (mm)/L0.295XB0.205XH0.055 (inch)
Series resistance	80 Ω
surface mount	YES

Preview

Download Datasheet

View All

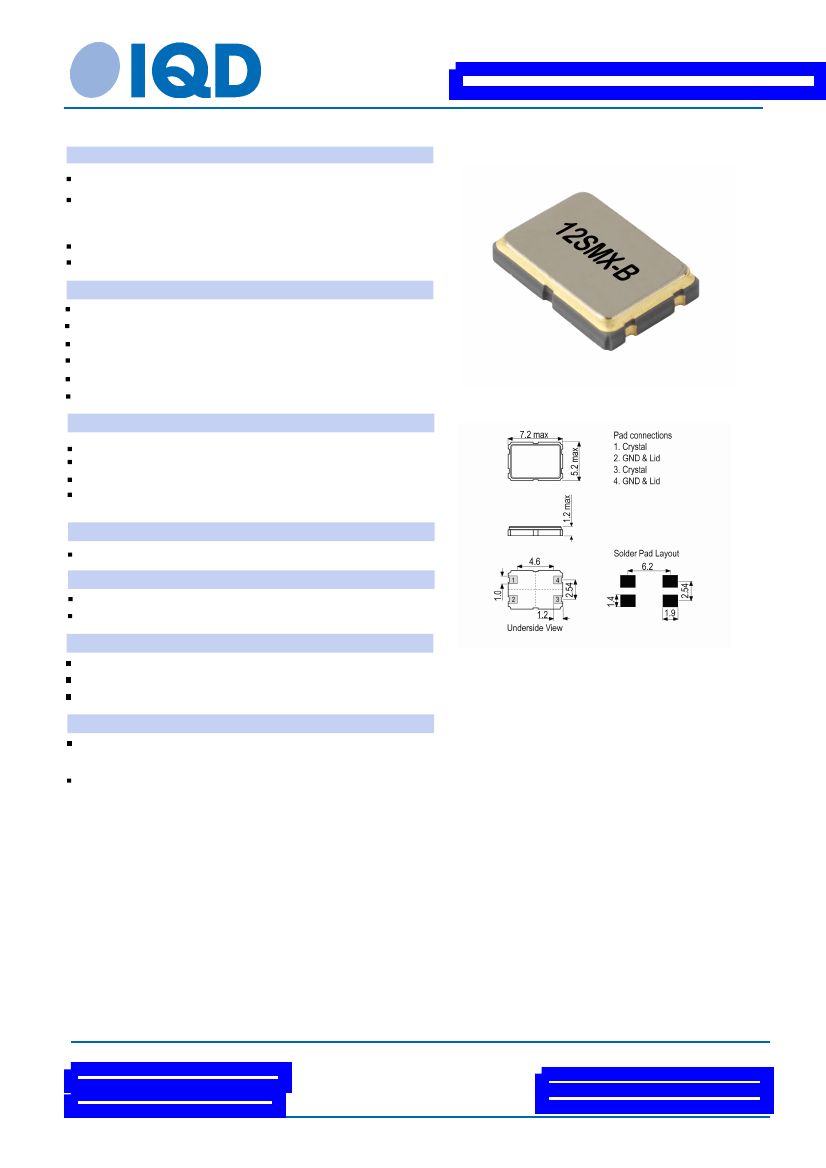

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL027953Bulk

Customer Part:

Description

Standard 7 x 5mm SMD crystal

4 pad (metal lid)

A ceramic package with a seam sealed metal lid, hermetically

sealed. 4 pad device metal lid.

Model

12SMX-B

Model Issue number

Frequency Parameters

Frequency

Frequency Tolerance

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

8.0MHz

±30.00ppm

±50.00ppm

-10.00 to 60.00°C

Fundamental

±5ppm per year max

Outline (mm)

Load Capacitance

Shunt Capacitance

Drive Level

ESR

Environmental Parameters

18.00pF

7pF max

100µW max

80.00Ω max

Storage Temperature Range: -40 to 125°C

Manufacturing Details

RoHS Terminations

RoHS Reflow Temp

Compliance

NiAu

260degC 10s

RoHS Status (2015/863/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

USA: +1.760.318.2824

Printed on 3 Mar 22 20:23 using Part Data Sheet V1.0019
