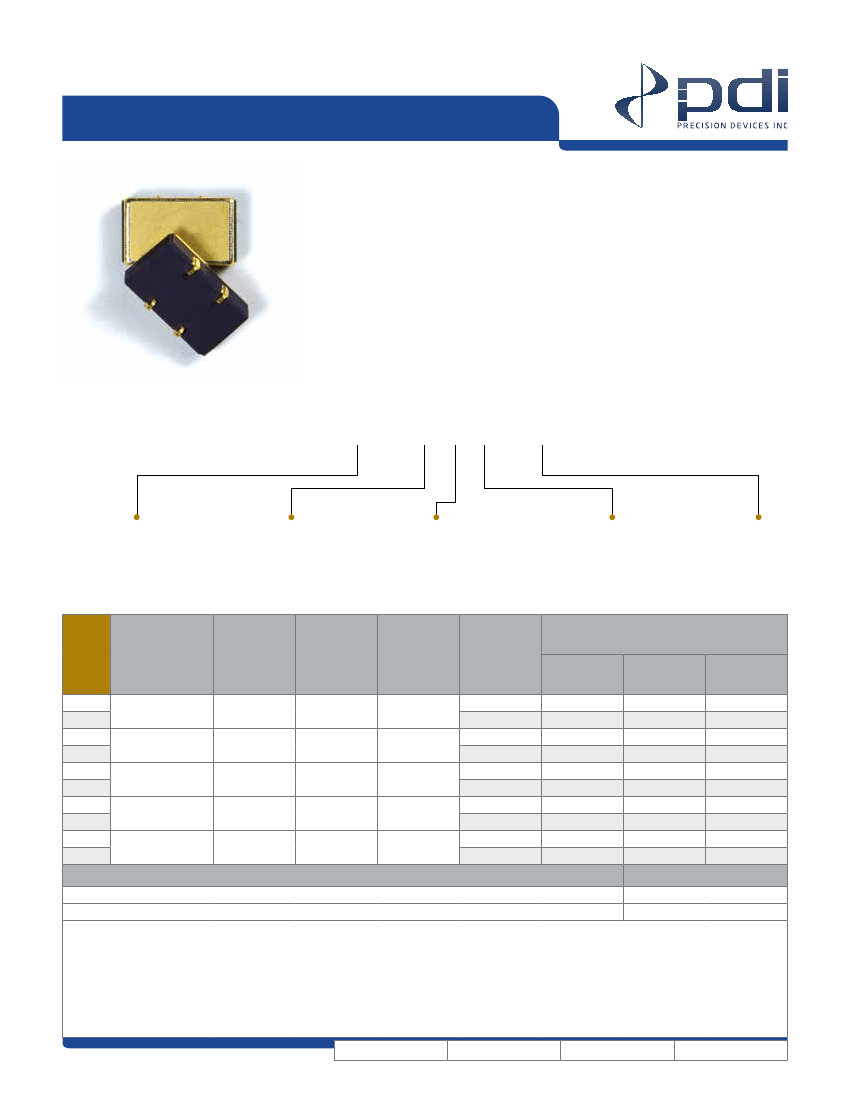

MIL-55310/30-Series Specifications
14.22L x 9.60W x 4.78H (mm)
PDI
MIL-PRF-55310/30
Oscillators are available in both standard and custom
frequencies to provide precision timing in a hermetically sealed package for
military and space applications. PDI provides quick-turn sampling for your
proto-typing needs, mass production capability, and competitive pricing.
ex)
M55310/30—B—01—A—7M000000
MILITARY SLASH SHEET
PRODUCT LEVEL
B
= Hi-Rel
C
= Commercial
S
= Space
DASH NUMBER
See Chart Below
OPERATING TEMPERATURE
A
= -55 to +125°C
B
= -55 to +105°C
C
= -20 to +70°C
XXXXXXXX
Specified
Nominal
Frequency
Dash
No.
Package
01
04
11
14
21
24
31
34
41
44
Frequency
Range
MHz
1.544000 –
14.999999
15.000000 –
29.999999
30.000000 –
59.999999
60.000000 –
85.000000
85.000000 –
100.000000
Supply
Current
mA Max.
8
10
20
30
30
Rise/Fall
Times
nS Max.
10
10
5
3
3
Duty
Cycle
@ 1.4 Vdc
45 – 55
45 – 55
40 – 60
40 – 60
40 – 60
Tolerance
@ 23°C
ppm Max
±15
±25
±15
±25
±15
±25
±15
±25
±15
±25
(A)
±50
±100
±50
±100
±50
±100
±50
±100
±50
±100
Operating Temperature
(B)
±40
±80
±40
±80
±40
±80
±40
±80
±40
±80
(C)
±25
±50
±25
±50
±25
±50
±25
±50
±25
±50
Aging Per Year (Max.)
Per 30 Days
Per 90 Days
NOTES:
All product supplied in anti-static packaging.
At +70°C ± 2.0°C, intervals not more than every 72 hours for a minimum of 30 days.
The product described in this spec. consist of this specification and MIL-PRF-55310.
Decimal
XXX = ± .008, XX = ± .020
Metric
[XXX = ± .20], [XX = ± .50]
Specifications subject to change without notice, last updated 4/1/1 3.
REV:
NA
SIZE:
A
CAGE:
A
10 ppm
±1.5 ppm
±3.0 ppm
1
of
3
MIL-55310/30-Series
14.22 x 9.60 x 4.78
(mm)
Frequency Range
1.544000 to 100.000000 MHz
Per Chart
Per Chart
Per Chart
±4.0
10 Per Year
±1.5
±3.0
Per Chart
Per Chart
- 62 to +125
+3.3
CMOS
90
10
°C
Vdc
Vdd
Vdc
Parameter
vs Temperature (Max.)
-20 to +70°C (Type C)
-55 to +105°C (Type B)
-55 to +125°C (Type A)
vs Supply Voltage (Max. for a 10% charge)
vs Aging (@ +70°C ± 2.0°C) (Max.)
Per 30 Days
Per 90 Days
Tolerance (@ +23°C ± 1.0°C) (Max.)
Within 30 Days of Shipment
Temperature Range
Supply Voltage
Output
Logic Levels
Enable/Disable
Operating
Storage
±10.0 %
High (Min.)
Low (Max.)
Output Disable ≤ 0.3 Vdc
Output Enabled ≥ 2.0 Vdc or Open
Units
Frequency Stability
ppm
Test Inspection
Internal Visual
Stabization bake (prior to seal) 1/
Thermal Shock
Temperature Cycling
Constant Acceleration
Seal (Fine and Gross Leak) 2/
Particle Impact Noise Detection (PIND)
Electrical Test:
Input Current Power
Output Waveform
Output Voltage-Power
As Specified
Burn-In (Load)
See 4.4.1
Product Level
S
Method Condition
MIL-STD-883, method 1011,
Condition C (+150°C) 48 hours min.
MIL-STD-883, method 1011,
Condition A
MIL-STD-883, method 1010
Condition B
MIL-STD-883, method 2001.
Condition A, Y1 only (5000 g’s)
See 4.8.2.2.2
MIL-STD-883, method 2020
Condition B
4.8.5
4.8.20
4.8.21
3.1
+125C, nominal supply voltage and
burn-in load, 240 hours minimum
Nominal and extreme supply voltages,
specified load, +23°C and temperature ex-
tremes, record all test parameters
by serial number
4.8.5
4.8.20
4.8.21
3.1
MIL-STD-883, method 2020
REV:
NA
SIZE:
A
Product Level
B
&
C
Method Condition
See 4.4.1
MIL-STD-883, method 1011,
Condition C (+150°C) 48 hours min.
N/A
MIL-STD-883, method 1010
Condition B
MIL-STD-883, method 2001.
Condition A, Y1 only (5000 g’s)
See 4.8.2.2.2
N/A
N/A
N/A
N/A
3.1
+125C, nominal supply voltage and
burn-in load, 160 hours minimum
Nominal supply voltages, specified
load, +23°C and verify frequency
at the temperature extremes
4.8.5
4.8.20
4.8.21
3.1
N/A
CAGE:
A
Electrical Test:
Input Current Power
Output Waveform
Output Voltage-Power
As Specified
Radiographic 3/
2
of
3
