830017146 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> 830017146

830017146: DescriptionParallel - Fundamental Quartz Crystal, 20MHz Nom, HC49/4HSMX, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size2MB，1 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric View All

830017146 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	830017146	-	-	View	Buy Now

830017146 Overview

Parallel - Fundamental Quartz Crystal, 20MHz Nom, HC49/4HSMX, SMD, 2 PIN

830017146 Parametric

Parameter Name	Attribute value
Objectid	8338884846
package instruction	HC49/4HSMX, SMD, 2 PIN
Reach Compliance Code	compliant
Other features	TR
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	30 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	20 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L11.4XB4.9XH4.3 (mm)/L0.449XB0.193XH0.169 (inch)
Series resistance	40 Ω
surface mount	YES

Preview

Download Datasheet

View All

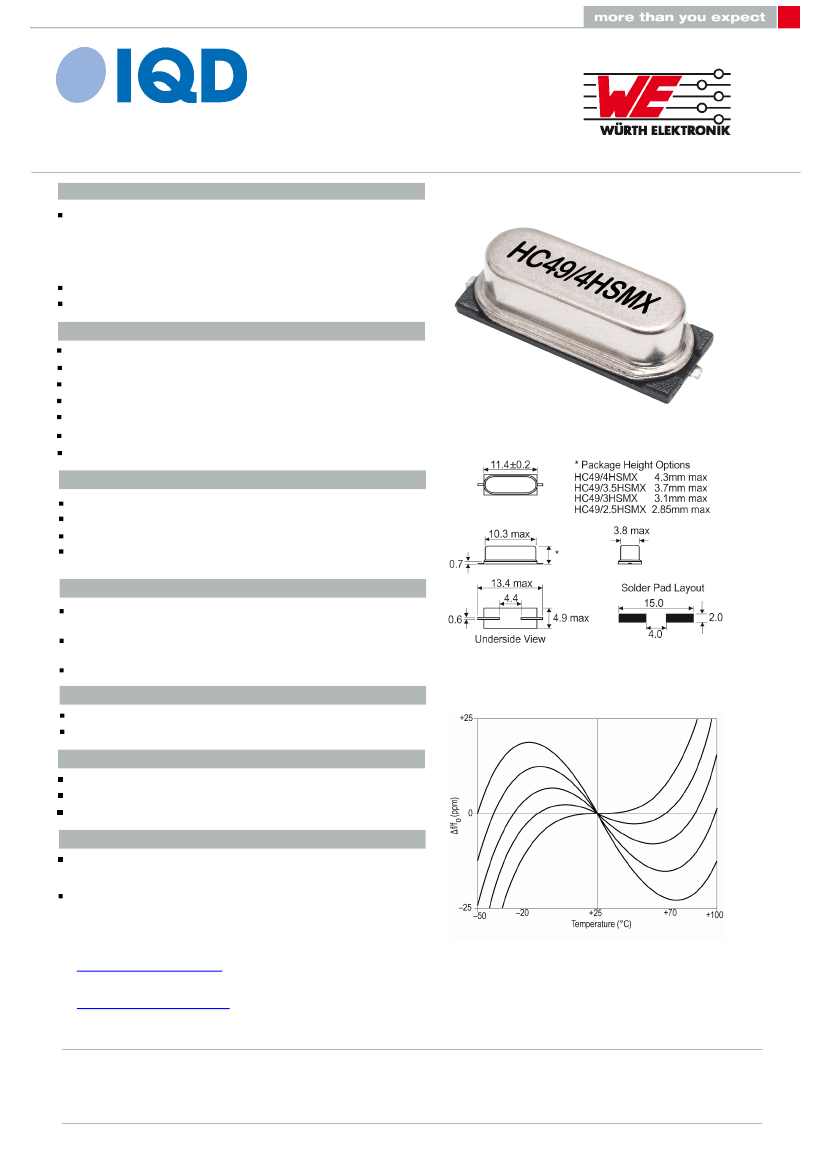

Quartz Crystal Specification

IQD Part No. + Packaging: LFXTAL017146Reel

Wurth Part No.

830017146

Description

Industry standard SMD crystal

Resistance welded, hermetically sealed in an inert atmosphere,

glass to metal seals on leads

Lead wires are mounted onto a plastic former to create a gull

wing mount

Model

HC49/4HSMX

Model Issue number

Frequency Parameters

Frequency

Frequency Tolerance

Tolerance Condition

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

20.0MHz

±30.00ppm

@ 25°C ±2°C

50.00ppm

-10.00 to 60.00°C

Fundamental

±5ppm typ per year @ 25°C

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

30.00pF

7pF max

500µW max

40.00Ω max

Shock: 981m/s², 6ms, 3 times in each of 3 mutually

perpendicular planes

Vibration: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz,

98.1m/s², 30mins in 3 mutually perpendicular planes

Storage Temperature Range: -55 to 125°C

Manufacturing Details

Typical Frequency vs Temperature Curves

RoHS Terminations

RoHS Reflow Temp

Compliance

SnAgCu or Sn

260degC 10s

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

USEFUL LINKS

Toolbox:

www.we-online.com/toolbox

Product Catalog:

www.we-online.com/products

CONTACT INFORMATION:

Würth Elektronik eiSos GmbH & Co. KG

Max-Eyth-Str. 1, 74638 Waldenburg, Germany

Tel: +49(0) 7942 945-0

Printed on 9 Nov 18 10:38 using WE Part Data Sheet V1.00018

Email: eiSos@we-online.de

Web: www.we-online.com

Page 1 of 1
