RMC1/26981%A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RMC1/26981%A

RMC1/26981%A: DescriptionRESISTOR, METAL GLAZE/THICK FILM, 0.75W, 1%, 100ppm, 698ohm, SURFACE MOUNT, 2010, CHIP; CategoryPassive components The resistor; File Size238KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/

Download Datasheet Parametric View All

RMC1/26981%A Overview

RESISTOR, METAL GLAZE/THICK FILM, 0.75W, 1%, 100ppm, 698ohm, SURFACE MOUNT, 2010, CHIP

RMC1/26981%A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1616240599
package instruction	CHIP
Reach Compliance Code	not_compliant
ECCN code	EAR99
structure	Chip
JESD-609 code	e0
Manufacturer's serial number	RMC
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	0.55 mm
Package length	5 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	2.5 mm
method of packing	BULK
Rated power dissipation(P)	0.75 W
Rated temperature	70 °C
resistance	698 Ω
Resistor type	FIXED RESISTOR
series	RMC1/2(1%)
size code	2010
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	200 V

Preview

Download Datasheet

View All

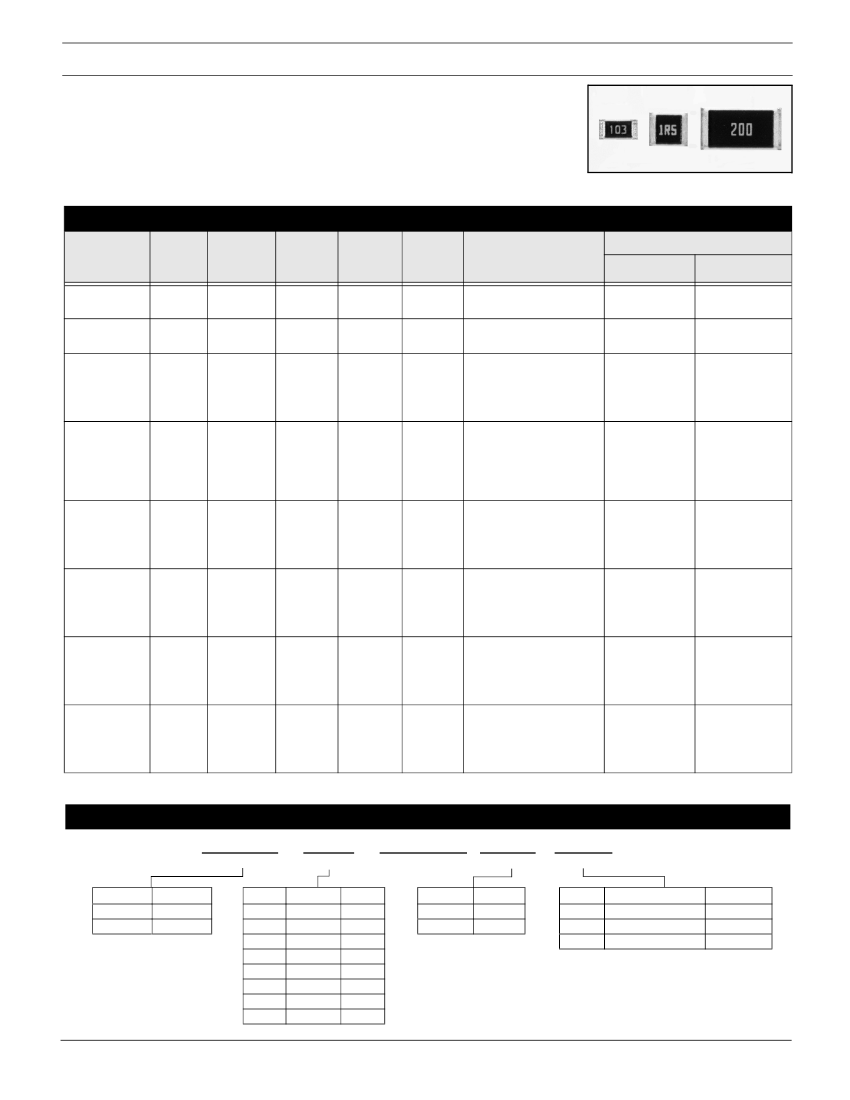

RMC Series — General Purpose Thick Film Chip Resistors

Features

• Nickel barrier terminations standard

• Power derating from 100% at 70°C to

zero at +150°C

• Operating temp range from -65°C to +150°C

• Zero ohm available (max resistance 0.05Ω)

• RoHS compliant/ lead-free available (RMCF)

Electrical Specifications

Type

Package

Type

Power

Rating

(Watts)

@ 70°C

0.05W

0.063W

Maximum

Working

Voltage*

Maximum

Overload

Voltage

100

Max.

Current

Resistance Temperature

Coefficient

±300 ppm/°C

±200 ppm/°C

±350 ppm/°C

±200 ppm/°C

500 ppm/°C, ±350 ppm/°C

±350 ppm/°C

±200 ppm/°C

±100 ppm/°C

±350 ppm/°C

±250 ppm/°C

500 ppm/°C, ±350 ppm/°C

±350 ppm/°C

±200 ppm/°C

±100 ppm/°C

±350 ppm/°C

500 ppm/°C, ±350 ppm/°C

±350 ppm/°C

±200 ppm/°C

±100 ppm/°C

±350 ppm/°C

500 ppm/°C, ±350 ppm/°C

±350 ppm/°C

±200 ppm/°C

±100 ppm/°C

±350 ppm/°C

500 ppm/°C, ±350 ppm/°C

±350 ppm/°C

±200 ppm/°C

±100 ppm/°C

±350 ppm/°C

500 ppm/°C, ±350 ppm/°C

±350 ppm/°C

±200 ppm/°C

±100 ppm/°C

±350 ppm/°C

Ohmic Range and Tolerance

10Ω – 97.6Ω

100Ω – 1M

1Ω – 9.76Ω

10Ω – 10M

1Ω – 2.37Ω

2.43Ω – 9.76Ω

10Ω – 97.6Ω

100Ω – 1M

1.02M – 4.64M

0.1Ω – 0.294Ω

0.3Ω – 2.37Ω

2.43Ω – 9.76Ω

10Ω – 97.6Ω

100Ω – 1M

1.02M – 10M

0.1Ω – 2.37Ω

2.43Ω – 9.76Ω

10Ω – 97.6Ω

100Ω – 1M

1.02M – 10M

0.1Ω – 2.37Ω

2.43Ω – 9.76Ω

10Ω – 97.6Ω

100Ω – 1MΩ

1.02M – 10M

0.1Ω – 2.37Ω

2.43Ω – 9.76Ω

10Ω – 97.6Ω

100Ω – 1M

1.02M – 10M

0.1Ω – 2.37Ω

2.43Ω – 9.76Ω

10Ω – 97.6Ω

100Ω – 1M

–

10Ω – 91Ω

100Ω – 1M

1Ω – 9.1Ω

10Ω – 10M

1Ω – 2.2Ω

2.4Ω – 9.1Ω

10Ω – 1M

–

1.1M – 22M

0.1Ω – 9.1Ω

1Ω – 2.2Ω

2.4Ω – 9.1Ω

10Ω – 1M

–

1.1M – 22M

0.1Ω – 2.2Ω

2.4Ω – 9.1Ω

10Ω – 1M

–

1.1M – 24M

0.15Ω – 2.2Ω

2.4Ω – 9.1Ω

10Ω – 1M

–

1.1M – 22M

0.1Ω – 2.2Ω

2.4Ω – 9.1Ω

10Ω – 1M

–

1.1M – 22M

0.1Ω – 2.2Ω

2.4Ω – 9.1Ω

10Ω – 1M

–

1.1M – 22M

RMC 1/20

RMC 1/16S

0201

0402

1 Amp

RMC 1/16

0603

0.1W

100

1 Amp

RMC 1/10

0805

0.125W

150

300

2 Amp

RMC 1/8

1206

0.25W

200

400

2 Amp

RMC 1/4

1210

0.33W

200

400

3 Amp

RMC 1/2

2010

0.75W

200

400

3 Amp

RMC 1

2512

200

400

3 Amp

* Lesser of

√

PR or maximum working voltage.

How to Order

RMC

SEI Type

RMC

RMCF

Description

Standard

RoHS

Code

1/20

1/16S

1/16

1/10

1/8

1/4

1/2

1/16

Code

Wattage

0.05W

0.063W

0.1W

0.125W

0.25W

0.33W

0.75W

Size

0201

0402

0603

0805

1206

1210

2010

2512

4.7K

Nominal Resistance

Tolerance

Values

E96,E24

E24

Packaging

Code

Description

7" reel - Paper

10" reel - Paper

Bulk

See page 77 for exceptions

Pkg Qty

5,000

10,000

1,000

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

email: marketing@seielect.com
