W019-0903-121-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> W019-0903-121-Z

W019-0903-121-Z: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking Mech, Receptacle; CategoryThe connector The connector; File Size252KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

W019-0903-121-Z Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking Mech, Receptacle

W019-0903-121-Z Parametric

Parameter Name	Attribute value
Objectid	304396956
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.224 inch
subject depth	0.55 inch
body length	0.9 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	W019
Plug contact pitch	0.1 inch
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

# of Contacts

ELECTRICAL:

CURRENT RATING: 3A AC, DC

VOLTAGE RATING: 250V AC MAX.

OPERATING TEMPERATURE: -25 ° TO +85 °C

CONTACT RESISTANCE: 20 MILLIOHM MAX.

INSULATION RESISTANCE: 1000 MEGAOHM MIN.

VOLTAGE WITHSTANDING: 1000V AC / MINUTE

MATERIAL:

CONTACT MATERIAL: COPPER ALLOY

WAFER MATERIAL: NYLON 6/6 UL 94V-2

PACKAGING: 1,000 Pcs/ Bag

HOW TO ORDER:

RoHS COMPLIANT

NUMBER OF CONTACTS:

02THRU15

CONTACT PLATING

1-TIN PLATED

2-GOLDFLASH

3 - 10u" GOLD

5 - 30u" GOLD

Rev

Issued

Drawn Checked Approved

Date

S.M.

5/31/07

B.S.

SMP TECHNOLOGY, INC.

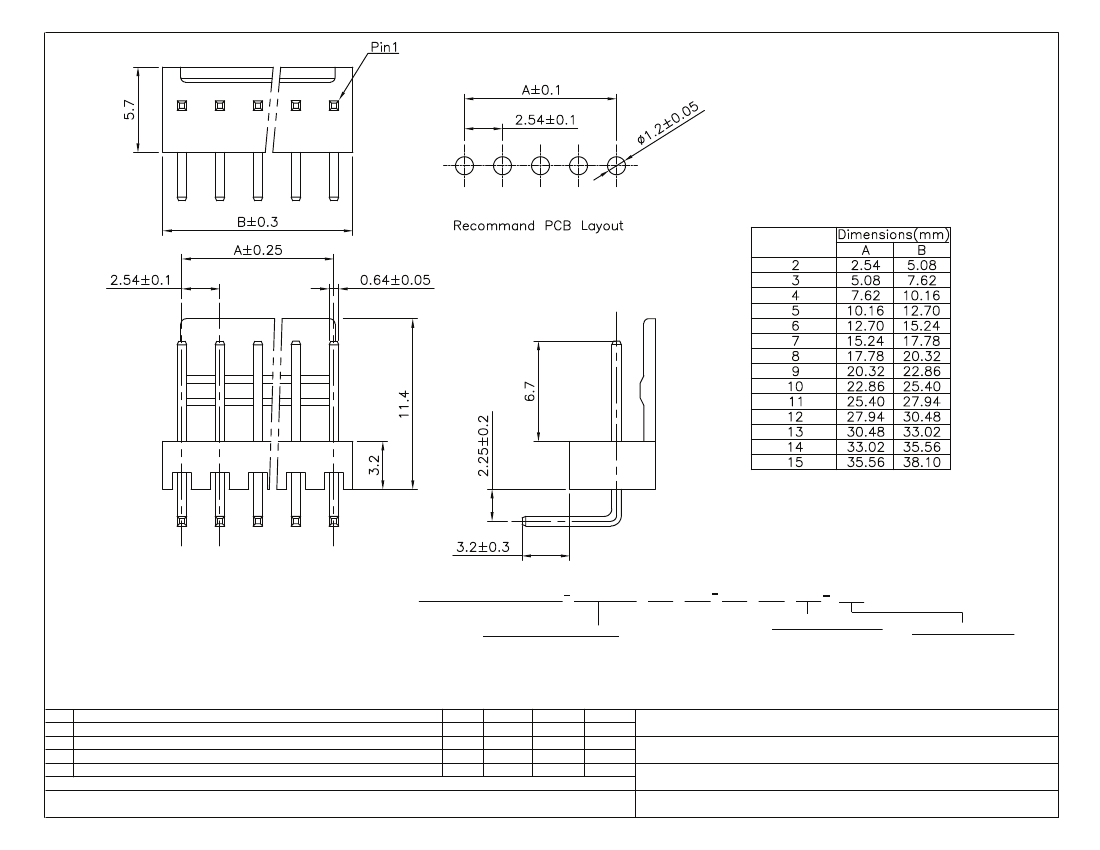

2 . 5 4 m m P i t c h , R i g h t A n g l e , I n v e r t e d , L o c k i n g Ty p e

SCALE:

N/A

TOL. DEC.

.X +/- 0.3

.XX +/- 0.2

.XXX +/- 0.1

ANGLE +/-

UNIT: mm

SERIES: W019-XX03-12X-Z

Pg: 1
