LQG18HH12NJ00J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LQG18HH12NJ00J

LQG18HH12NJ00J: Description1 ELEMENT, 0.012 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size64KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LQG18HH12NJ00J Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LQG18HH12NJ00J	-	-	View	Buy Now

LQG18HH12NJ00J Overview

1 ELEMENT, 0.012 uH, GENERAL PURPOSE INDUCTOR, SMD

LQG18HH12NJ00J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	CHIP, 0603
Reach Compliance Code	compli
ECCN code	EAR99
Samacsys Descripti	LQG18HH_00 Series Inductor 12nH ±5% 0603 (1608)
DC Resistance	0.3 Ω
Nominal inductance(L)	0.012 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	1.1 mm
Package length	1.6 mm
Package form	SMT
Package width	0.8 mm
Minimum quality factor (at nominal inductance)	12
Maximum rated current	0.6 A
Guideline	AEC-Q200
self resonant frequency	2200 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	5%

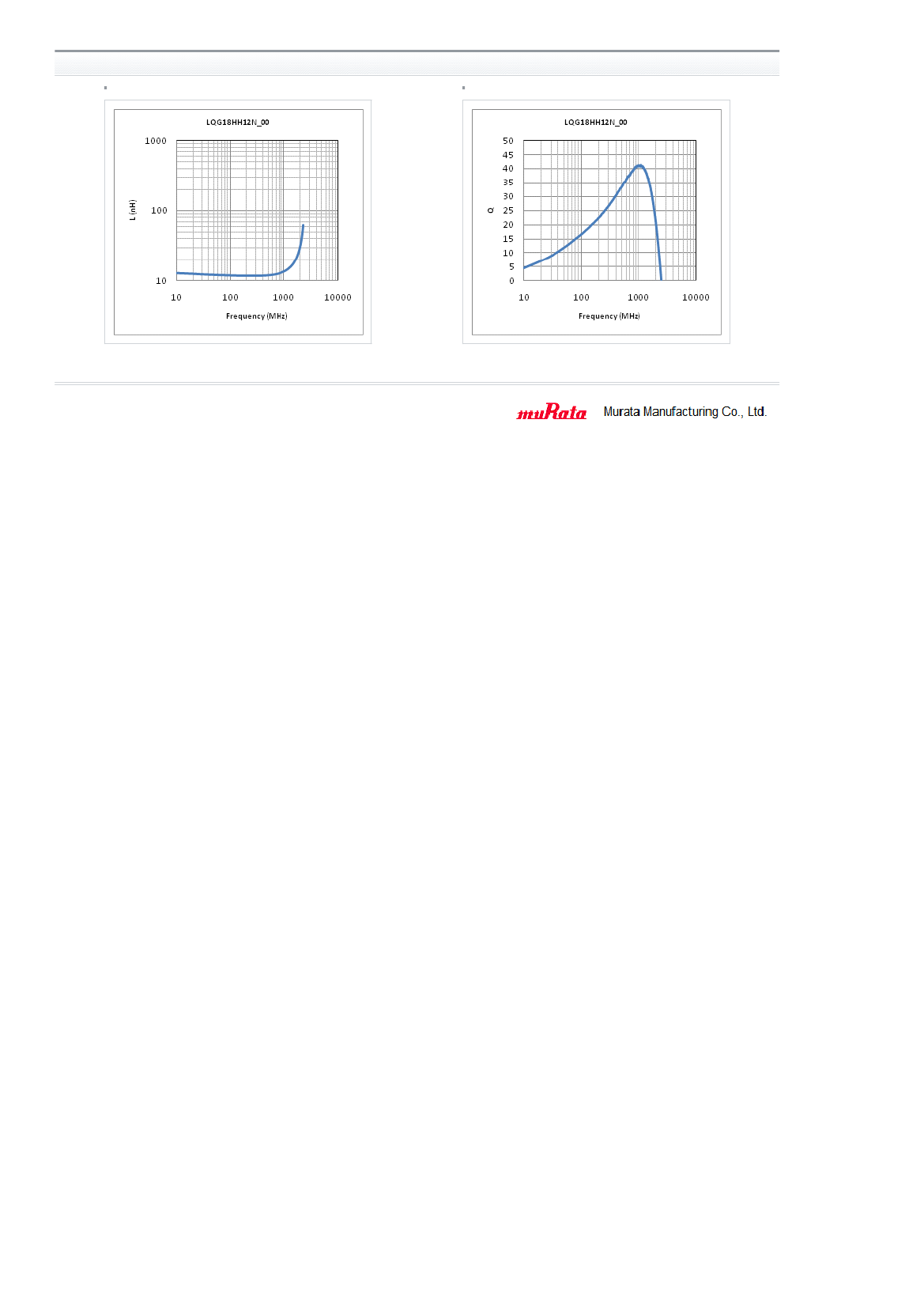

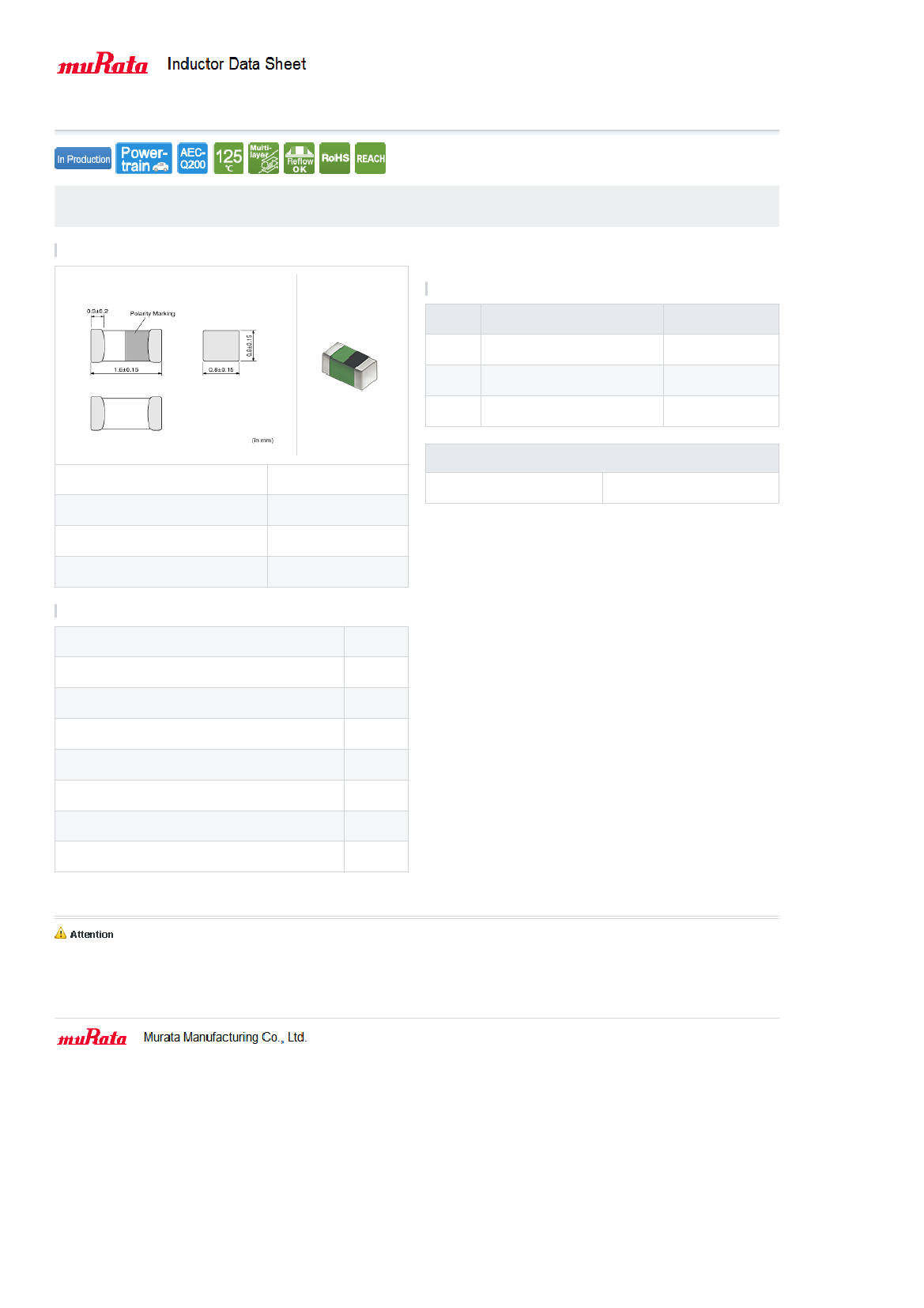

Preview

Download Datasheet

View All

LQG18HH12NJ00#

# indicates a package specification code.

< List of part numbers with package codes >

LQG18HH12NJ00D , LQG18HH12NJ00J , LQG18HH12NJ00B

Shape

References

Packaging

code

Specifications

φ180mm Paper taping

φ330mm Paper taping

Packing in bulk

Minimum quantity

4000

10000

1000

Mass (Typ.)

L size

W size

T size

Size code in inch (mm)

1.6 ±0.15mm

0.8 ±0.15mm

0603 (1608)

1 piece

0.003g

Specifications

Inductance

Inductance test frequency

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Q (min.)

Q test frequency

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise is not included)

12nH ±5%

100MHz

600mA

0.30Ω

100MHz

2200MHz

-55∼125℃

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/04/21

LQG18HH12NJ00J Related Products

	LQG18HH12NJ00J	LQG18HH12NJ00	LQG18HH12NJ00B
Description	1 ELEMENT, 0.012 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.012 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.012 uH, GENERAL PURPOSE INDUCTOR, SMD
Is it lead-free?	Lead free	-	Lead free
Is it Rohs certified?	conform to	-	conform to
Maker	Murata	-	Murata
package instruction	CHIP, 0603	-	CHIP, 0603
Reach Compliance Code	compli	-	compli
ECCN code	EAR99	-	EAR99
Samacsys Descripti	LQG18HH_00 Series Inductor 12nH ±5% 0603 (1608)	-	LQG18HH_00 Series Inductor 12nH ±5% 0603 (1608)
DC Resistance	0.3 Ω	-	0.3 Ω
Nominal inductance(L)	0.012 µH	-	0.012 µH
Inductor Applications	RF INDUCTOR	-	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	-	e3
Number of functions	1	-	1
Number of terminals	2	-	2
Maximum operating temperature	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-	-55 °C
Package height	1.1 mm	-	1.1 mm
Package length	1.6 mm	-	1.6 mm
Package form	SMT	-	SMT
Package width	0.8 mm	-	0.8 mm
Minimum quality factor (at nominal inductance)	12	-	12
Maximum rated current	0.6 A	-	0.6 A
Guideline	AEC-Q200	-	AEC-Q200
self resonant frequency	2200 MHz	-	2200 MHz
Shape/Size Description	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE
shield	NO	-	NO
surface mount	YES	-	YES
Terminal surface	Tin (Sn)	-	Tin (Sn)
Terminal location	DUAL ENDED	-	DUAL ENDED
Terminal shape	WRAPAROUND	-	WRAPAROUND
Test frequency	100 MHz	-	100 MHz
Tolerance	5%	-	5%
