P
RODUCT
I
NFORMATION
APPLICATIONS:
•
Satellite receiver
•
Data receiver
•
Wide-band front end
RF Components
Group
BSFJ78G05
Satellite Tuner
FEATURES
•
Low Threshold
•
Digital AFT out
•
Standup Package
•
AGC sample out
•
Compact, lightweight design (22 cc)

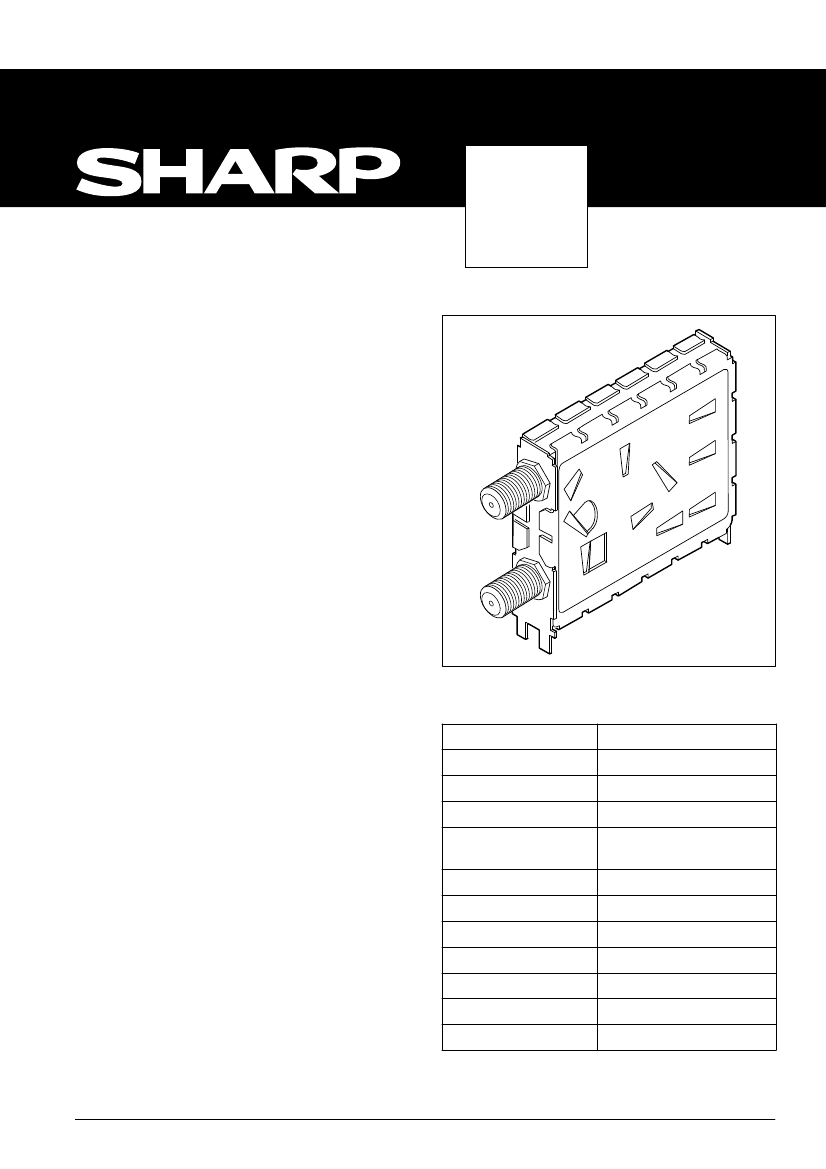

DESCRIPTION
The BSFJ78G05 is an integrated single conversion tuner
and FM demodulator. It was designed for the reception
of analog signals. It has a dual input and a combined
video and audio output. The input frequency range is
900 to 2,150 MHz. A 27/18 MHz switchable bandpass
filter is positioned at the first IF. Bandwidth selection is
made by applying an external voltage of an external pin.
A digital AFT output is provided for evaluation of receiver
system accuracy.
This tuner is controlled by an internal TSA5055 I2C
PLL.
For more information on this product, please contact
your local Sharp representative.
FJ78G05-1A
SPECIFICATIONS
Receiving Frequency Range
Input Level
Input Impedance
Intermediate Frequency
Channel Selection System
Operating Supply Voltage
Operating ODU Voltage
Operating Tuning Voltage
IF Bandwidth
Demodulation System
Input Structure
Prescaler Division Ratio
900 to 2,150 MHz
-60 to -30 dBm
75
Ω
479.5 MHz
Frequency Synthesizer with I2C
TSA5055S (Clock: 4.0 MHz)
5
±0
.3 V
25 V
30
±1
.5 V
27/18 MHz
PLL
F type female
-
P
RODUCT
I
NFORMATION

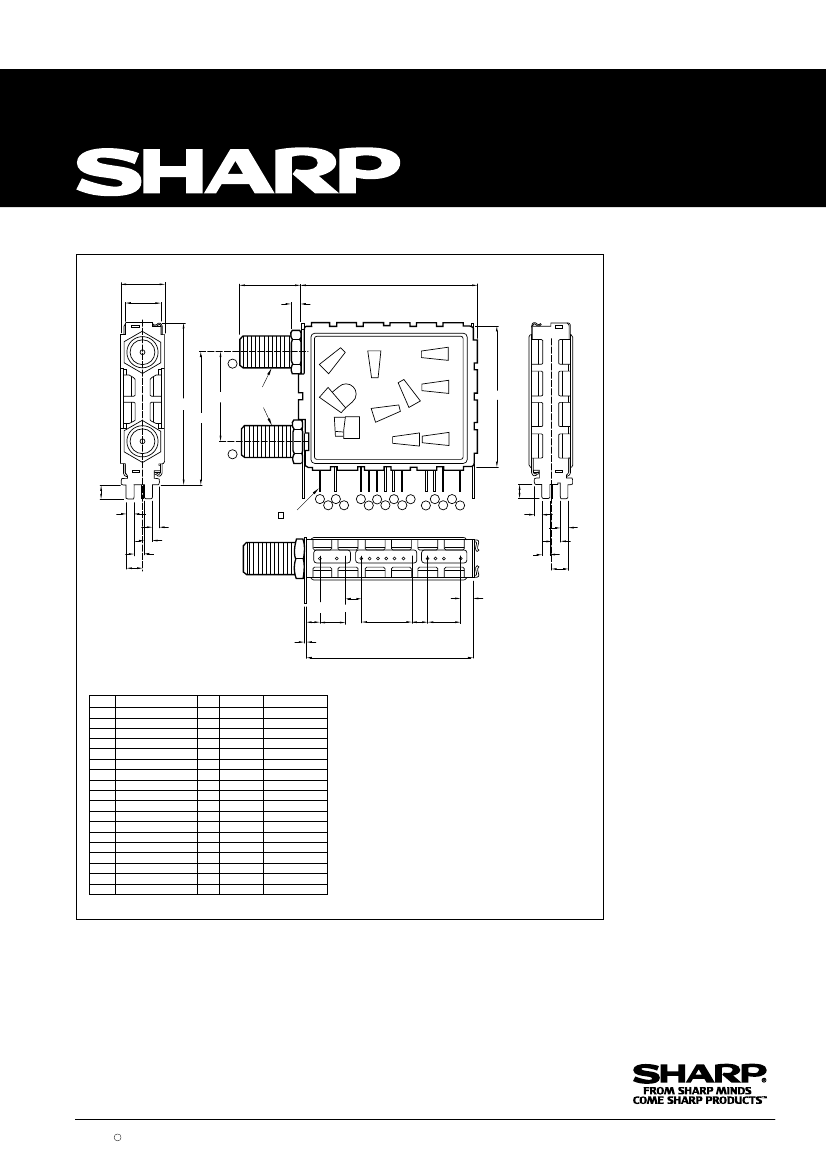

BSFJ78G05 MECHANICAL DIMENSIONS
12.8
10.4
18.0
3.0
52.5
Sharp Electronics
Corporation Regional
Sales Offices
North American
Headquarters
Camas, WA
Ph (360) 834-2500
Fax (360) 834-8903
West
1
46.5
38.0
27.0
3/8-32
UNEF-2A
42.0
Irvine, CA
Ph (714) 250-0225
Fax (714) 250-0438
San Jose, CA
Ph (408) 436-4900
Fax (408) 436-0924
Central
2
4.0
2.2
2.1
2.2
3.1
4.8
0.65
4.0
3
4
5
6
7
8
9
10
11
12
13
15 17
14 16 18
2.1
2.2
3.1
2.2
4.8
5.0
P2.5x3 =
7.5
4.15
0.6
50.3
P2.5x6 =
15.0
P2.5x4 =
5.0 10.0
3.65
Romeoville, IL
Ph (708) 226-2400
Fax (708) 759-8572
Auburn Hills, MI
Ph (810) 377-9220
Fax (810) 377-9222
Austin, TX
Ph (512) 349-7262
Fax (512) 349-7002
DFW Airport, TX
Ph (214) 574-5205
Fax (214) 456-0360
Houston, TX
Ph (713) 955-9909
Fax (713) 955-9910
East
Burlington, MA
Ph (617) 270-7979
Fax (617) 229-9117
Annandale, NJ
Ph (908) 713-0505
Fax (908) 713-0566
Durham, NC
Ph (919) 941-0065
Fax (919) 941-0066
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
NAME
RF INPUT A
RF INPUT B
B1A
B1B
LT
AFT OUT 1
AFT OUT 2
AGC
B2
BASE BAND
SDA
TUN
SCL
P3
I/O
I
I
I
I
I
O
O
O
I
O
I/O
I
I
I
VOLT (V)
NOTE
TO LNB
TO LNB
0~5
DIGITAL AFT
DIGITAL AFT
AGC OUT
+5
BB OUT
Distributors
Future Electronics
Canada
Ph (514) 694-7710
Fax (514) 695-3707
Marshall Industries
El Monte, CA
Ph (800) 522-0084
Fax (818) 307-6173
URL http://www.marshall.com
+30
Milgray
FJ78G05-2
NOTE:
Dimensions are in mm.
Farmingdale, NY
Ph (800) MILGRAY (645-4729)
Fax (516) 293-6465
Reptron
Tampa, FL
Ph (800) 659-1361
Fax (813) 854-2351
Sterling Electronics Corp.
FastFax Service: 1-800-833-9437
Product Information: 1-800-642-0261
World Wide Web Site: http://www.sharpmeg.com
Houston, TX
Ph (800) 745-5500
Fax (713) 629-3939
Copyright c 1996, Sharp Electronics Corp. All rights reserved. All tradenames are the registered property of their respective owners. Specifications are subject to change without notice.
SMT96079
