BF150-024-A-0400-0280-L-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> BF150-024-A-0400-0280-L-D

BF150-024-A-0400-0280-L-D: DescriptionBoard Connector, 24 Contact(s), 3 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size121KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BF150-024-A-0400-0280-L-D Overview

Board Connector, 24 Contact(s), 3 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle,

BF150-024-A-0400-0280-L-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304448394
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.236 inch
subject depth	0.079 inch
body length	0.63 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
Manufacturer's serial number	BF150
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

Global Connector Technology Ltd. - 2.00mm PITCH PIN HEADER, TRIPLE ROW, THROUGH HOLE, VERTICAL

Ordering Grid

BF150

XXX

XXXX

Packing

G = Plastic Box (Standard)

D = Tube

E = Tube with Cap

Insulator Material

L = LCP (Standard)

No. of Contacts

SPECIFICATIONS

规格

06 to 120

CURRENT RATING

电流额定值

: 2 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MΩ Min.

Contact Plating

CONTACT RESISTANCE

接触电阻值

: 20mΩ Max.

A = Gold Flash All Over

DIELECTRIC WITHSTANDING

耐电压

: AC 500 V

B = Selective Gold Flash Contact Area/

OPERATING TEMPERATURE

工½温度

: -55°C TO +105°C

Tin On Tail

CONTACT MATERIAL

端子物料

: PHOSPHOR BRONZE

C = Tin All Over

INSULATOR MATERIAL

绝缘½物料

G = 10µ" Gold Contact Area/Tin On Tail

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94-V0

I = 30µ" Gold Contact Area/Tin On Tail

SOLDERING PROCESS

可焊性

Standard = Gold Flash All Over

LCP (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BF155

BF160

DETAIL

REV

DATE

DRAWING

RELEASE

08/4/07

Dimension D (1/100mm)

(Tail Length)

Standard - 2.80mm = 0280

Or specify Dimension D

e.g. 2.50mm = 0250

TOL.: ±0.2mm

Dimension C (1/100mm)

(Post Height)

Standard - 4.00mm = 0400

Or specify Dimension C

e.g. 2.50mm = 0250

TOL.: ±0.2mm

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°±5°

.X°±3°

X.X ± 0.25

X.XX ± 0.15 .XX°±2°

X.XXX ± 0.10 .XXX°±1°

X. ± 0.30

Third Angle Projection

BF150

Description:-

08 APR 07

RoHS

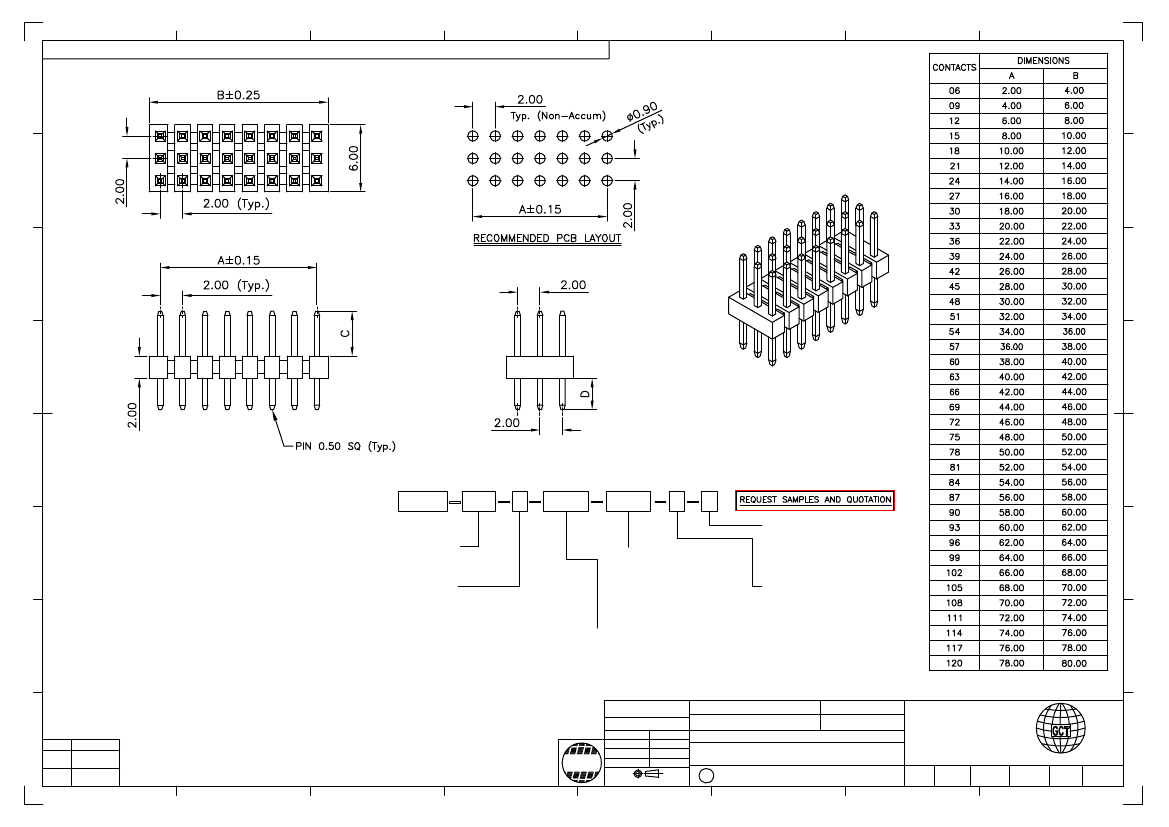

2.00mm PITCH PIN HEADER, TRIPLE ROW,

THROUGH HOLE, VERTICAL

Global

Connector

Technology

Scale

NTS

Sheet No.

E & OE

1/1

www.globalconnectortechnology.com

Material

See Note

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by
