SCO-06350CES-27.000M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> SCO-06350CES-27.000M

SCO-06350CES-27.000M: DescriptionCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size158KB，3 Pages; ManufacturerSunny Electronics Corp; Websitehttp://www.sunny.co.kr

Download Datasheet Parametric View All

SCO-06350CES-27.000M Overview

CMOS Output Clock Oscillator,

SCO-06350CES-27.000M Parametric

Parameter Name	Attribute value
Objectid	7014770211
package instruction	DIP-8/4
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	27 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	12.7mm x 12.7mm x 6.0mm
longest rise time	6 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

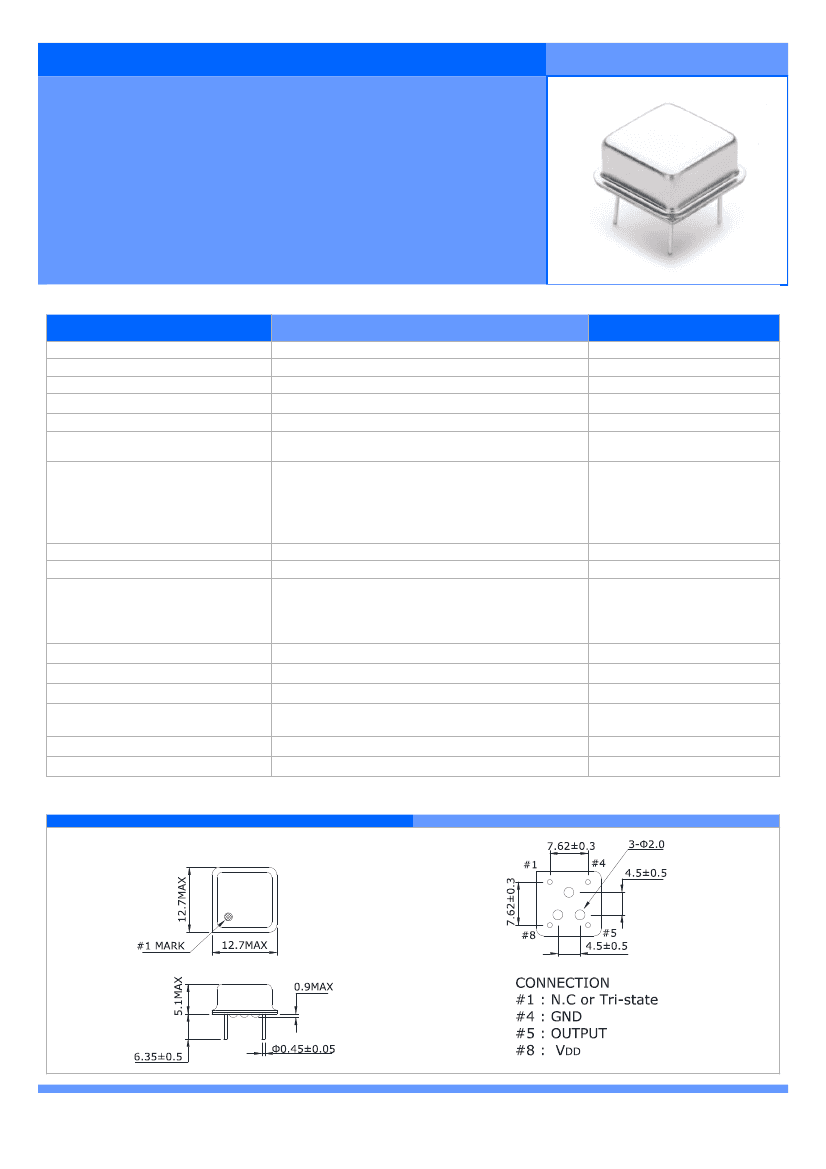

CRYSTAL OSCILLATORS

DIP TYPE

SCO-06

CMOS Output

3.3V, 5.0 V Operating Supply Voltage Range

8 pin DIP Package

Custom Lead Length Options Available

Wide Frequency

All-metal Welded Package

■ ELECTRICAL SPECIFICATIONS

ITEM

Output Logic Type

Frequency Range

Supply Voltage(V

)

Operating Temperature Range

Storage Temperature Range

Frequency Stability

CMOS

1.000 to 200.0 MHz

3.3 V

± 10 %, 5.0 V

± 10 %

0 to +70 ℃, -20 to +70 ℃, -40 to +85 ℃

-55 to +125 ℃

±20 ppm, ±25 ppm, ±50 ppm, ±100 ppm Max.

mA(3.3

V),

25(5.0

40(5.0

60(5.0

70(5.0

80(5.0

Max.

Over operating temperature

range

1.000 to 20.000MHz

20.001 to 40.000MHz

40.001 to 80.000MHz

80.001 to 125.000MHz

125.000 to 200.000MHz

Value

CMOS XO

Remarks

Input Current

Output Voltage Logic High(V

)

Output Voltage Logic Low(V

)

90 % of V

Min.

10 % of V

Max.

10 ns Max.(1.000 to 20.000MHz)

6 ns Max.(20.001 to 70.000MHz)

4 ns Max.(70.0001 to 125.000MHz)

2 ns Max.(125.000 to 200.000MHz)

45 to 55 %, 40 to 60 %

10 ms Max.

15 pF Max.

70 % of V

min. to Enable Output

30 % of V

max. to Enable Output

1 ps Max.

±5 ppm Max.

High Impedance

BW : 12 kHz to 20 MHz

25℃, First year

Measured over

10 % to 90 % of waveform

Measured at 50 % of waveform

Rise / Fall Time

Duty Cycle

Start-up Time

Output Load Condition(CMOS)

Output Enable Function

and V

)

RMS Phase Jitter

Frequency Aging

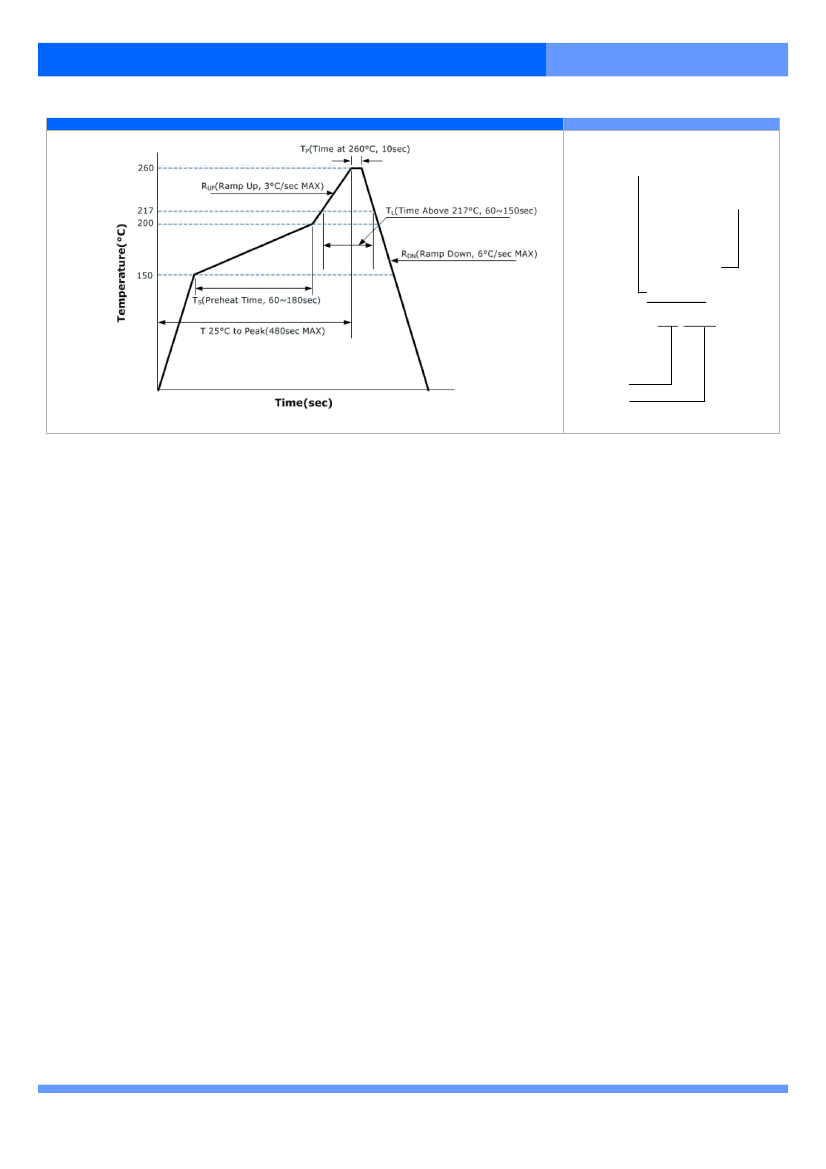

■ MECHANICAL DIMENSIONS

(mm)

http://www.sunny.co.kr

SUNNY ELECTRONICS CORP
