6300-8090: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Locking Mech, Black Insulator, Plug; CategoryThe connector The connector; File Size178KB，2 Pages; ManufacturerElectro-Term/Hollingsworth

Download Datasheet Parametric View All

6300-8090 Overview

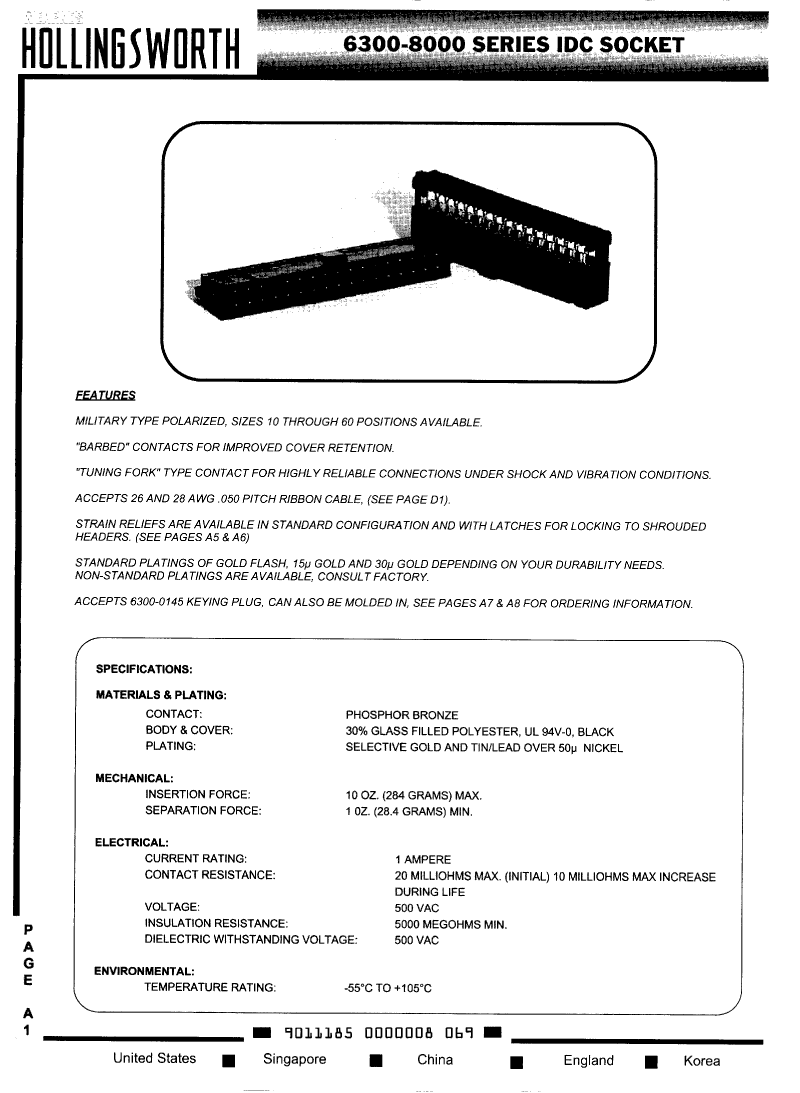

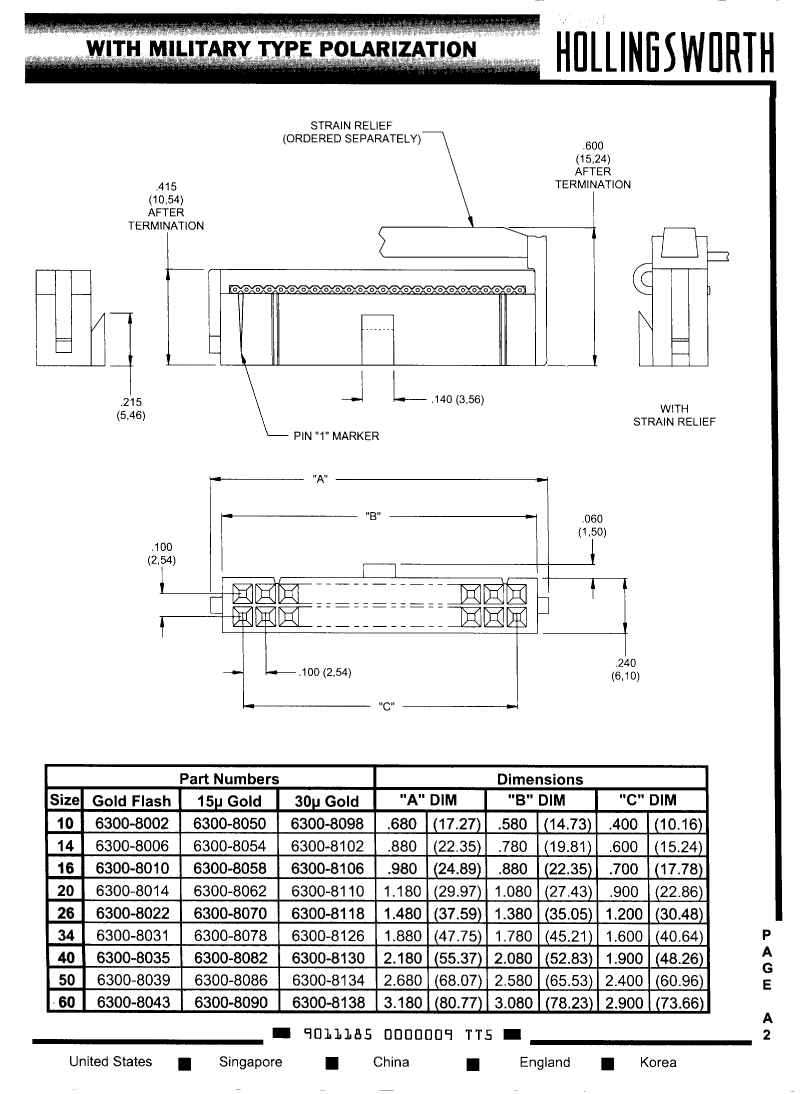

Board Connector, 60 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Locking Mech, Black Insulator, Plug

Parameter Name	Attribute value
Objectid	1166472483
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	AVAILABLE STRAIN RELIEF
body width	0.3 inch
subject depth	0.415 inch
body length	3.18 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	6300-8000
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING MECH
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	15u inch
polarization key	MIL TYP & CENTER
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Total number of contacts	60
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	.278 N
