RN1644992F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RN1644992F

RN1644992F: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 0.0625W, 49900ohm, 50V, 1% +/-Tol, -200,200ppm/Cel, 1206,; CategoryPassive components The resistor; File Size147KB，1 Pages; ManufacturerDUBILIER; Websitehttp://www.dubilier.co.uk/

Download Datasheet Parametric View All

RN1644992F Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.0625W, 49900ohm, 50V, 1% +/-Tol, -200,200ppm/Cel, 1206,

RN1644992F Parametric

Parameter Name	Attribute value
Objectid	997217028
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Chip
Network Type	Isolated
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	3.2 mm
Package form	SMT
Package width	1.6 mm
Rated power dissipation(P)	0.0625 W
resistance	49900 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	RN16
size code	1206
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	-200,200 ppm/°C
Tolerance	1%
Operating Voltage	50 V

Preview

Download Datasheet

View All

SURFACE MOUNT

1/16W Rated

Saves placement time

-55°C - 125°C

Industry standard size

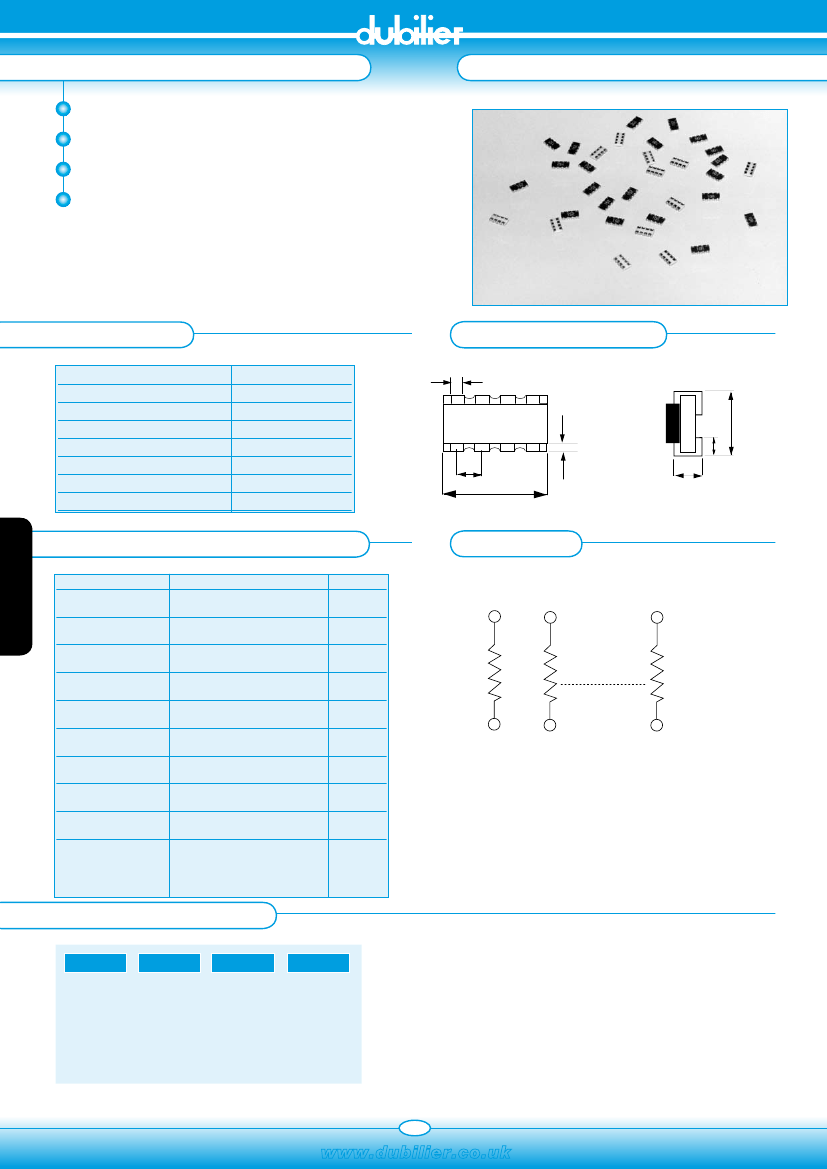

THICK FILM RESISTOR NETWORK RN16

SPECIFICATION

Power rating at 70°

Operating Temp. Range

Derated at zero load at

Maximum Working Voltage

Maximum Overload Voltage

Resistance Range

Temperature Coefficient

Resistance Tolerance

1/16W

-55°C to +125°C

+125°C

50v

100v

10Ω - 1M

±200ppm/°C

±5% and ±1%

0.5±0.15

OUTLINE DRAWING

1.6±0.2

0.5±0.15

0.3±0.15

0.5±0.1

0.8±0.05

3.20±0.2

0.8±0.05

3.20±0.2

0.3±0.15

1.6±0.2

0.3±0.15

Dimensions in mm

0.5±0.1

ENVIRONMENTAL CHARACTERISTICS

Performance Test

Temperature Coefficient

Thermal Shock

Low Temperature Operation

Short Time Overload

High Temperature Exposure

Resistance to Soldering Heat

Moisture Resistance

Life

Solderability

Bending Strength

SCHEMATICS

n=4

SECTION 4

Test Method

MIL-STD-202F, Method 304

—55°C to + 125°C

MIL-STD-202F, Method 107

5 cycles, —55°C to +125°C

MIL-R-55342D, Para.4.7.4

1 hour at —65°C followed by 45 minutes RCWV

MIL-R-55342D, Para.4.7.5

2.5 times RCWV for 5 seconds

MIL-R-55342D, Para.4.7.6

125°C for 100 hours

MIL-R-55342D, Para.4.7.7

Soldered to test board at 260°C for 10 secs

MIL-STD-202F, METHOD 106

10 cycles. Total 240 hours

MIL-STD-202F, Method 108A

1000 hours at 70°C RCWV intermittent

MIL-STD-202F, Method 208

260°C for 10 seconds coverage

JIS-C-5202, Para.6.1.4

Unit mounted in centre of 90mm board

length deflected 5mm in either direction

for 10 seconds

Appraise

±200ppm/°C

±(1%+0.05Ω)

±(2%+0.05Ω)

95% min.

±(1%+0.05Ω)

ORDERING INFORMATION

RN16

Series

No. of

Resistors

102

Value

Tolerance

J = 5%

F = 1%

142

www.dubilier.co.uk
