GSLX-N2S2-88-3.05-G/Y: DescriptionTelecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric View All

GSLX-N2S2-88-3.05-G/Y Overview

Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT

GSLX-N2S2-88-3.05-G/Y Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1874956189
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	SHIELDED
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	TIN
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	GSLX
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	BRASS
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

GSLX-N-88-G/G

Part Number Builder

LR78160

GSLX

Series

N

Options

88

No. of

Positions &

Contacts

Ground

Spacing

G/G

LED Color

Option

Plating

Option

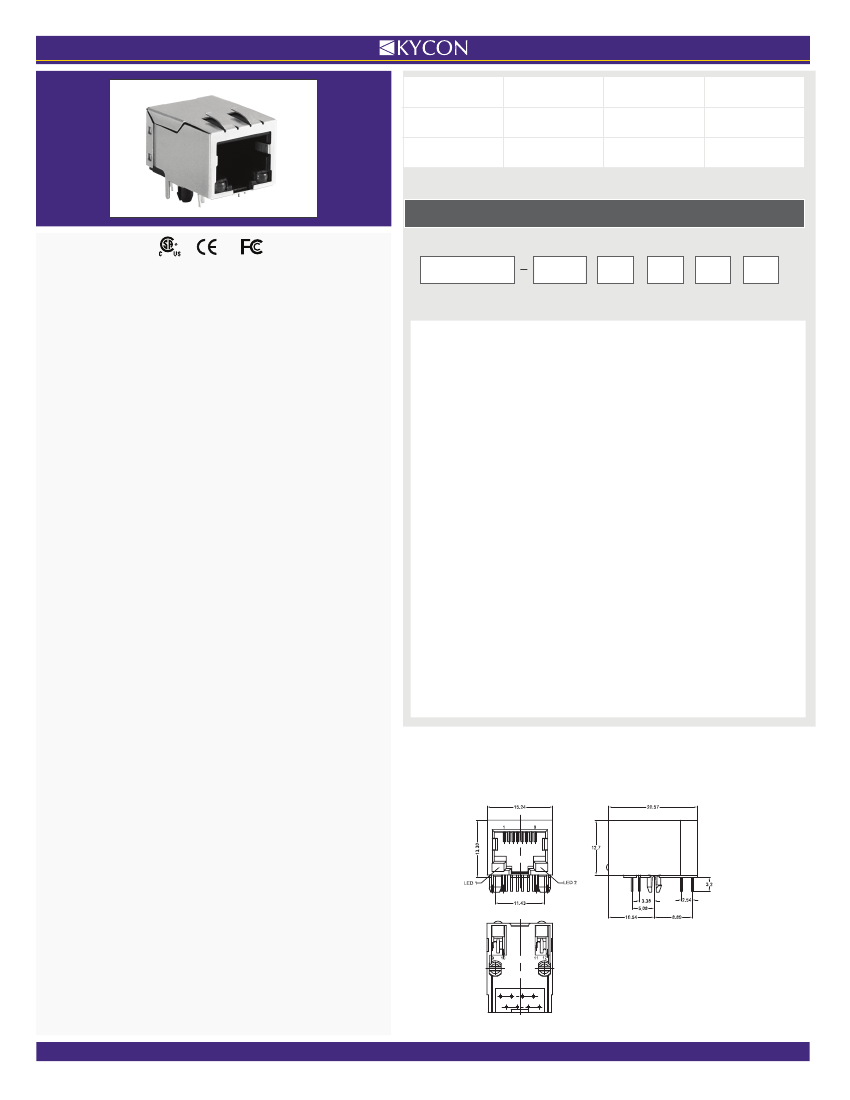

MODULAR JACKS AND PLUGS:

GSLX Series Right Angle

Modular Jack with LED, Tab Down

Series

GSLX

- Right Angle Modular Jack PCB Mount

Options

N

-

Non-Shielded with 3.38mm LED Pin to Peg

N2S

-

Shielded with 3.38mm LED Pin to Peg,

3.05mm Ground Pin Spacing

N1S2

-

Shielded with Top Grounding Tabs 2.79mm LED Pin to Peg,

3.05mm Ground Pin Spacing

N2S2

-

Shielded with Top Grounding Tabs 3.38mm LED Pin to Peg,

3.05mm Ground Pin Spacing

Number of Positions / Contacts

88

- 8 Positions / 8 Contacts

LED Color

G/G

- Green/Green

G/Y

- Green/Yellow

Y/G

- Yellow/Green

Plating Option

Blank

- Gold Flash (Standard)

50

- 50µ" Gold Plating

Product Features

Easy Viewing LEDs to Act as Power/Transmit Indicators

Snap in Retention Tabs

Available Fully Shielded for EMI/RFI Protection

CSA/NRTL Certified File No. LR78160

Materials and Finish

Housing Material

PBT Thermoplastic, UL 94V-0 Rated

Contact Material

Phosphor Bronze

Plating

Gold Plated over Nickel in Contact Area Tin in Solder Area

Shield Material

Brass, Nickel Plated

Performance Specifications

Electrical Characteristics

Current Rating

1.5A

Voltage Rating

125V DC

Contact Kycon for Other Options

GSLX Series

Dimensions in mm

Phone: +1.408.494.0330

l

Fax: +1.408.494.0325

l

WWW.KYCON.COM

l

2013
