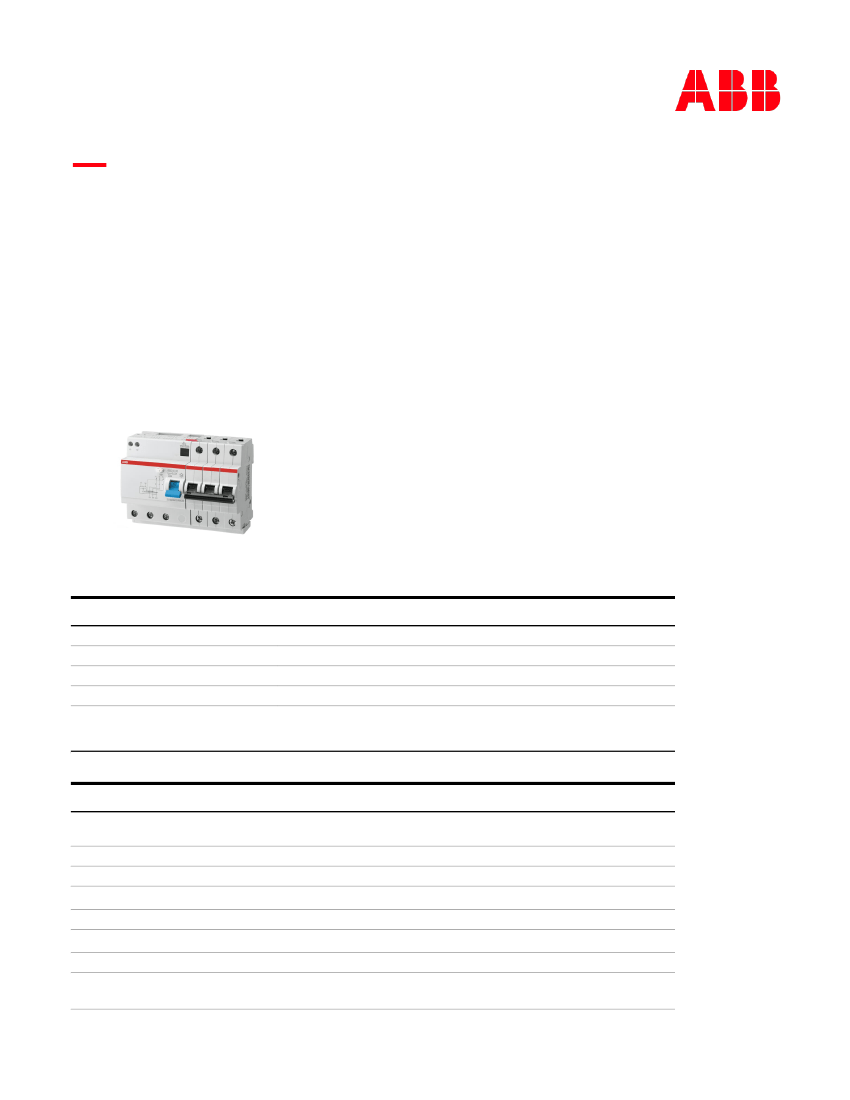

DS203 M AC-C16/0.03
DS203 M AC-C16/0.03 Residual Current Circuit
Breaker with Overcurrent Protection
General Information
Extended Product Type
Product ID
EAN
Catalog Description
Long Description
DS203 M AC-C16/0.03
2CSR273001R1164
8012542852803
DS203 M AC-C16/0.03 Residual Current Circuit Breaker with Overcurrent Protection
The RCBOs DS200 series has the function to protect against overload and short-circuit
currents; protection against the effects of sinusoidal alternating earth fault currents;
protection against indirect contacts and additional protection aganist direct contacts.
Technical
Standards
Tripping Characteristic
Type of Residual Current
Rated Voltage (U
r
)
Rated Operational Voltage
Rated Current (I
n
)
Rated Residual Current
Rated Short-Circuit
Capacity (I
cn
)
Rated Ultimate Short-
IEC/EN 60947-2
IEC/EN 61009-1
C
AC type
400 V AC
400 V AC
16 A
30 mA
(400 V AC) 10 kA
(400 V AC) 15 kA
DS203 M AC-C16/0.03
Circuit Breaking Capacity
(I
cu
)
Maximum Breaking
Capacity
Rated Frequency (f)
Power Loss
Power Supply Connection
Electrical Endurance
Number of Poles
Number of Protected
Poles
Number of Earth Leakage
Circuit Breakers (ELCBs)
Operating Characteristic
Release Type
Options Provided
Accessories Available
Connecting Capacity
10 kA
50/60 Hz
6.6 W
Arbitrary
10000 cycle
3
3
1
Instantaneous
C
None
Yes
Busbar 10 mm²
Rigid 16 ... 25 mm²
Flexible 16 ... 25 mm²
2
Environmental
Ambient Air Temperature
Resistance to Vibrations
acc. to IEC 60068-2-6
Resistance to Shock acc.
to IEC 60068-2-27
Environmental Information
Operation -25 ... +55 °C
Storage -40 ... +70 °C
0.1 mm or 1 g - 20 cycles at 5…150…5 Hz
25g / 2 shocks / 13 ms
Refer to RoHS
Technical UL/CSA
Short-Circuit Current
Rating (SCCR)
30 mA
Dimensions
Product Net Width
Product Net Height
Product Net Depth /
Length
Product Net Weight
122 mm
0.093 m
69 mm
0.610 kg
Container Information
Package Level 1 Units
Package Level 1 Width
Package Level 1 Height
Package Level 1 Depth /
Length
box 1 piece
80 mm
105 mm
100 mm
DS203 M AC-C16/0.03
Package Level 1 Gross
Weight
Package Level 1 EAN
0.655 kg
8012542852803
3
Ordering
Minimum Order Quantity
Customs Tariff Number
Country of Origin
1 piece
85363030
Italy (IT)
Certificates and Declarations (Document Number)
Declaration of Conformity
- CE
Environmental Information
Instructions and Manuals
RoHS Information
9AKK106713A5607
Refer to RoHS
9AKK107045A1451
2CSC423002K2701
Popular Downloads
Data Sheet, Technical
Information
Instructions and Manuals
EPLAN Macro
9AKK107991A8329
9AKK107045A1451
9AKK106930A1227
Classifications
ETIM 7
ETIM 8
EPLAN Catalog Tree
WEEE Category
WEEE B2C / B2B
CN8
Object Classification Code
EC002281 - Distributor assembly with combination RCCB/MCB
EC002281 - Distributor assembly with combination RCCB/MCB
Electrical engineering / Protection devices / Ground fault current circuit breaker
5. Small Equipment (No External Dimension More Than 50 cm)
Business To Consumer
85363030
F
Accessories
DS203 M AC-C16/0.03
Unit Of
Measure
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
4
Identifier
2CDS200909R0001
2CDS200909R0002
2CDS200912R0001
2CDS200922R0001
2CDS200946R0001
2CDS200946R0002
2CDS200946R0003
2CSS200911R0002
2CSS200911R0003
2CSS200911R0004
2CSS200911R0005
2CSS200911R0006
2CSS200998R0001
Description
S2C-A1 Shunt Trip
S2C-A2 Shunt Trip
S2C-H6R Auxiliary Contact
S2C-S/H6R Signal / Auxiliary Contact
S2C-H6-11R Auxiliary Contact
S2C-H6-20R Auxiliary Contact
S2C-H6-02R Auxiliary Contact
Type Quantity
S2C-A1
S2C-A2
S2C-H6R
S2C-S/H6R
S2C-H6-11R
S2C-H6-20R
S2C-H6-02R
1
1
1
1
1
1
1
1
1
1
1
1
1
S2C-UA 24 AC Undervoltage release S2C-UA 24 AC
S2C-UA 48 AC Undervoltage release S2C-UA 48 AC
S2C-UA 110 AC Undervoltage release
S2C-UA 230 AC Undervoltage release
S2C-UA 400 AC Undervoltage release
S2C-BP Mechanical tripping device
S2C-UA 110
AC
S2C-UA 230
AC
S2C-UA 400
AC
S2C-BP
Categories
Low Voltage Products and Systems
→
Modular DIN Rail Products
→
Residual Current Devices RCDs
→
Residual Current Circuit Breakers
with Overcurrent Protection RCBO
