HC1E279M35035HA datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> HC1E279M35035HA

HC1E279M35035HA: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 27000uF, Through Hole Mount; CategoryPassive components capacitor; File Size50KB，3 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/; Environmental Compliance

Download Datasheet Parametric View All

HC1E279M35035HA Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 27000uF, Through Hole Mount

HC1E279M35035HA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2013726493
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	27000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	2.91633 mA
Manufacturer's serial number	HC
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	BOX
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	6740 mA
surface mount	NO
Delta tangent	0.57
Terminal surface	Tin (Sn)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

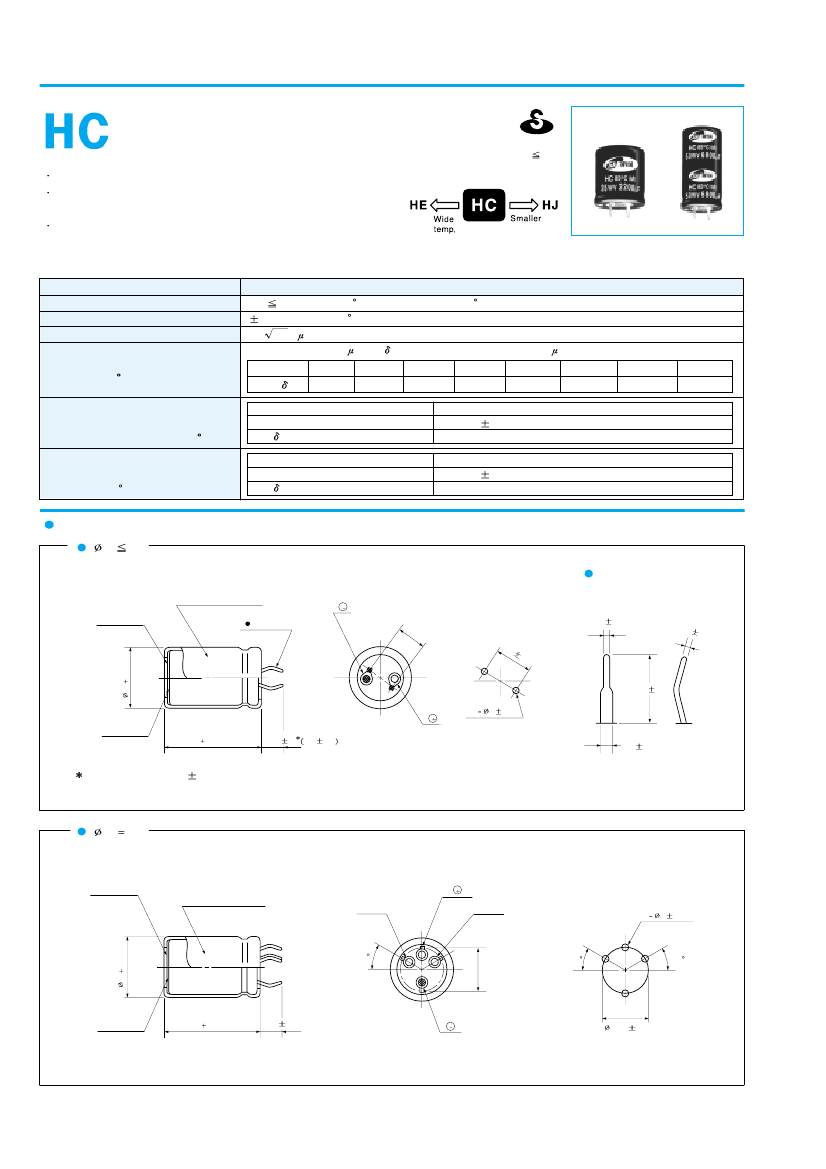

LARGE ALUMINUM ELECTROLYTIC CAPACITORS

Snap-in Terminal Type, Standard

Series

Standard snap-in terminal type

Extended Voltage range of 6.3~500V

(For 500WV products, apply only FL series, high ripple use)

Including height 20mm products, low profile sized

(Voltage range of 160~450V)

Solvent Proof

WV 200V

Item

Operating temperature range

Capacitance tolerance

Leakage current max.

Dissipation factor max.

(at 120Hz, 20 C)

Load life

(after application of the rated

voltage for 2000 hours at 85 C)

Shelf life

(after leaving capacitors under

no load at 85 C for 1000 hours)

Characteristics

WV 350 : -40 ~ +85 C, WV> 350 : -25 ~ +85 C

20% at 120Hz, 20 C

I=3 CV ( A) (after 5 minutes)

Capacitance > 1000 F : tan increases by 0.01 for each 1000 F from below value.

tan

6.3

0.45

0.40

16, 25

0.35

0.30

50, 63

0.25

80, 100

0.20

160~400

0.15

450,500

0.20

Leakage current

Capacitance change

tan

Leakage current

Capacitance change

tan

Less than specified value

Within 20% of initial value

Less than 200% of specified value

Less than specified value

Within 15% of initial value

Less than 150% of specified value

Unit : mm

DRAWING

D 35

PC Board

Mounting Holes

Terminal

Insulating sleeve

Bottom plate

0.8 0.1

0.8

0.1

D 1 max.

0.2

6.0

2 0.1

Safety vent

L 2 max.

6.0 1

4.0 0.5

1.5

0.1

Shorter terminal(4.0 0.5) is also available upon request.

Terminal length of height 20mm products is applied shorter terminal to standard terminal type.

D 40

PC Board

Mounting Holes

Bottom plate

Insulating sleeve

Blank

2 0.1

D 1 max.

22.5

Safety vent

L 2 max.

6.0 1

22.5 0.2
