14 DIP, 3.3 or 5.0 Volt, HCMOS Compatible Output, OCXO
3.3 V or 5.0 V Supply
Wide Frequency Range of 10 to 53 MHz
Vectron EX-380 Alternative
RoHS Compliant
Full Stratum 3 Compliance
(including short term hold-over stability)
•
SMT Surfboard Option
Product Description
•
•
•
•
•
The MtronPTI XO5166 and XO5167 OCXO series is an excellent alternative to the Vectron
EX-380 series. The XO5166 and XO5167 series offers full Stratum 3 compliance per GR-1244-
CORE and hermeticity per MIL-STD-202, Method 112. The series is offered in leaded through
hole and SMT surfboard mounting options. The XO5166 has a supply voltage of 3.3 Vdc, and the
XO5167 has a supply voltage of 5.0 Vdc with HCMOS compatible output.
Product Applications
•
•
•
•
•
•
Digital switching networks
Telecom transmission equipment
Wireless communications
SONET / SDH / DWDM / FDM / ATM / 3G /WiMAX
Airborne and military equipment
Instrumentation
Product Ordering Information
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
Revision:7-8-08
XO5166 and XO5167 Series

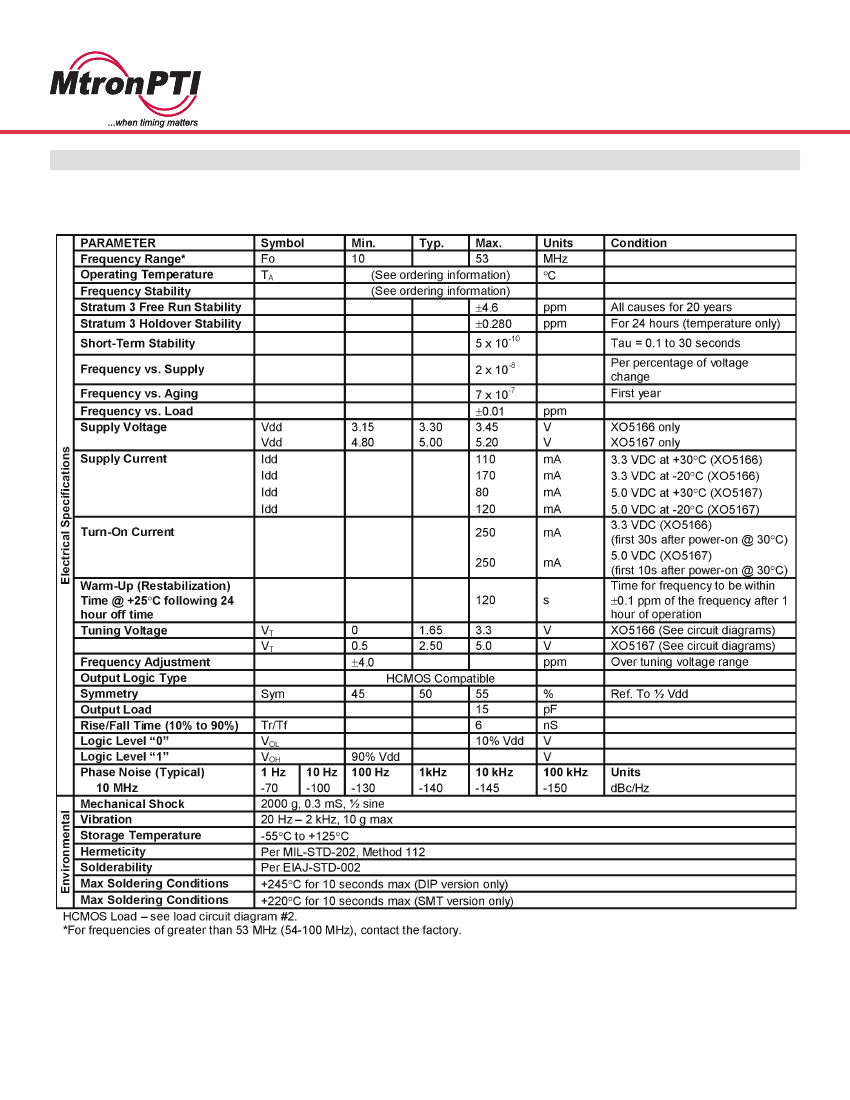

Performance Characteristics
14 DIP, 3.3 or 5.0 Volt, HCMOS Compatible Output, OCXO
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
2
XO5166 and XO5167 Series

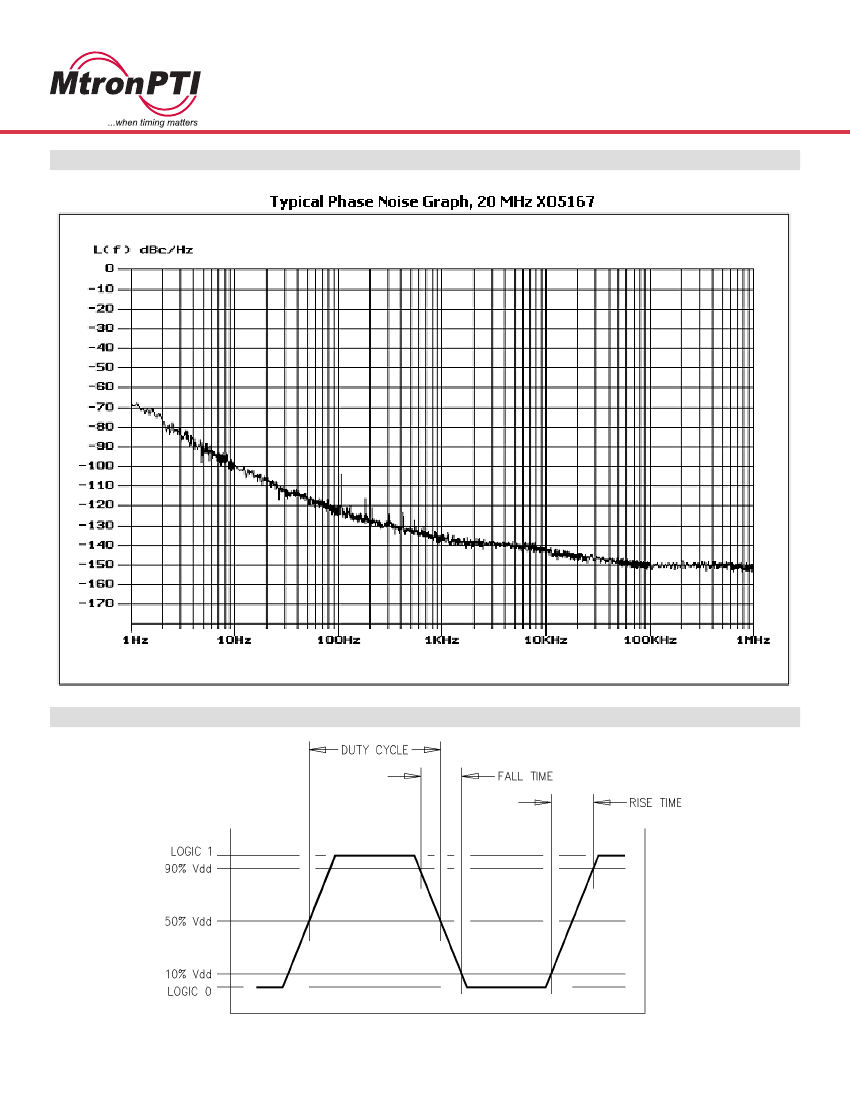

Phase Noise Plot
14 DIP, 3.3 or 5.0 Volt, HCMOS Compatible Output, OCXO
Output Waveform
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
3
XO5166 and XO5167 Series

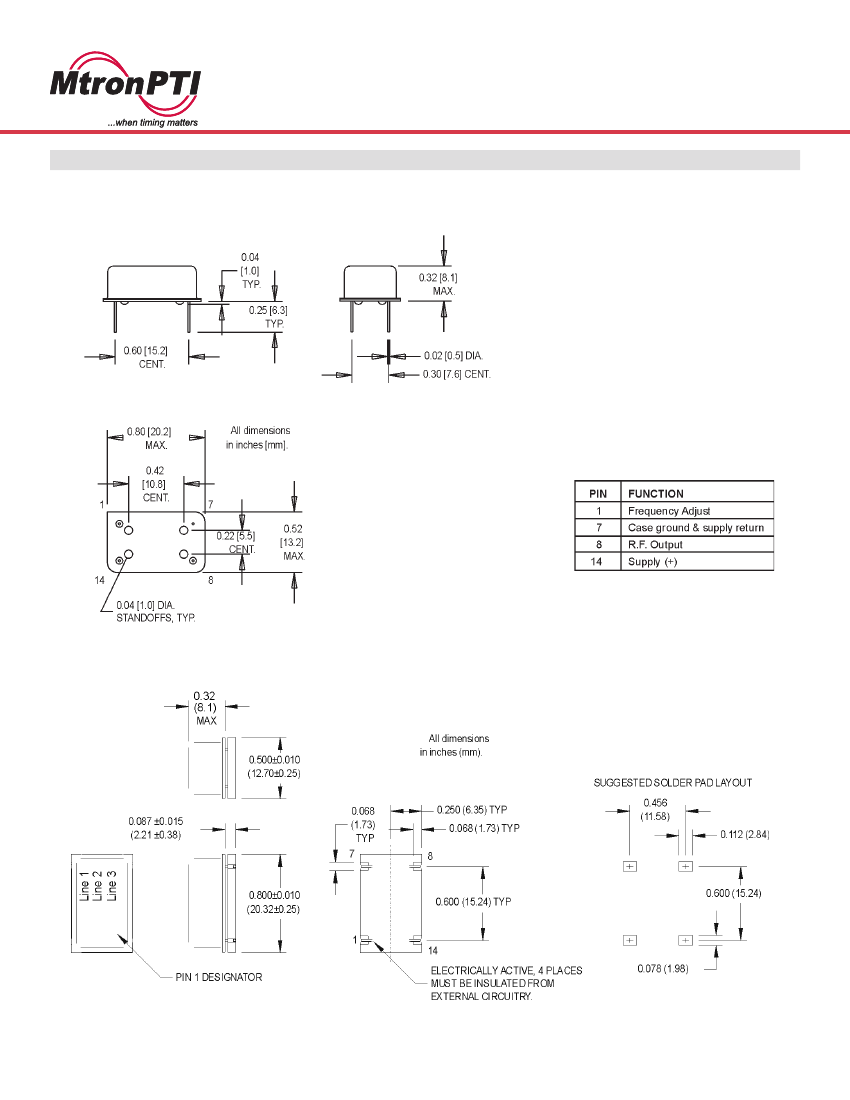

Product Dimension & Pinout Information
14 DIP, 3.3 or 5.0 Volt, HCMOS Compatible Output, OCXO
PTH Package
Pin Connections
SMT Package
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
4
XO5166 and XO5167 Series

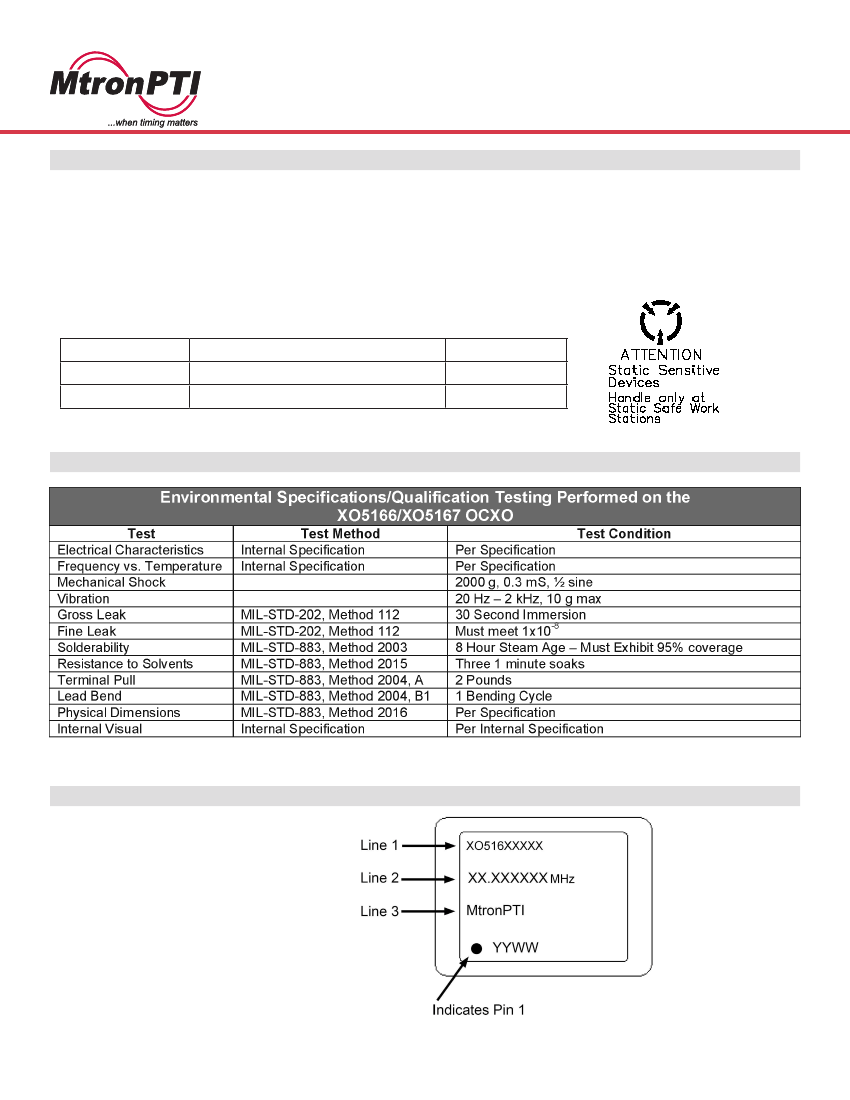

Handling Information
14 DIP, 3.3 or 5.0 Volt, HCMOS Compatible Output, OCXO
Although protection circuitry has been designed into the XO5166 & XO5167 OCXO, proper precautions
should be taken to avoid exposure to electrostatic discharge (ESD) during handling and mounting.
MtronPTI utilizes a human-body model (HBM) and a machine model (MM) for ESD-susceptibility test-
ing and protection design evaluation. ESD voltage thresholds are dependent on the circuit parameters
used to define the model. A standard HBM (resistance = 1500 Ω, capacitance = 100 pF) and a MM
(capacitance = 200 pF) were used for ESD threshold testing of this product.
Model
Human Body
Machine Model
ESD Threshold, Minimum
2000
200
Unit
V
V
Quality Parameters
Part Marking Guide
Line 1: Model Number
Line 2: Frequency
Line 3: MtronPTI
Line 4: Date Code
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact MtronPTI for your application specific requirements at 800.762.8800 toll free or 605.665.9321.
