PPPN321BFCN-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PPPN321BFCN-RC

PPPN321BFCN-RC: DescriptionBoard Connector, 32 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size303KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

PPPN321BFCN-RC Overview

Board Connector, 32 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT

PPPN321BFCN-RC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1424681354
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	P
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

REVISIONS

REV.

ECO. NO

642

1126

1811

DESCRIPTION

INITIAL RELEASE

UPDATE SPECIFICATIONS

ADD POSI. 2 & 3, UPDATE P/N CODING, VIEWS,

TOLERANCE BLOCK, TOLERANCE +/-.05 FOR CC.

WAS +/- .5, AND +/-.10 FOR 'A' WAS +/-.05

DATE

6/14/2005

9/12/2006

1/10/2009

.017 0.44

.094 2.40

.059 1.50

.173 4.40

.094±.008 2.40±0.20

.020±.002 0.50±0.05

.079±.002 2.00±0.05

A±.008 [ .20]

B±.014 [ .35]

02-20, 0.20mm MAX.

21-40, 0.30mm MAX.

.008±.002 0.20±0.05

A±.004 [ 0.10]

.079±.002 2.00±0.05

.031±.002 0.80±0.05

NOTES:

1. INSULATOR MATERIAL: SEE PART NUMBER CODING.

2. CONTACT MATERIAL: PHOSPHOR BRONZE.

3. CONTACT PLATING: GOLD FLASH OVERALL.

4. CURRENT RATING: 1 AMP.

5. INSULATOR RESISTANCE: 5000 MEGOHMS MIN.

6. CONTACT RESISTANCE: 20 MILLIOHMS MAX.

7. DIELECTRIC WITHSTANDING: AC 500V.

8. OPERATING TEMPERATURE: -40° C TO +105° C.

9. *PROCESSING TEMP.: 260° C FOR 10 SECS MAX.

*INDICATED TEMPERATURE AND TIME IS FOR COMPONENT

INSULATOR. HIGHER PROCESSING TEMPERATURES MAY BE USED,

PROVIDED HEAT IS APPLIED FROM BACK SIDE OF PCB, AND INSULATOR

DOES NOT EXCEED INDICATED TEMPERATURE AND TIME.

RECOMMENDED PCB LAYOUT

oHS COMPLIANT

DIMENSIONS ARE IN INCHES[MM]

TOLERANCES:

ANGULAR: 5

.X= .012 [.30]

.XX= .008 [.20]

.XXX= .006 [.15]

SURFACE FINISH: 63 Ra

UNLESS OTHERWISE SPECIFIED:

DRAWN

DATE

NAME

1/10/09

REMOVE ALL BURRS AND SHARP EDGES .010 MAX

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

DESCRIPTION

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

PART NUMBER

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

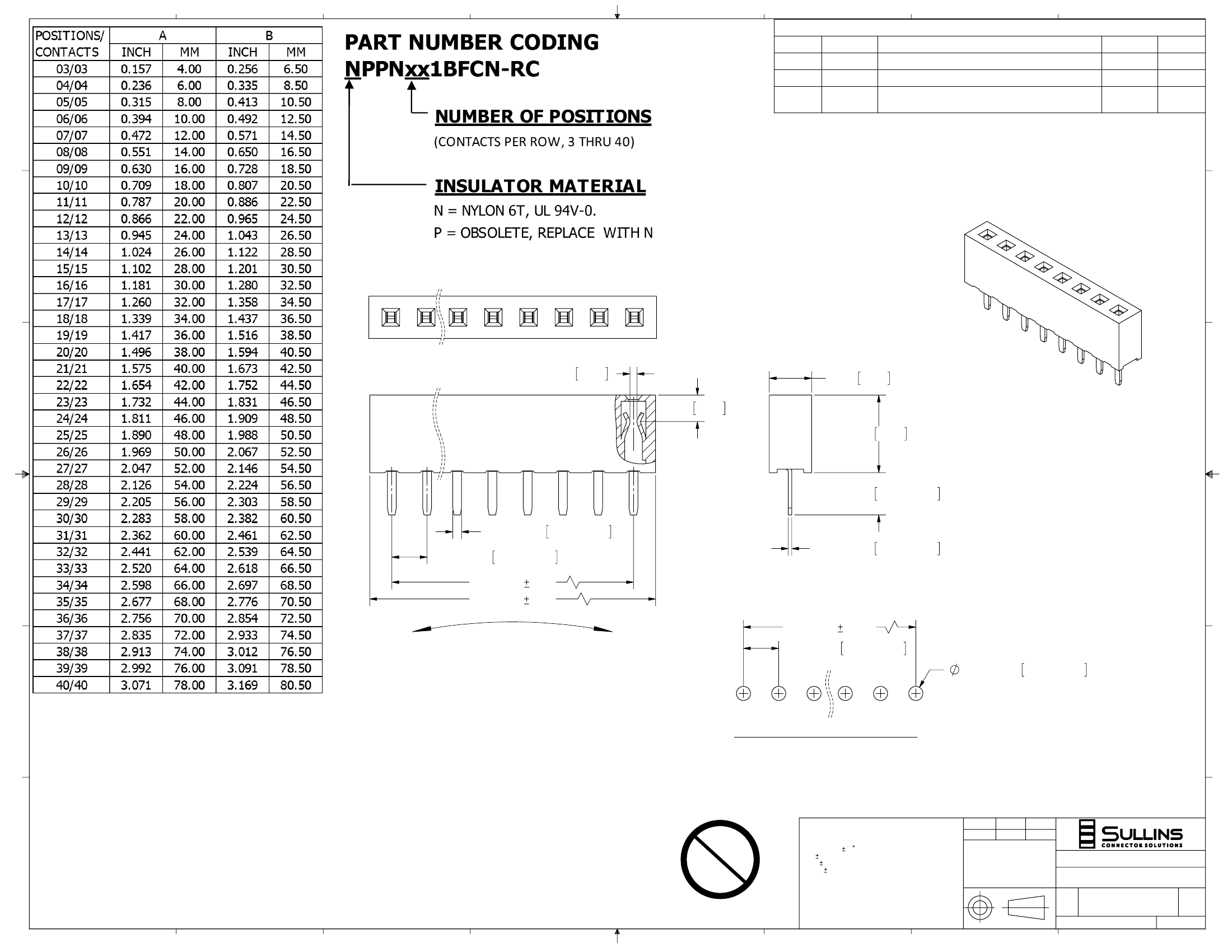

HEADER, FEMALE 2mm CC, 1 ROW, ST

NPPNxx1BFCN-RC

SIZE DWG. NO.

INTERPRET DIMENSIONS AND GEOMETRIC

TOLERANCING

PER: ANSI Y14.5M-1994

SCALE: 16:1

REV

10483

SHEET 1 OF 1

FILE NAME: Z:\COMPONENTS\Taiwan\10483, NPPNxx1BFCN-RC PRINT: 3/4/2009
