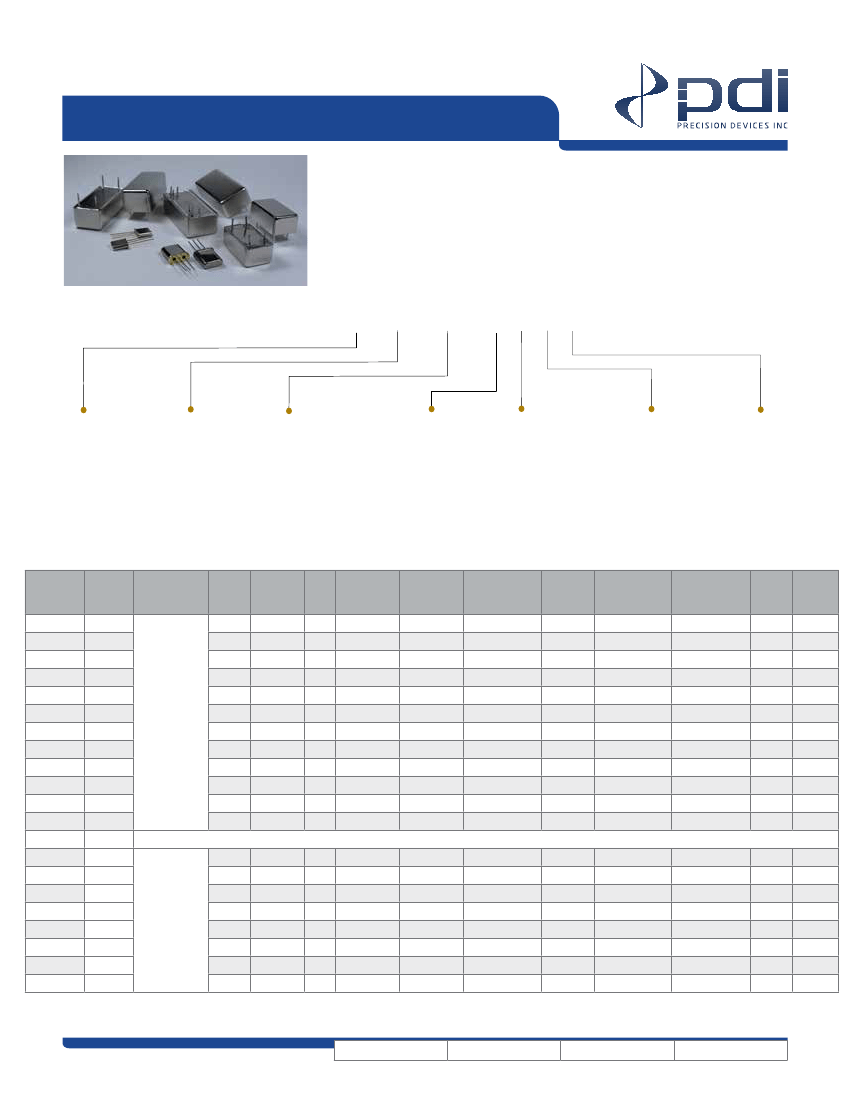

MCF-Series Crystal Filter Specifications
PDI offers a variety of Monolithic and Discrete Crystal Filters over a wide range of
frequencies, and are of the highest quality for any commercial or military grade
specifications. PDI’s crystal filters are availiable in a variety of standard packages,
or fabricated to our customer’s specifications. Contact our Sales Department to
discuss PDI’s capacity to meet the demands of any customer.
ex)
MCF—T#—25000X—A—A—B—X#—X*
#(X) - Option digit (Customer assigned).
*(X) - Check digit (PDI assigned).
DESIGN TYPE
MCF
= Monolithic
DCF
= Discrete
PACKAGE TYPE
HA
= HC-49/U
U1
= UM-1
T#
= Thru Hole*
SC
= Thru Hole*
FP
= Flatpacks
FREQUENCY
10700X - 99999X =
10.700MHz-99.999MHz
C10000 - C200.00 =
100.00MHz-200.00MHz
BANDWIDTH
A
= ±3.75KHz
B
= ±7.5KHz
C
= ±15.0KHz
D
= ±30.0KHz
S
= Special
CASE HEIGHT
A, B, C, D, S =
(See package dwg
for preferred height)
OPERATING
TEMPERATURE
A
= 0 to +70°C
B
= -20 to +70°C
C
= -30 to +85°C
D
= -40 to +85°C
E
= -55 to +125°C
S
= Special
Options
S
= Special
X
= Bulk
* Additional PDI Standard Packages Available
Package
HA
HA x 2
T2
SC
HA
HA x 2
T2
SC
HA
HA x 2
FP
SC
U1
U1 x 2
HA
HA x 2
U1
U1 x 2
T2
T2
21.4
MHz
10.7
MHz
** Custom Frequencies Available upon Request
Ripple
0.5
1.0
2.0
2.0
1.0
1.0
2.0
2.0
0.5
1.0
1.0
2.0
0.5
1.0
0.5
1.0
0.5
1.0
2.5
2.0
Frequency Poles
2
4
6
8
2
4
6
8
2
4
6
8
2
4
2
4
2
4
6
8
Pass
band
±3.75
±3.75
±3.75
±3.75
±7.50
±7.50
±7.50
±7.50
±15.0
±15.0
±15.0
±15.0
(dB) Stopband
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
±15.0
±12.5
±12.5
±8.75
±25.0
±25.0
±50.0
±17.0
±50.0
±50.0
±45.0
±35.0
±18.0
±14.0
±35.0
±40.0
±50.0
±50.0
±70.0
±33.0
Insertion
Loss
2.0
2.0
3.5
3.5
1.5
2.5
3.0
3.5
2.0
2.5
2.5
3.5
2.0
2.5
2.0
2.0
2.0
2.5
5.0
4.0
Ultimate
Spurious
Attenuation
Tem-
Impedance
pera-
Ω
(Ohms)
ture
1500
1500
910
2200
3000
3000
500
3300
5000
5000
5000
5000
850
850
1500
1400
2300
2300
500
470
Spec
File
REV:
NA
SIZE:
A
CAGE:
A
1
of
5
MCF-Series Crystal Filter Specifications
Package
U1
U1 x 2
U1 x 3
U1
U1 x 2
T2
U1
U1 x 2
U1
T2
U1 x 2
U1
U1 x 2
T2
45.0
MHz
Frequency Poles
2
4
6
2
4
6
2
4
2
4
2
2
4
6
Pass
band
±3.75
±3.75
±3.75
±7.50
±7.50
±7.50
±15.0
±15.0
±7.50
±7.50
±15.0
±7.50
±7.50
±15.0
(dB) Stopband
3
3
3
3
3
3
3
3
3
3
3
3
3
3
±12.5
±15.0
±18.0
±25.0
±25.0
±25.0
±50.0
±50.0
±28.0
±25.0
±50.0
±28.0
±25.0
±25.0
Ripple
1.0
1.0
1.0
0.5
1.0
2.0
1.0
1.0
1.0
2.0
1.0
1.0
1.0
1.0
Insertion
Loss
2.0
4.0
3.0
1.0
2.5
5.0
2.0
4.0
2.5
6.0
3.0
2.0
3.0
5.0
Ultimate
Spurious
Attenuation
Tem-
Impedance
pera-
Ω
(Ohms)
ture
2000
3000
650
2600
560
650
650
800
2000
50
4000
2000
2000
50
Spec
File
70.0
MHz
90.0
MHz

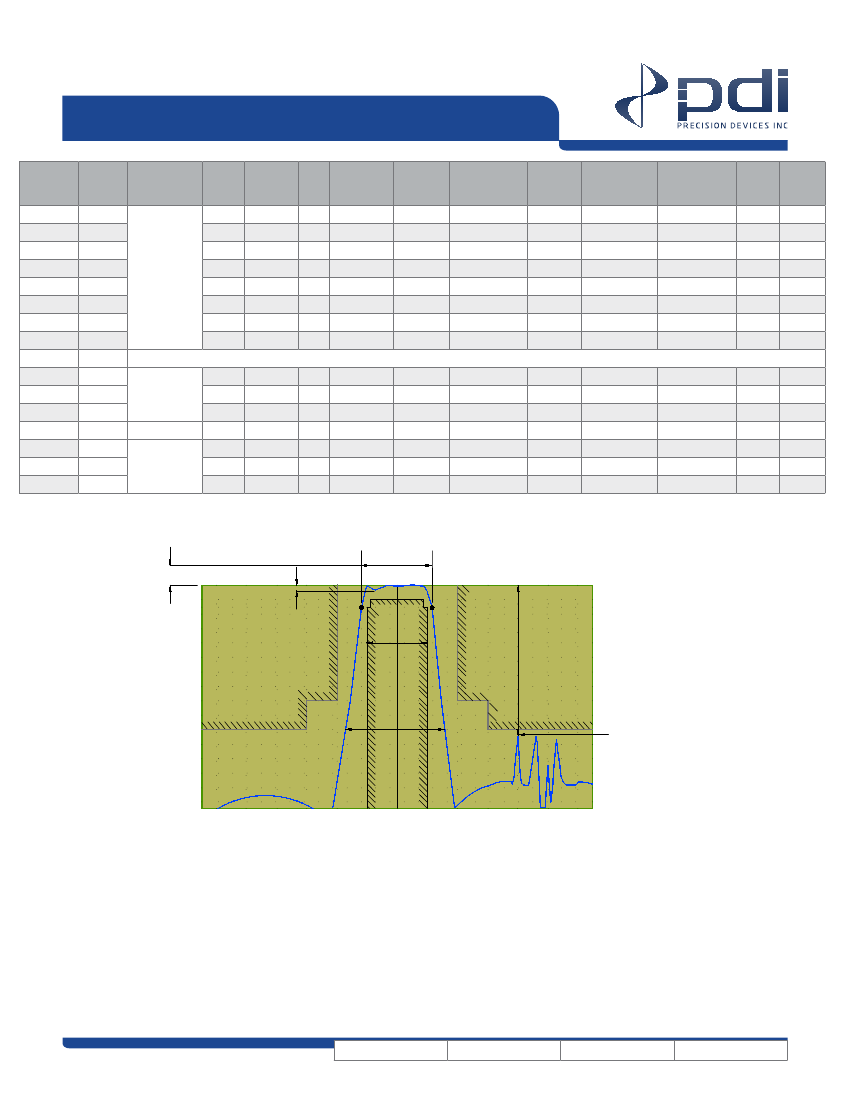

Insertion Loss
Ripple
Frequency
Nominal
Bandwidth
Nominal
Bandwidth
Stop
Response
Spurious
Precision Devices Incorporated Definitions:
Nominal Frequency:
The frequency at which the filter response is centered.
Insertion Loss:
The insertion of a component into the transmission system causing a loss in load power.
Ripple:
The difference between the maximum and minimum attenuation within a passband.
Passband:
The band of frequencies where the attenuation of a filter is less than half the power loss.
Stopband:
Where the output power of the filter in the unwanted frequency range is below a certain level with reference to the
passband power.
Spurious Resonse:
Unwanted power responses normally above the required level.
REV:
NA
SIZE:
A
CAGE:
A
2
of
5

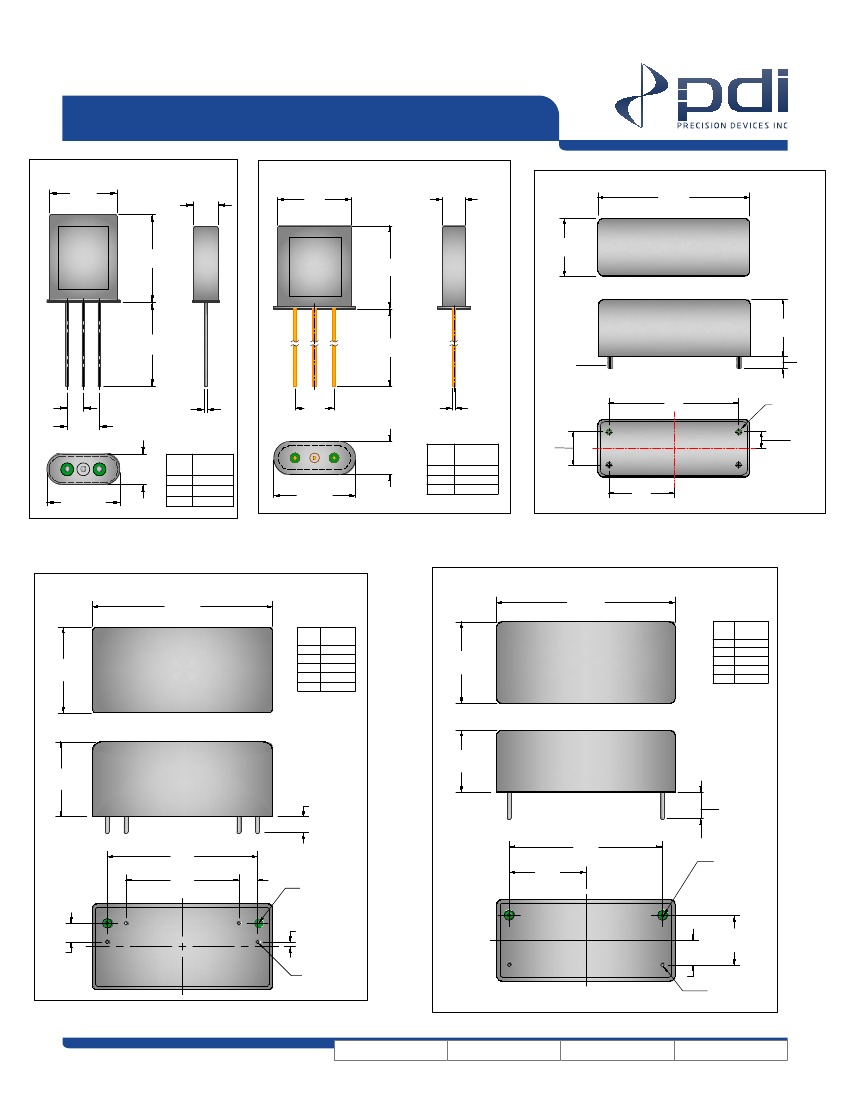

(TX ) PDI Thr u Ho le Mon olithic Packa ges
HA (HC/49 PACKAGE)
.402
[10.21]
.146
[3.70]
U1 (UM-1 PACKAGE)
.280
[7.10]
.087
[2.20]
T1 (Filter Thru Hole Package)
3.200 Max.
[81.28 Max.]
Marking
Area
1.200 Max.
"H"
Maximum
[30.48 Max.]
Marking
Area
"H"
Maximum
1.200
.500 Min
[12.70 Min]
[30.48]
.500 Min
[12.70 Min]
6-32 UNC-2A
(2 Places)
.250 ±.020
[6.35 ±.50]
.097
[2.47]
.192
[4.88]
Ø.017 ±.002
[Ø.43 ±.05]
.192
[4.89]
Ø.012 ±.002
[Ø.30 ±.05]
2.700
[68.58]
Ø.031 ±.002
[Ø.80 ±.05]
(2 Terminals)
.350
.183 Max
Case
Letter
[4.65 Max]
A
B
S
"H"
Dimension
.530/13.46
.450/11.43
Special
.126 Max
[3.18 Max]
Case
Letter
A
B
S
"H"
Dimension
.315/8.00
.236/6.00
Special
.700
[17.78]
[8.89]
.435 Max
[11.05 Max]
.311 Max
[7.90 Max]
1.350
[34.29]
T2 (Filter Thru Hole Package)
1.512 Max
[34.40 Max]
T3 (Filter Thru Hole Package)
1.425 Max
[36.20 Max]
Case
Letter
A
B
C
D
S
"H"
Dimension
.345/8.76
.450/11.43
.492/12.50
.625/15.88
Special
Case
Letter
A
.717 Max
[18.20 Max]
"H"
Dimension
.450/11.43
.500/12.70
.600/15.24
.625/15.88
Special
.650 Max
[16.50 Max]
B
C
D
S
"H"
Maximum
"H"
Maximum
.138 Min
[3.50 Min]
.275
[7.00]
1.220
1.260
[32.00]
.945
[24.00]
.157
[4.00]
Ø.031 ±.002
[Ø.80 ±.05]
(2 Terminals)
[31.00]
.610
[15.50]
Ø.031 ±.002
[Ø.80 ±.05]
(2 Terminals)
IN
GND
.157
[4.00]
OUT
GND
GND
.039
[1.00]
IN
OUT
.394
.089
[2.25]
[10.00]
GND
Ø.031 ±.002
[Ø.80 ±.05]
(4 Ground Pins)
GND
GND
Ø.031 ±.002
[Ø.80 ±.05]
(2 Ground Pins)
REV:
NA
SIZE:
A
CAGE:
A
3
of
5

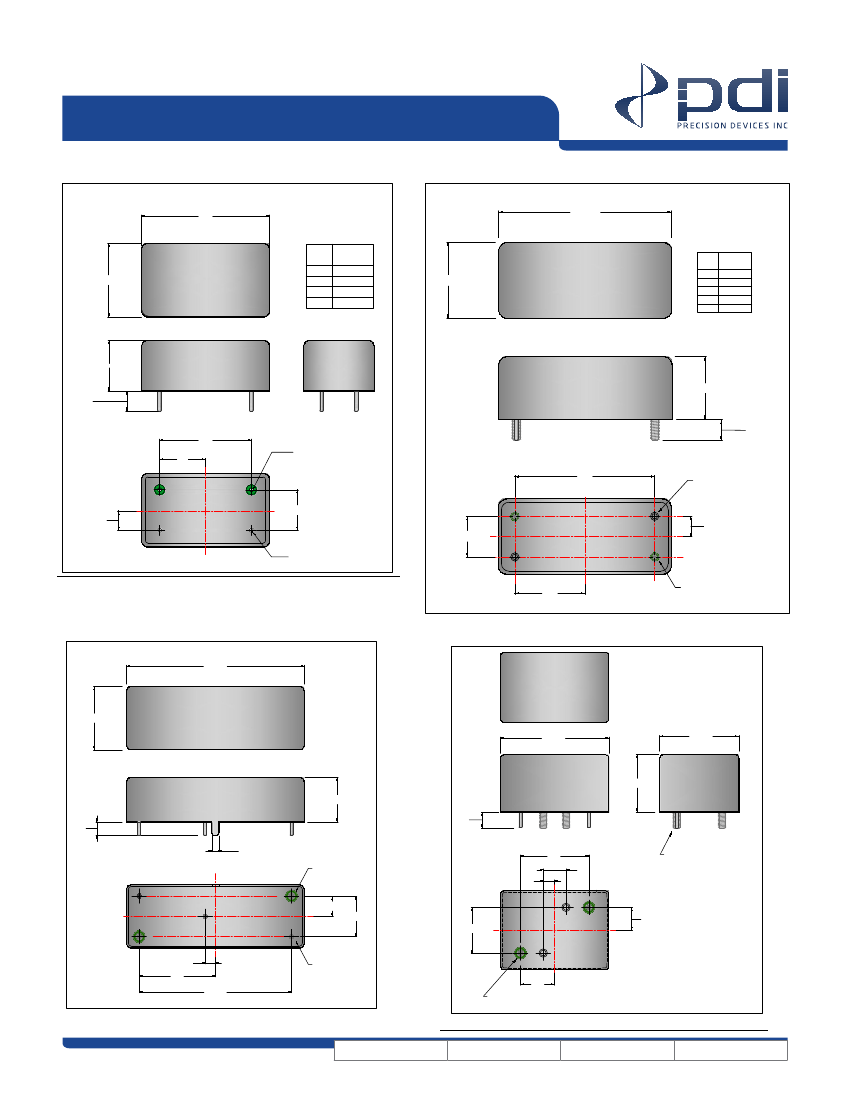

(TX ) PDI Thr u Ho le Mon olithic Packa ges
T5 (Filter Thru Hole Package)
2.400 Max.
[60.96 Max.]
T4 (Filter Thru Hole Package)
.988
[25.06]
Case
Letter
.570 ±.020
[14.50 ±.50]
"H" Max.
Dimension
.394/10.00
.535/13.60
.625/15.87
Special
1.050 Max.
[26.67 Max.]
A
B
C
S
Case
Letter
A
B
C
D
S
"H"
Dimension
.500/12.70
.640/16.25
.750/19.05
1.00/25.40
Special
"H"
"H"
Max.
.157 Max
[4.00 Max]
.708
[18.00]
.354
[9.00
]
.250 ±.020
[6.35 ±.50]
Ø.031 ±.004
[Ø.80 ±.10]
(2 Terminals)
1.938
[49.22]
IN
OUT
4-40 UNC-2A
(2 Places)
.157
[4.00
]
.315
[8.00]
GND
GND
Ø.031 ±.004
[Ø.80 ±.10]
(2 Ground Pins
)
.562
[14.27]
.281
[7.13]
.969
[24.60]
.030Ø ±.002
[.76Ø ±.05]
(2 Places)
T6 (Filter Thru Hole Package)
1.750 Max.
[44.45 Max.]
T7 (Filter Thru Hole Package)
.625 Max.
[15.87 Max.
]
1.420 Max.
[36.07 Max.]
1.050 Max.
[26.67 Max.]
.630 Max.
[16.00 Max.]
.440 Max.
[11.18 Max.]
.190
[4.78]
.133
[3.38]
.070
[1.80]
.030Ø ±.002
[.76Ø ±.05]
(2 Places-Terminals)
.150
[3.81]
.898
[22.80]
.300
[7.62]
4-40 UNC-2A
(2 Places) .190±.008
Out
.200
[5.08]
.400±.008
[10.16±.20]
.600
[15.24]
.300
[7.62]
In
.100
[2.54]
.750
[19.05]
1.500 ±.008
[38.10 ±.20]
.030Ø ±.002
[.76Ø ±.05]
(3 Places-Gnd. Pins)
.449
[11.40]
.040ر.002
(2 Places) Terminals
REV:
NA
SIZE:
A
CAGE:
A
4
of
5

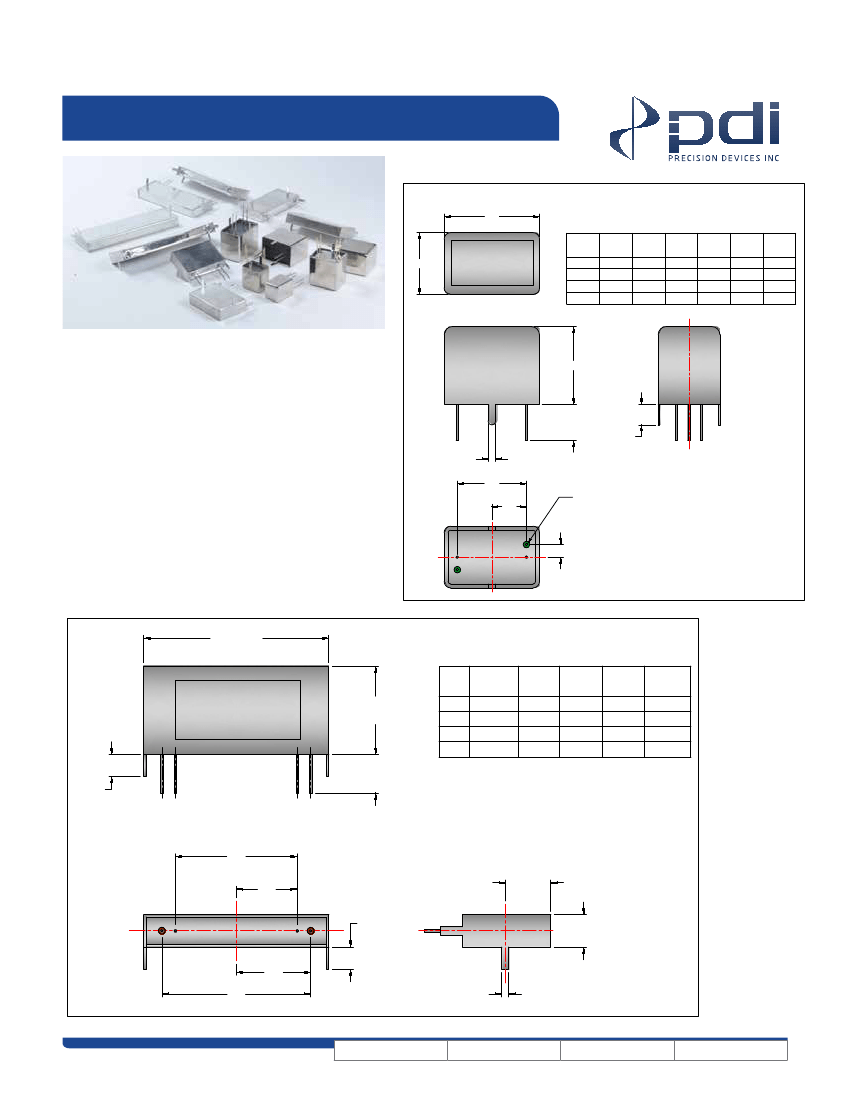

(SC) M CF Standard Cr ysta l & (FP) MCF Flat p a c k Ou t lin e Draw
in g s
SC Package
"A"
Case
Letter
"A"
Dim
.433/11.00
.335/8.50
"B"
Dim
.335/8.50
.335/8.50
"C"
Dim
"D"
Dim
"E"
Dim
"F"
Dim
"B"
Marking Area
A
B
C
D
.463/11.76 .291/7.40
.450/11.43 .206/5.23
.145/3.70 .074/1.88
.103/2.61 .074/1.88
.177/4.50 .096/2.44
.590/15.00 .472/12.00 .595/15.10 .354/9.00
.730/18.55 .472/12.00 .595/15.10 .528/13.40 .264/6.70 .096/2.44
.
"C"
.275 Min
[7.00 min]
.059
[1.50]
"D"
"E"
.157
[4.00]
Ø.018 ±.002
[Ø.46 ±.05]
(2 Terminals)
"F"
"A"
Maximum
FP PACKAGE
Case
Letter
"A"
Dim
.890/22.60
1.320/33.53
"B"
Dim
.216/5.50
"C"
Dim
"D"
Dim
"E"
Dim
.624/15.85
Marking Area
.630 Max
[16.00 Max]
A
B
C
D
.432/11.00 .312/7.92
.435/11.05 .870/22.10 .530/13.50 1.060/27.00
1.750/44.45 .654/16.61 1.308/33.22 .750/19.05 1.500/38.10
2.180/55.37 .855/21.71 1.710/43.42 .950/24.15 1.900/48.30
.157
[4.00]
.275 Min
[7.00 Min]
"C"
"B"
.157
[4.00]
"D"
"E"
.325
[8.25]
.230 Max.
[5.84 Max.]
.065
[1.65]
REV:
NA
SIZE:
A
CAGE:
A
5
of
5
