Features
■
Multiturn / Cermet / Industrial / Sealed
■
Low temperature coefficient: ±100 ppm/°C
■
Stable, infinite resolution cermet element
■
CRV 1.0 % or 1 ohm
■
Panel mount option available
■
RoHS compliant* version available
■
For trimmer applications/processing
guidelines,
click here

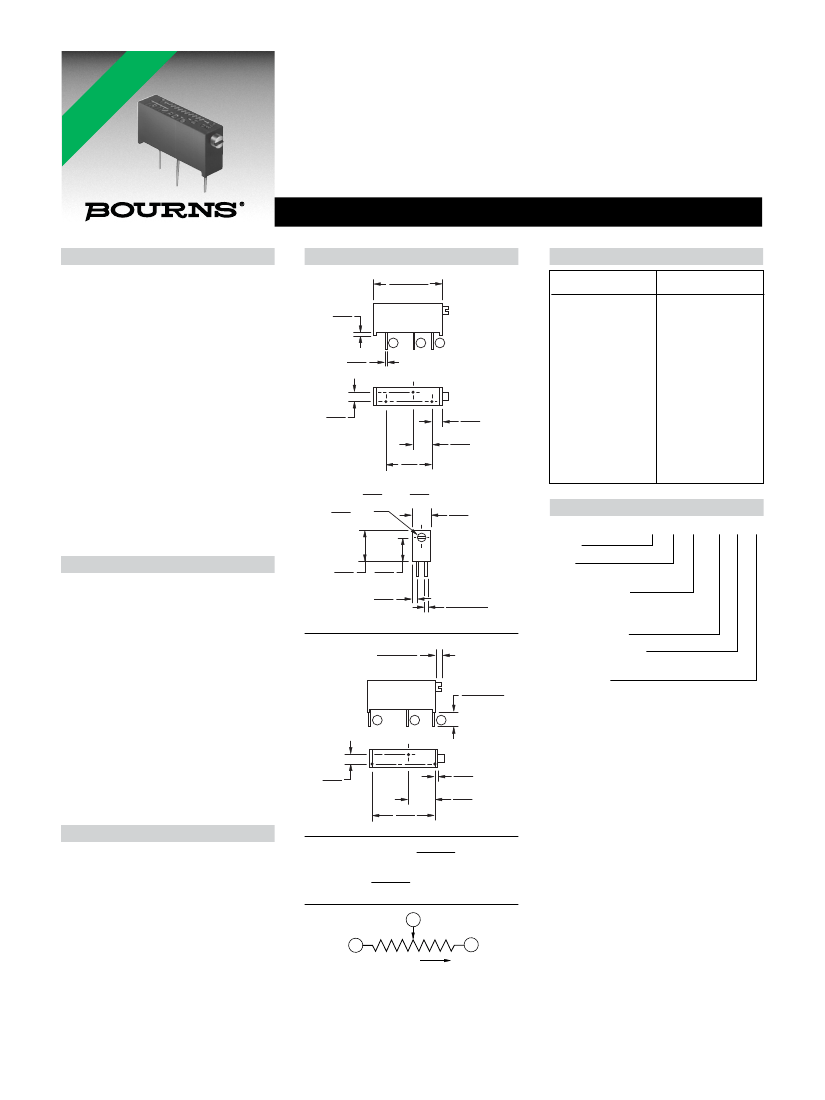

3009 - 3/4 ” Rectangular Trimpot
®
Trimming Potentiometer
Electrical Characteristics
Standard Resistance Range
....................................10 to 2 megohms
(see standard resistance table)
Resistance Tolerance .............. ±10 % std.
(tighter tolerance available)
Absolute Minimum Resistance
............................1.0 % or 2 ohms max.
(whichever is greater)
Contact Resistance Variation
..............................1.0 % or 1 ohm max.
(whichever is greater)
Adjustability
Voltage.......................................±0.01 %
Resistance.................................±0.05 %
Resolution ........................................Infinite
Insulation Resistance ................... 500 vdc
100 megohms min.
Dielectric Strength
Sea Level.................................1,000 vac
80,000 Feet ................................250 vac
Adjustment Angle ................15 turns nom.
Environmental Characteristics
Power Rating (400 volts max.)
70 °C........................................ 0.75 watt
150 °C ...........................................0 watt
Temperature Range ...... -55 °C to +125 °C
Temperature Coefficient
.......................................... ±100 ppm/°C
Seal Test..........................85 °C Fluorinert†
Humidity.......... MIL-STD-202 Method 103
96 hours
(3 %
ΔTR,
20 megohms IR)
Vibration ...........20 G (2 %
ΔTR;
2 %
ΔVR)
Shock ...............50 G (2 %
ΔTR;
2 %
ΔVR)
Load Life
............. 1,000 hours, 0.75 watt @ 70 °C
(4 %
ΔTR)
Rotational Life ........................... 200 cycles
(3 %
ΔTR;
1 % or 1 ohm,
whichever is greater, CRV)
Physical Characteristics
Torque ................................ 5.0 oz-in. max.
Mechanical Stops.................... Wiper idles
Terminals ........................... Solderable pins
Weight ............................................0.05 oz.
Marking .............................. Manufacturer’s
trademark, resistance code,
terminal numbers, date code,
manufacturer’s model number
and style
Standard Packaging ........25 pcs. per tube
REV. 08/10
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.
“Trimpot” is a registered trademark of Bourns, Inc.
†”Fluorinert” is a registered trademark of 3M Co.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
Product Dimensions
3009P
19.05 ± .38
(.75 ± .015)
Standard Resistance Table
Resistance
(Ohms)
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
25,000
50,000
100,000
200,000
250,000
500,000
1,000,000
2,000,000
Resistance
Code
100
200
500
101
201
501
102
202
502
103
203
253
503
104
204
254
504
105
205
TYP.
.89
(.035)
1
2
3
TYP.
.51
(.020)
2.54
(.10)
3.30
(.13)
5.08
(.20)
12.70
(.50)
ADJ. SLOT
X
.79
DEEP
(.031)
.64
2.36
DIA. X
WIDE
(.025)
(.093)
4.83
(.19)
How To Order
3009 P - 1 - 103 Z LF
Model
Style
Standard or Modified
Product Indicator
-1 = Standard Product
-11 = 5 % Resistance Tolerance
Resistance Code
8.98
(.350)
6.98
(.275)
1.40
(.055)
.51 ± .03
(.020 ± .001)
DIA. PINS
3009Y
1.52 ± .38
(.06 ± .015)
Optional Suffix Letter
Z = Panel Mount (Factory Installed)
5.33 ± .89
(.210 ± .035)
MIN.
1
2
3
Terminations
LF = 100 % Tin-plated (RoHS compliant)
Blank = 90 % Tin / 10 % Lead-plated
(Standard)
Consult factory for other available options.
2.54
(.10)
17.78
(.70)
.64
(.025)
7.62
(.30)
DIMENSIONS:
TOLERANCES:
0.25
(.010)
MM
(INCHES)
EXCEPT WHERE NOTED
2
CCW
WIPER
1
CLOCKWISE
3
CW
