B165-0311-119-Z: DescriptionBoard Connector, 12 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size670KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B165-0311-119-Z Overview

Board Connector, 12 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug

B165-0311-119-Z Parametric

Parameter Name	Attribute value
Objectid	304394632
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.315 inch
subject depth	0.368 inch
body length	0.236 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	B165
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

STACKING HEIGHTS

Option

9.35

2.28

9.35

1.27

7.87

3.76

10.36 1.27

9.35

2.80

HOW TO ORDER:

RoHS COMPLIANT

NUMBER OF CONTACTS / ROW:

3 CONTACTS (Min.)

30 CONTACTS (Max.)

ORIENTATION:

1 - STRAIGHT

19.3

2.3

ELECTRICAL:

CURRENT: 1.5A

CONTACT RESISTANCE: 20mΩ Max.

INSULATOR RESISTANCE: 5000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

BODY HEIGHT:

1 - 6.35mm

STACKING HEIGHT(A) :

(See Table Above)

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

MATERIAL:

TAIL LENGTHS:

1 - SOLDER TAIL

INSULATOR: GLASS FILLED POLYESTER (UL94V-0) ; NYLON 6T

CONTACT: COPPER ALLOY

Rev

0 Issued

Revised for RoHs Compliance

SCALE:n/a

TOL. DEC.

Drawn

A.M.

M.K.

Checked Approved Date

7/31/03

S.M.

S.M. 10/26/06

S.M.

SMP TECHNOLOGY, INC.

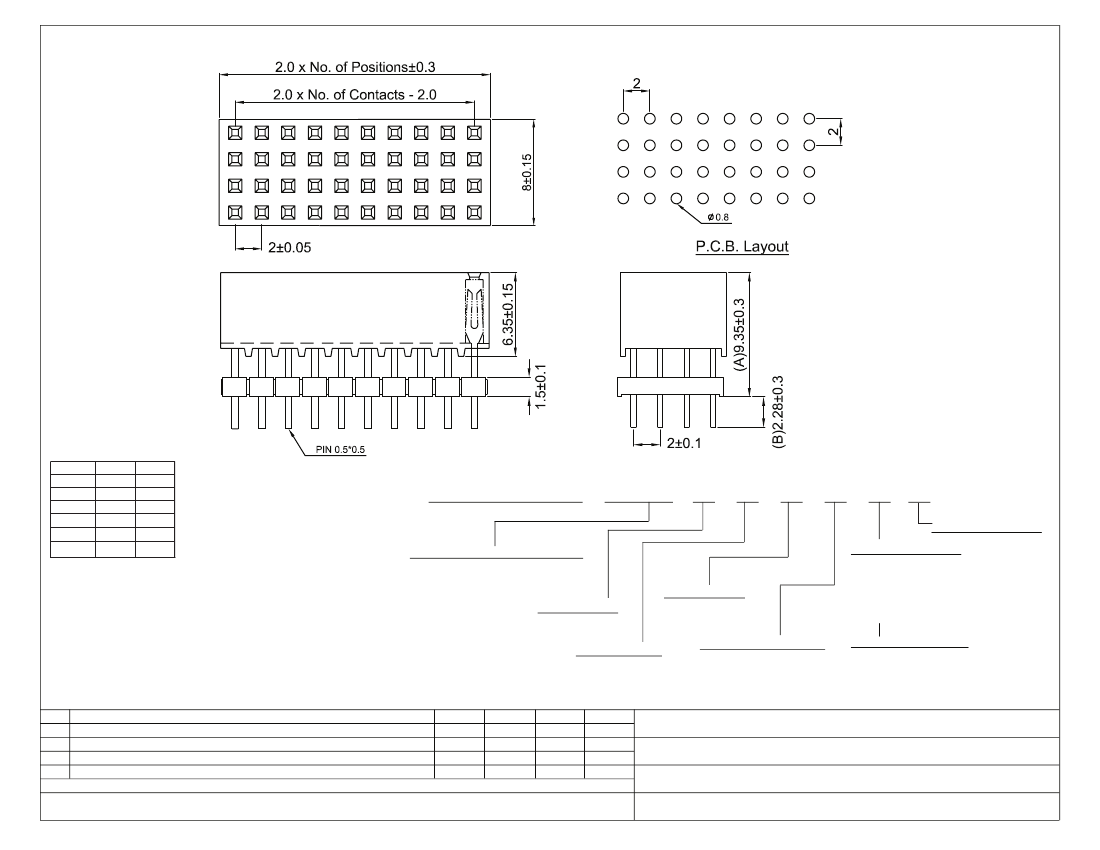

Receptacle Assembly, 2.00mm Pitch, 4 Row, Vertical

Solder Tail, 9.35mm Height, 2PC Insulator, PC/104

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

ANGLE +/- 5°

UNIT: mm

SERIES: B 1 6 5

Pg: 1
