NSFC183G16TRB2F datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NSFC183G16TRB2F

NSFC183G16TRB2F: DescriptionFilm Capacitor, Polyester, 16V, 2% +Tol, 2% -Tol, 0.018uF, Surface Mount, 1206, CHIP; CategoryPassive components capacitor; File Size72KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric Compare View All

NSFC183G16TRB2F Overview

Film Capacitor, Polyester, 16V, 2% +Tol, 2% -Tol, 0.018uF, Surface Mount, 1206, CHIP

NSFC183G16TRB2F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	CHIP
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.018 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
JESD-609 code	e1
Installation features	SURFACE MOUNT
negative tolerance	2%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 7 INCH
positive tolerance	2%
Rated (AC) voltage (URac)	12 V
Rated (DC) voltage (URdc)	16 V
size code	1206
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

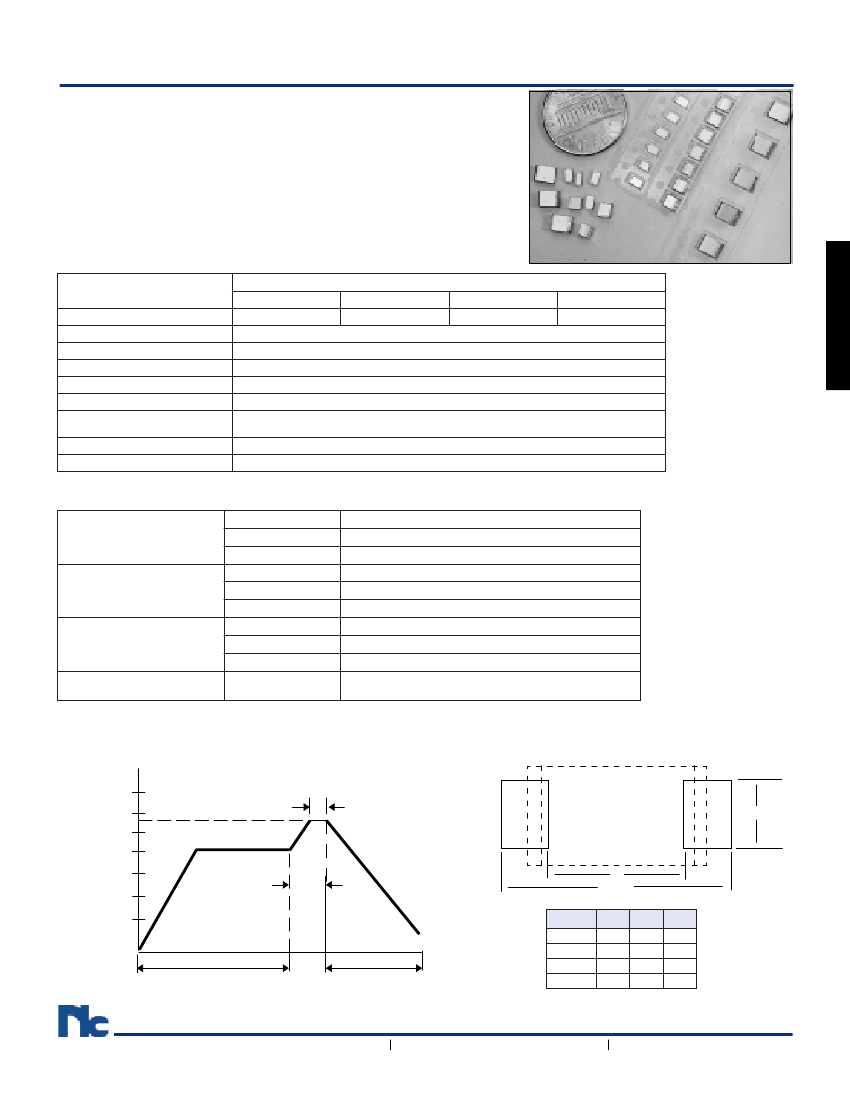

Stacked Film Capacitor Chips

FEATURES

•

STACKED METALLIZED POLYESTER FILM CONSTRUCTION

STANDARD EIA 1206, 1210, 1913 AND 2416 SIZES

EXCELLENT MOISTURE RESISTANCE

STABLE TEMPERATURE, FREQUENCY AND BIAS CHARACTERISTICS

REFLOW SOLDERING APPLICABLE

TAPE AND REEL PACKAGING

NSFC Series

SURFACE MOUNT

SPECIFICATIONS

Capacitance Range

Voltage Ratings*

Capacitance Tolerance

Temperature Range

Dissipation Factor (20 C)

Insulation Resistance (20 C)

Dielectric Withstanding Voltage

Temperature Characteristic

Dielectric Absorption

Case Sizes

1206

1000pF ~ .056

µF

1210

5600pF ~ .1

µF

1913

.015

F ~ .22

µF

2416

0.12

F ~ 0.47

µF

16Vdc(12Vrms), 50Vdc(40Vrms), 100Vdc(75Vrms)

±5% (J)

-55°C ~ +105°C

1.0% max @ 1 KHz

3 Gigohms Minimum

175% of Rated Voltage (5 Seconds)

150% of Rated Voltage (60 Seconds)

±4%

∆

C Maximum Over Temperature Range

0.20 ~ 0.30% Typical

* -AC Voltage Ratings (Vrms) From 60 hz to 10Khz. Contact NIC For Derating At Higher Frequencies.

ENVIRONMENTAL CHARACTERISTICS

L i fe Te s t At + 1 0 5

1000 Hour s at 125% of

Ra t e d Vo l t a g e

+ 2 6 0 C Pe a k fo r 5 Se c o n d s

H u m i d i t y L o a d L i fe * :

( 1 ) 1 0 0 0 H o u r s, + 4 0

(2) 500 Hours, +60 C

Solderability with

10% Wt Rosin-Methanol Flux

Capaci t ance Change

Di s s i p a t i o n Fa c t o r

I nsul at i on Resi st ance

Di s s i p a t i o n Fa c t o r

Capaci t ance Change ( 1) +8/ - 5%

Di s s i p a t i o n Fa c t o r

(1) 1.5% Max.

Wi t h i n + 1 / - 6 % o f I n i t i a l Va l u e

1 . 1 % M a x i mu m

1 G i g o h m M i n i mu m

Wi t h i n ± 5 % o f I n i t i a l Va l u e

1 . 1 % M a x i mu m

1 G i g o h m M i n i mu m

( 2 ) ± 1 0 % o f I n i t i a l Va l u e

(2) 2.0% Max.

Resi st ance t o Sol der i ng Heat : Capaci t ance Change

A f t e r 9 0 S e c o n d s a t + 1 5 5

C I n s u l a t i o n R e s i s t a n c e

I n s u l a t i o n Re s i s t a n c e (1) 100 Megohm Minimum (2) 10 Megohm Minimum

9 0 % M i n i m u m C o ve r a g e A f t e r 5 S e c o n d D i p

i n t o 2 3 5 ° C So l d e r Po t

* At 90 ~ 95% Relative Humidity and Rated Voltage

RECOMMENDED REFLOW PROFILE

RECOMMENDED LAND PATTERN

300

Temperature - Deg. C

250

200

150

100

Less Than

15 Seconds

Cool

Down

EIA Size

1206

1210

1913

2416

3.8

6.6

7.8

1.4

2.3

3.0

3.8

2.2

2.6

3.8

Pre-heat

150°C 120 seconds

2 Minutes Minimum

Time

NIC COMPONENTS

www.niccomp.com

www.lowESR.com

www.RFpassives.com

173

Peak Temperature

(230°C for 5 sec.)

NSFC183G16TRB2F Related Products

	NSFC183G16TRB2F	NSFC183G16TRB2
Description	Film Capacitor, Polyester, 16V, 2% +Tol, 2% -Tol, 0.018uF, Surface Mount, 1206, CHIP	Film Capacitor, Polyester, 16V, 2% +Tol, 2% -Tol, 0.018uF, Surface Mount, 1206, CHIP
Is it Rohs certified?	conform to	incompatible
Maker	Nichicon	Nichicon
package instruction	CHIP	CHIP
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
capacitance	0.018 µF	0.018 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR
dielectric materials	POLYESTER	POLYESTER
JESD-609 code	e1	e0
Installation features	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	2%	2%
Number of terminals	2	2
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, 7 INCH	TR, 7 INCH
positive tolerance	2%	2%
Rated (AC) voltage (URac)	12 V	12 V
Rated (DC) voltage (URdc)	16 V	16 V
size code	1206	1206
surface mount	YES	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND	WRAPAROUND
Base Number Matches	1	1
