901326260TR

Description
Board Stacking Connector, 26 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,
CategoryThe connector    The connector
File Size450KB,3 Pages
ManufacturerW+P Products GmbH
Environmental Compliance
Download Datasheet Parametric View All

901326260TR Overview

Board Stacking Connector, 26 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,

901326260TR Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid8337441552
Reach Compliance Codecompliant
ECCN codeEAR99
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationGOLD FLASH
Contact completed and terminatedTin (Sn)
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch1.27 mm
Termination typeSURFACE MOUNT
Total number of contacts26
UL Flammability Code94V-0
9013

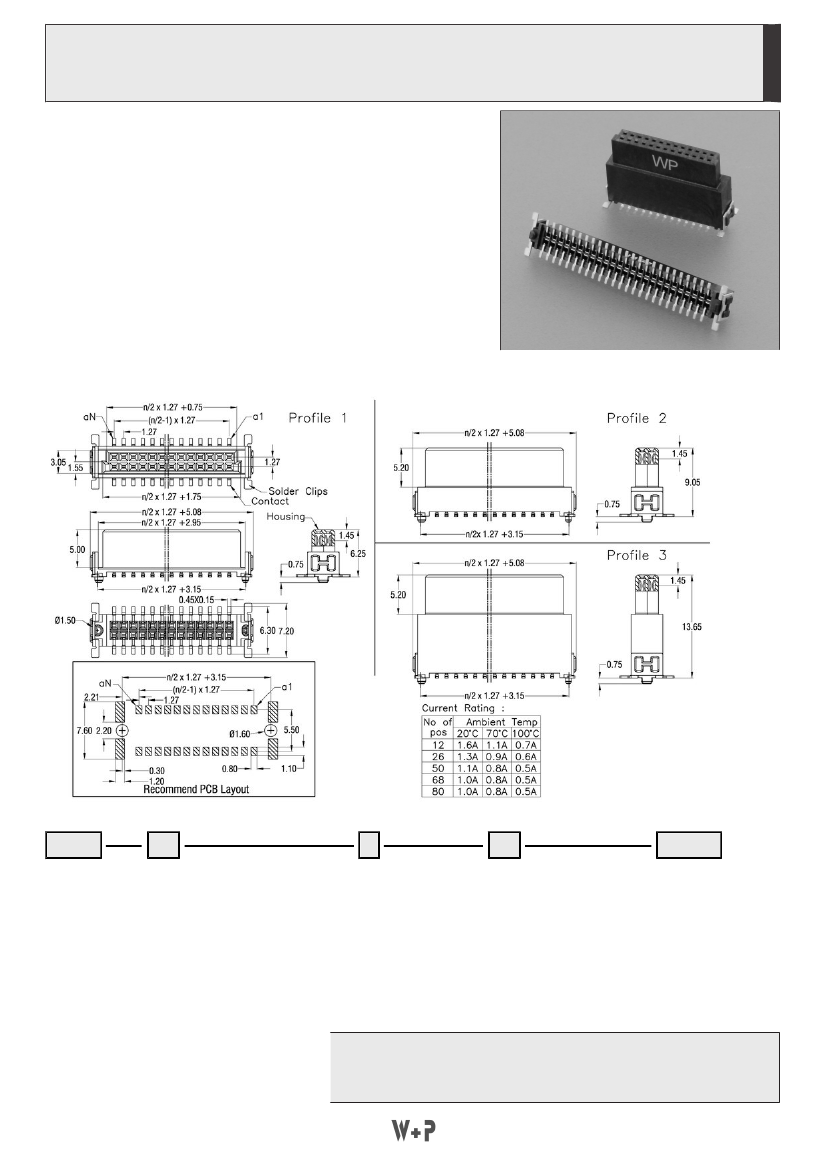

SMT-Buchsenleiste RM 1,27mm, stehend
SMT Female Connector 1,27mm Pitch, vertical
Technische Daten /
Technical Data
Isolierkörper
Thermoplast, nach UL94 V-0
Insulator
Thermoplastic, rated UL94 V-0
Kontaktmaterial
Kupferlegierung
Contact Material
Copper alloy
Kontaktoberfläche
Lt. Oberflächenoptionen, über Ni
Contact Surface
Acc. to plating options, over Ni
Durchgangswiderstand
< 25 mΩ
Contact Resistance
< 25 mΩ
Isolationswiderstand
> 1000 MΩ
Insulation Resistance
> 1000 MΩ
Spannungsfestigkeit
500 V AC
Test Voltage
500 V AC
Temperaturbereich
-55 °C ... +125 °C
Temperature Range
-55 °C ... +125 °C
Verarbeitung

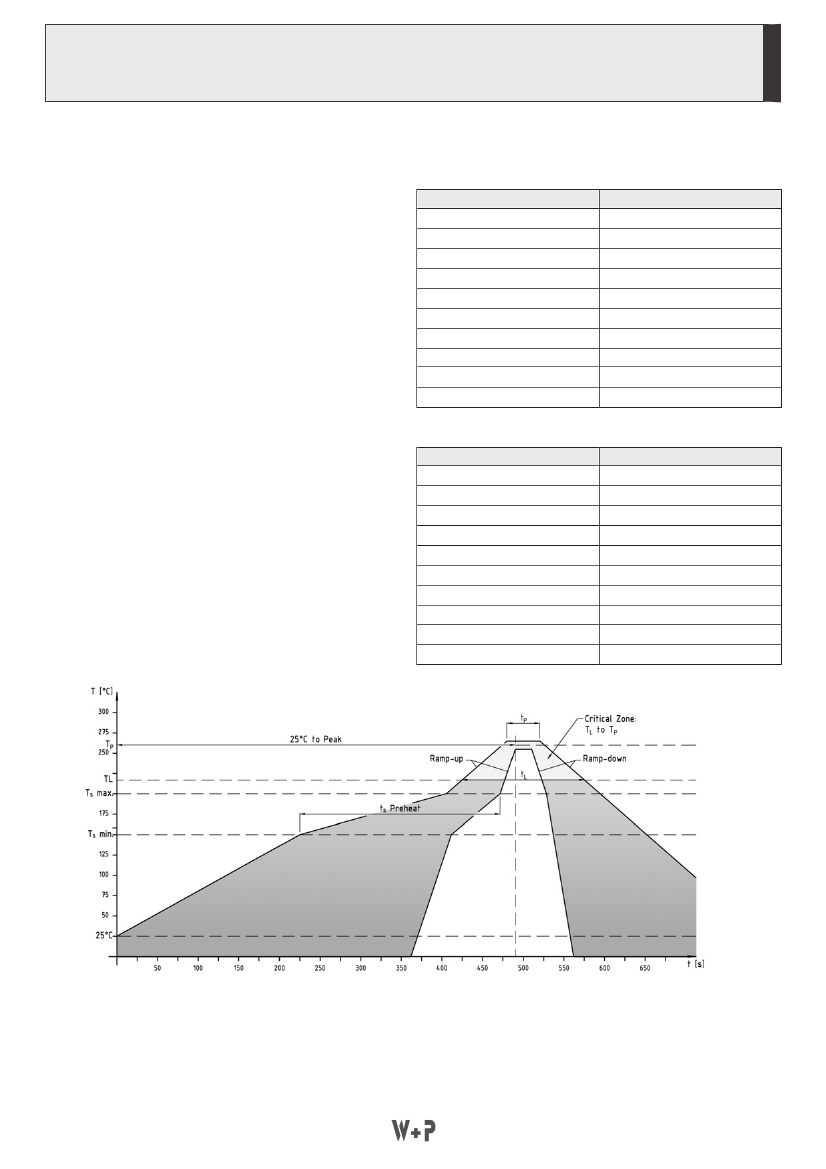

Reflow-Lötverfahren
Processing
Reflow soldering
© W+P PRODUCTS
Gegenstecker /
Mating Connectors:
9014 9015
Series
Contacts
*
Profile
*
Plating
*
Packaging
*
9013
50
12 26 50 68 80
Weitere Polzahlen auf Anfrage
More contact options on request
1
1
H=6.25mm
2
H=9.05mm
3
H=13.65mm
80
60
Sel. Au flash / Sn
80
Sel. Au 30µ'' / Sn
PPTR
ST
TR
PPST
PPTR

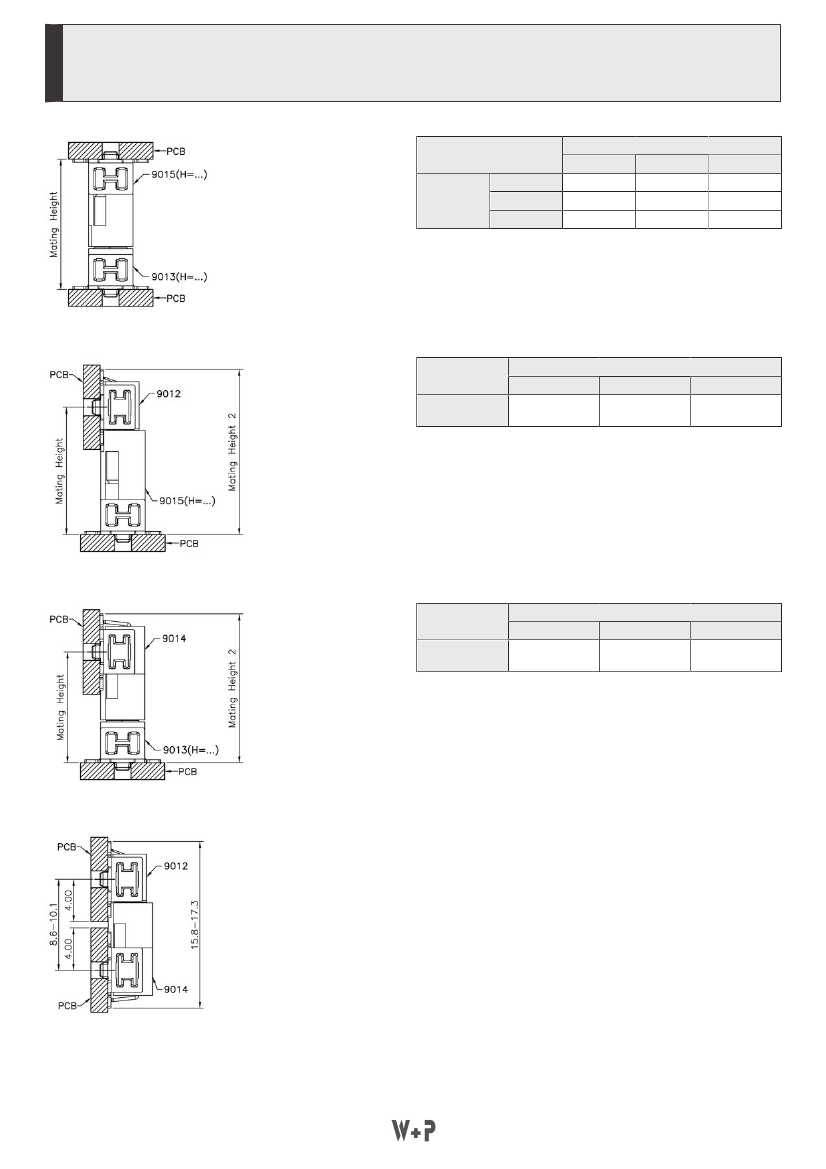

Übersicht über Bauhöhen in den technischen Informationen
Mating Height Chart under technical information
* Dies ist ein
Bestellbeispiel
-
bitte durch Ihre Spezifikationen ersetzen.
* This is an
order example
-
please replace by your specifications.
Lieferformen /
Packaging Options:
ST
In Stangen ohne Pick&Place-Pads /
In tubes w/o Pick&Place-Pads
TR
Tape & Reel ohne PP-Pads /
Tape & Reel w/o PP-Pads
PPST
In Stangen mit PP-Pads /
In tubes with PP-Pads
PPTR
Tape & Reel mit PP-Pads /
Tape & Reel with PP-Pads
TEL +49 5223 98507-0
E-MAIL sales@wppro.com
wppro.com/serie-XXX
wppro.com/series-XXX
