BL21-0483STT-022U: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerMPE-Garry GmbH; Environmental Compliance

Download Datasheet Parametric Compare View All

BL21-0483STT-022U Overview

Board Connector, 22 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Plug

BL21-0483STT-022U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304286460
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.136 inch
subject depth	0.19 inch
body length	0.562 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
insulator material	THERMOPLASTIC
JESD-609 code	e3
Manufacturer's serial number	521
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	22

BL21-0483STT-022U Preview

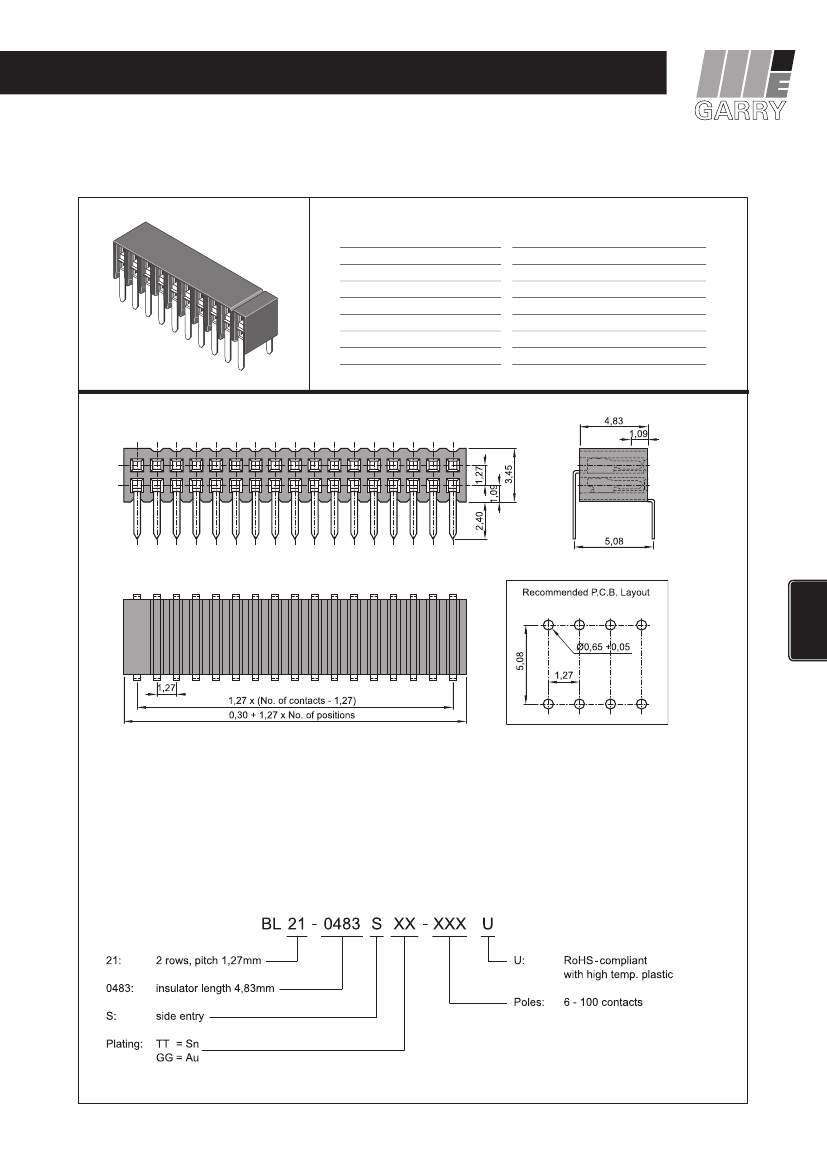

PRODUCT GROUP 8 -

MALE AND FEMALE HEADER 2,00/1,27/1,00/0,80/0,50 mm

FEMALE HEADER 1,27 mm

ID: 349

BL 21-0438S

Series 521

TECHNICAL DATA

Pitch

Insulating Material

Contact Material

Rated Current

Rated Voltage

Withstanding Voltage

Operating Temperature

Maximum Soldering Temperature

1,27 mm

high temp. thermoplast UL94V-0

phosphor bronze

1 Amp.

100 V

RMS

/150 V

DC

500 V

AC

for one minute

-40°C to +105°C

260°C for 10 seconds

All dimensions in mm.

Other dimensions upon request.

MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520

e-mail: vk@mpe-connector.de · www.mpe-connector.de

233

8

| 1,27 mm

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
