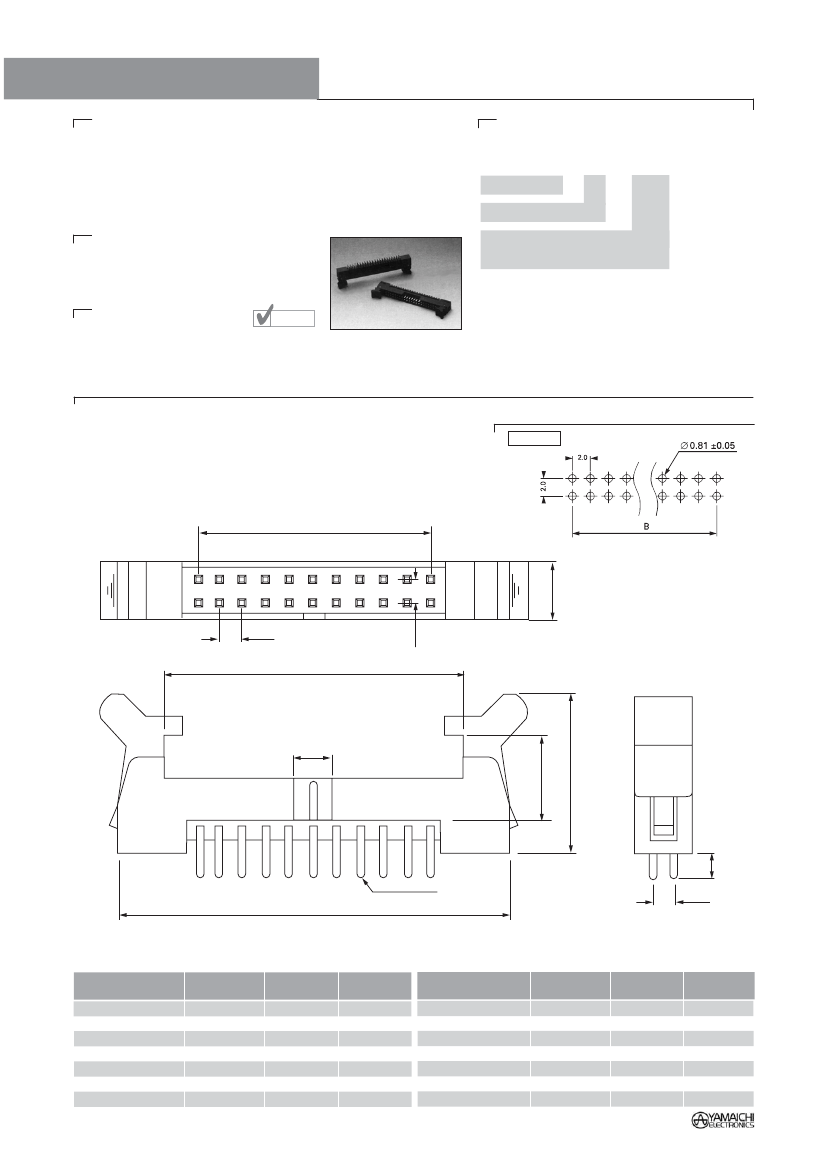

ZP8 Series
Specifications
Voltage Rating:
Current Rating:
Operating Temperature Range:
Withstanding Voltage:
Soldering Temp.:
180° Active Eject Pin Header
Part Number
(Details)
150V AC
1.0A
–40°C to +105°C
500V for 1 minute
260°C / 3 sec.
ZP8
Series No.
- ** - G2T
No. of Contact Pins
Plating:
G2T = Selective Gold
Materials and Finish
Housing:
UL 94V-0 listed
Terminals:
Brass
Contact Plating: Selective Gold over Nickel
Features
Pin count from 10 to 68
RoHS
Outline Connector Dimensions
Recommended PCB Layouts
Top View
B
2.00
C
4.0
16.9
8.7
2.00
6.0
0.5 square pin
2.00
A
Dimensional Information
Part Number
ZP8-10-G2T
ZP8-12-G2T
ZP8-14-G2T
ZP8-16-G2T
ZP8-20-G2T
ZP8-22-G2T
ZP8-24-G2T
Sockets and Connectors
Dim. A
25.7
27.7
29.7
31.7
35.7
37.7
39.7
Dim. B
8.0
10.0
12.0
14.0
18.0
20.0
22.0
Dim. C
15.8
17.8
19.8
21.8
25.8
27.8
29.8
Part Number
ZP8-26-G2T
ZP8-30-G2T
ZP8-34-G2T
ZP8-40-G2T
ZP8-44-G2T
ZP8-50-G2T
ZP8-68-G2T
Dim. A
41.7
45.7
49.7
55.7
59.7
65.7
83.7
Dim. B
24.0
28.0
32.0
38.0
42.0
48.0
66.0
Dim. C
31.8
35.8
39.8
45.8
49.8
55.8
73.8
Trading Division
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
3.0
