ZS4A-24-G2

Description
Board Connector, 24 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Guide Slot, Plug
CategoryThe connector    The connector
File Size62KB,2 Pages
ManufacturerYamaichi Electronics Co., Ltd.
Websitehttp://www.yamaichi.com/
Download Datasheet View All

ZS4A-24-G2 Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Guide Slot, Plug

ZS4A Series
Specifications
Contact Resistance:
Insulation Resistance:
Withstanding Voltage:
Current Rating:
Operating Temp. Range:
Soldering Temp.:
90° TH Socket for PCB Mount
Part Number
(Details)
20mΩ max. at 100mA DC
1,000MΩ min at 500V
500V AC
1A
–40°C to +105°C
230°C / 3 sec.
ZS4A
Series No.
-
**
G2
No. of Contact Pins
(8 to 80)
Mating Face Plating:
G2 =Gold Flash
Materials and Finish
Insulator:
Nylon 6T, glass reinforced, UL 94V-0 rated
Terminals:
Phosphor bronze
Contact Plating: Au Flash
RoHS
Features
Pin count from 6 to 80

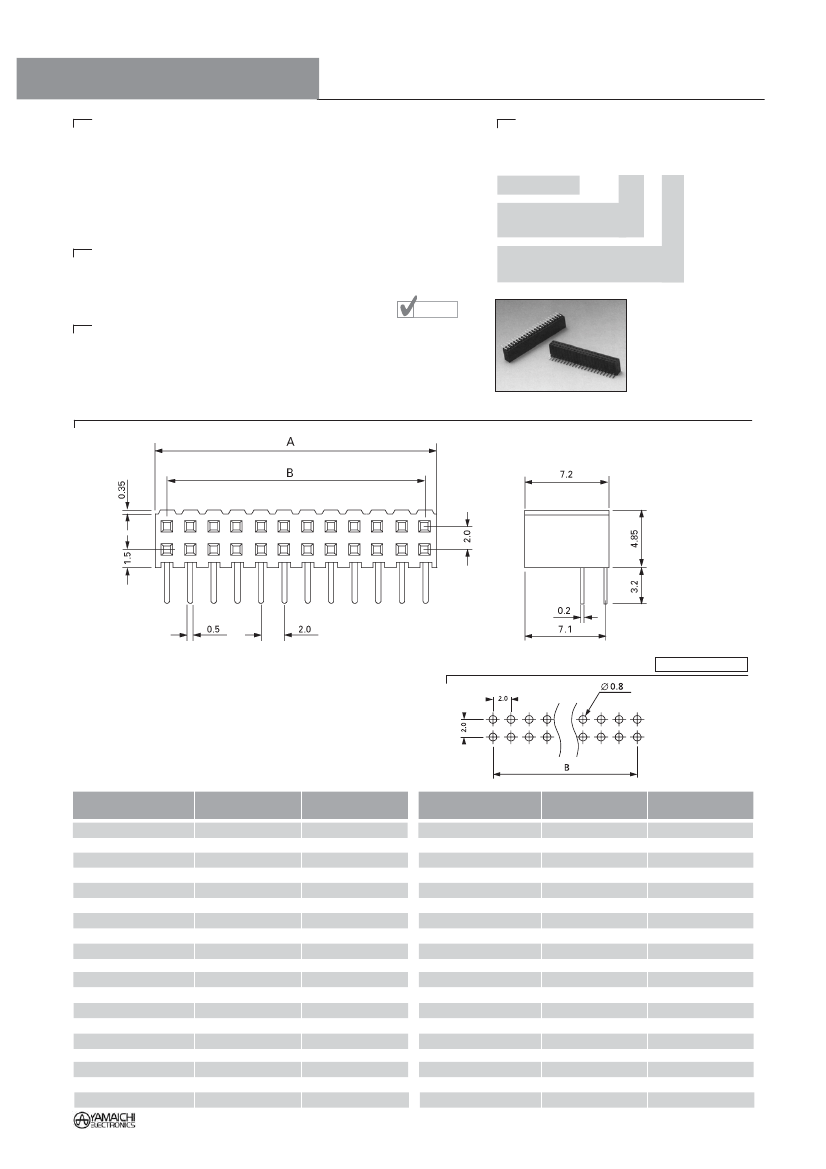

Outline Connector Dimensions
Recommended PCB Layout
Top View
Part Number
ZS4A-06-G2
ZS4A-08-G2
ZS4A-10-G2
ZS4A-12-G2
ZS4A-14-G2
ZS4A-16-G2
ZS4A-18-G2
ZS4A-20-G2
ZS4A-22-G2
ZS4A-24-G2
ZS4A-26-G2
ZS4A-28-G2
ZS4A-30-G2
ZS4A-32-G2
ZS4A-34-G2
ZS4A-36-G2
ZS4A-38-G2
ZS4A-40-G2
ZS4A-42-G2
Trading Division
Dim. A
6.50
8.50
10.50
12.50
14.50
16.50
18.50
20.50
22.50
24.50
26.50
28.50
30.50
32.50
34.50
36.50
38.50
40.50
42.50
Dim. B
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
34.0
36.0
38.0
40.0
Part Number
ZS4A-44-G2
ZS4A-46-G2
ZS4A-48-G2
ZS4A-50-G2
ZS4A-52-G2
ZS4A-54-G2
ZS4A-56-G2
ZS4A-58-G2
ZS4A-60-G2
ZS4A-62-G2
ZS4A-64-G2
ZS4A-66-G2
ZS4A-68-G2
ZS4A-70-G2
ZS4A-72-G2
ZS4A-74-G2
ZS4A-76-G2
ZS3A-78-G2
ZS4A-80-G2
Dim. A
44.50
46.50
48.50
50.50
52.50
54.50
56.50
58.50
60.50
62.50
64.50
66.50
68.50
70.50
72.50
74.50
76.50
78.50
80.50
Dim. B
42.0
44.0
46.0
48.0
50.0
52.0
54.0
56.0
58.0
60.0
62.0
64.0
66.0
68.0
70.0
72.0
74.0
76.0
78.0
Sockets and Connectors
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
