ECS-90-20-5PVX-ATM-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-90-20-5PVX-ATM-TR

ECS-90-20-5PVX-ATM-TR: DescriptionParallel - Fundamental Quartz Crystal; CategoryPassive components Crystal/resonator; File Size605KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-90-20-5PVX-ATM-TR Overview

Parallel - Fundamental Quartz Crystal

ECS-90-20-5PVX-ATM-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7067935344
package instruction	SMD, 2 PIN
Reach Compliance Code	compliant
Other features	TR
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.002%
frequency tolerance	25 ppm
JESD-609 code	e3
load capacitance	20 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	9 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L11.4XB4.7XH2.6 (mm)/L0.449XB0.185XH0.102 (inch)
Series resistance	60 Ω
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

Cost effective

2.6 mm Height

Industry Standard Footprint

Pb Free/RoHS Compliant

MSL 1

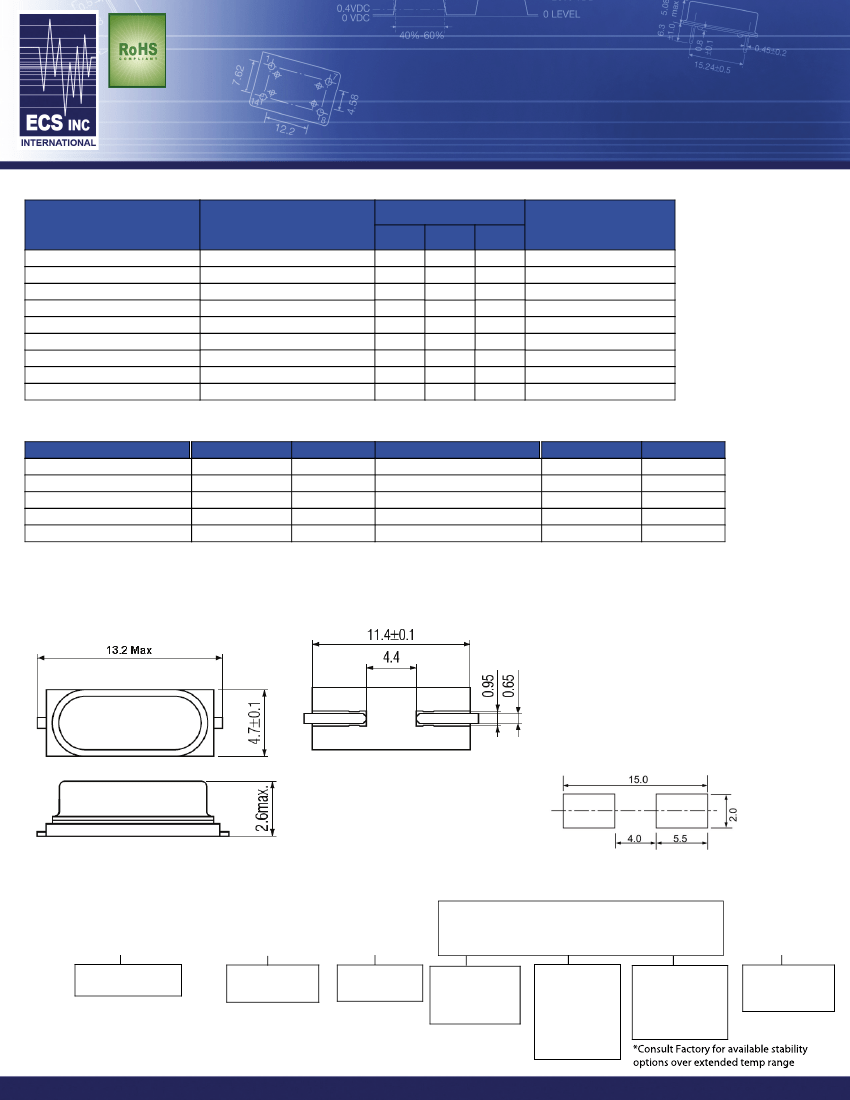

CSM-7SSX

Low Profile SMD Crystal

The CSM-7SSX is an excellent choice for a low cost SMD

crystal. The CSM-7SSX (5PVX) has a case height of 2.6 mm

Max. in a resistance weld metal package.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range

Frequency Tolerance

Frequency Stability

Shunt Capacitance

Load Capacitance (CL)

Drive Level

Operating Temperature

Storage Temperature

Aging (Per Year)

CONDITIONS

at +25°C

Standard -10 to +70°C

Specify in P/N

CSM-7SSX

MIN

3.57

TYP

MAX

50.00

± 30

± 50

Series

500

+70

+125

±5

UNITS

MHz

ppm

µW

°C

ppm

-10

-55

@ +25°C ±3°C

EQUIVALENT SERIES RESISTANCE/MODE OF OSCILLATION

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

3.57 ~ 4.999

Fundamental

150

13.000 ~ 19.999

Fundamental

5.000 ~ 5.999

Fundamental

120

20.000 ~ 30.000

Fundamental

6.000 ~ 6.999

Fundamental

100

26.000 ~ 39.999

3rd Overtone

100

7.000 ~ 8.999

Fundamental

40.000 ~ 50.000

3rd Overtone

9.000 ~ 12.999

Fundamental

PACKAGE DIMENSIONS (mm)

Figure 1) Top, Side, and Bottom views

Figure 2) Suggested Land Pattern

PART NUMBERING GUIDE: Example ECS-200-20-5PVX-TR

ECS - Frequency Abbreviation - Load Capacitance

200 = 20.000 MHz

See P/N Guide

20 =20 pF

S=Series

- Package

5PVX = 2.6 mm

Custom Options

Tolerance

A= ± 25 ppm

J= ± 20 ppm

R= ± 15 ppm

C= ± 10 ppm

*Stability

D= ± 100 ppm

E= ± 50 ppm

G= ± 30 ppm

H= ± 25 ppm

T= ± 20 ppm

W= ± 15 ppm

K= ± 10 ppm

Temperature

M= -20 ~ +70°C

N= -40 ~ +85°C

P= -40 ~ +105°C

S= -40 ~ +125°C

U= -55 ~ +125°C

Packaging

TR= Tape

& Reel

1K/Reel

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
