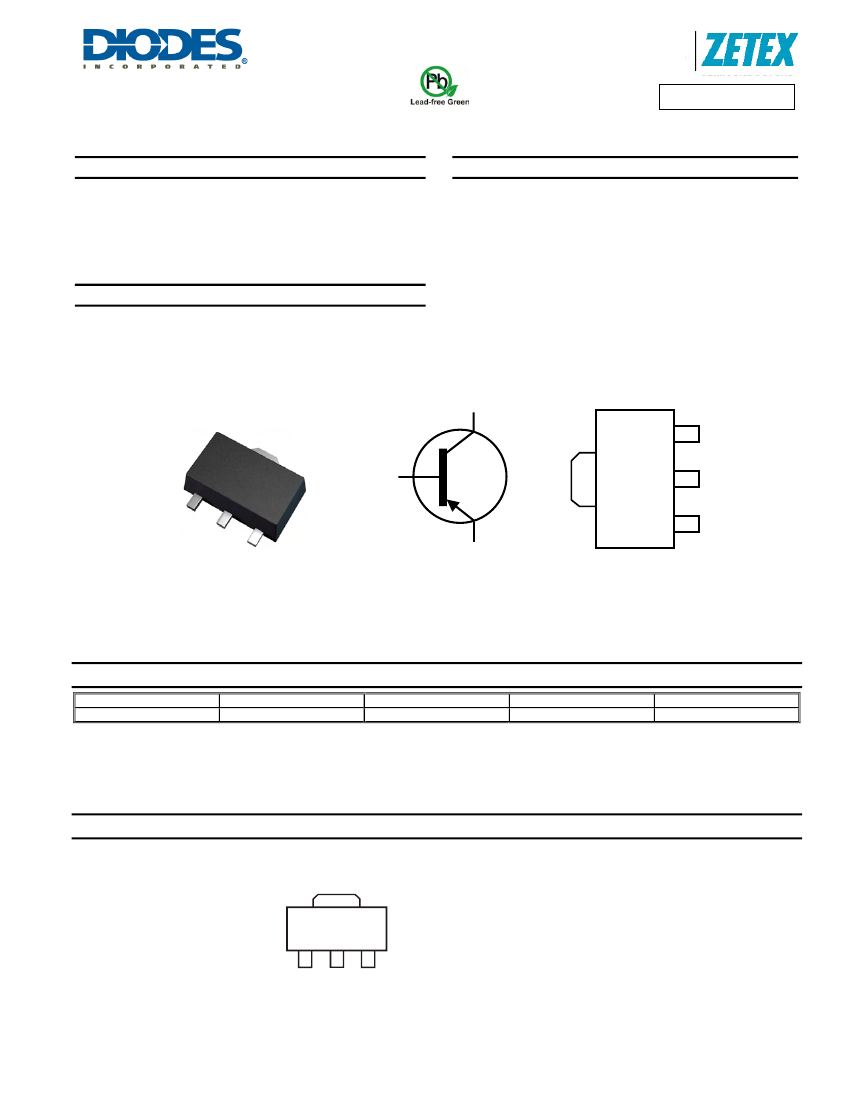

ZXTP4003Z
100V PNP LED DRIVING TRANSISTOR IN SOT89
Features
•
•
•
•
•
•
BV
CEO
> -100V
Maximum continuous current I
C
= -1A
h
FE
> 100 @ I
C
= -150mA, V
CE
= -0.2V
Lead Free, RoHS Compliant (Note 1)
Halogen and Antimony Free "Green" Device (Note 2)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
•
Case: SOT89
Case material: molded Plastic. “Green” molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish
Weight: 0.052 grams (Approximate)
Applications
•
LED TV backlight
SOT89
C
E
B
C
C
B
E
Top View
Device Symbol
Top View
Pin-Out
Ordering Information
(Note 3)
Product
ZXTP4003ZTA
Notes:
Marking
1R7
Reel size (inches)
7
Tape width (mm)
12
Quantity per reel
1000 units
1. No purposefully added lead.
2. “Green” devices, Halogen and Antimony Free, Diodes Inc’s “Green” Policy can be found on our website at http://www.diodes.com
3. For Packaging Details, go to our website at http://www.diodes.com.
Marking Information
1R7
1R7 = Product type Marking Code
ZXTP4003Z
Datasheet Number: DS35460 Rev. 1 - 2
1 of 5
www.diodes.com
December 2011
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTP4003Z
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Pulse Current (Note 4)
Base Current
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
Value
-100
-100
-7
-1
-3
-500
Unit
V
V
V
A
A
mA
Thermal Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic
Power Dissipation (Note 5)
Thermal Resistance, Junction to Ambient (Note 5)
Thermal Resistance, Junction to Leads (Note 6)
Operating and Storage Temperature Range
Notes:
Symbol
P
D
R
θJA
R
θJL
T
J,
T
STG
Value
1.5
83
17.46
-55 to +150
Unit
W
°C/W
°C/W
°C
4. Measured under pulsed conditions. Pulse width = 300µs. Duty cycle
≤
2%.
5. For a device surface mounted on 25mm X 25mm FR4 PCB with high coverage of single sided 1 oz copper, in still air conditions
6. Thermal resistance from junction to solder-point (on the exposed collector pad).

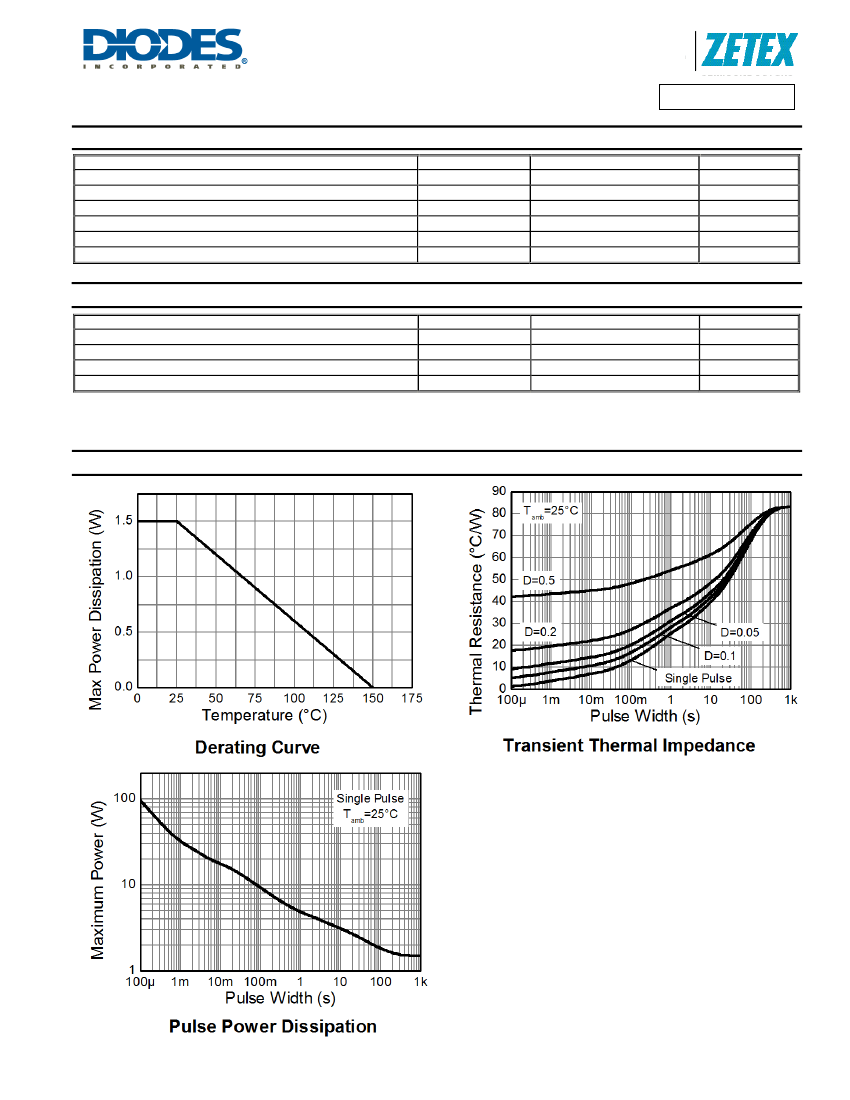

Thermal Characteristics and Derating Information
ZXTP4003Z
Datasheet Number: DS35460 Rev. 1 - 2
2 of 5
www.diodes.com
December 2011
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTP4003Z

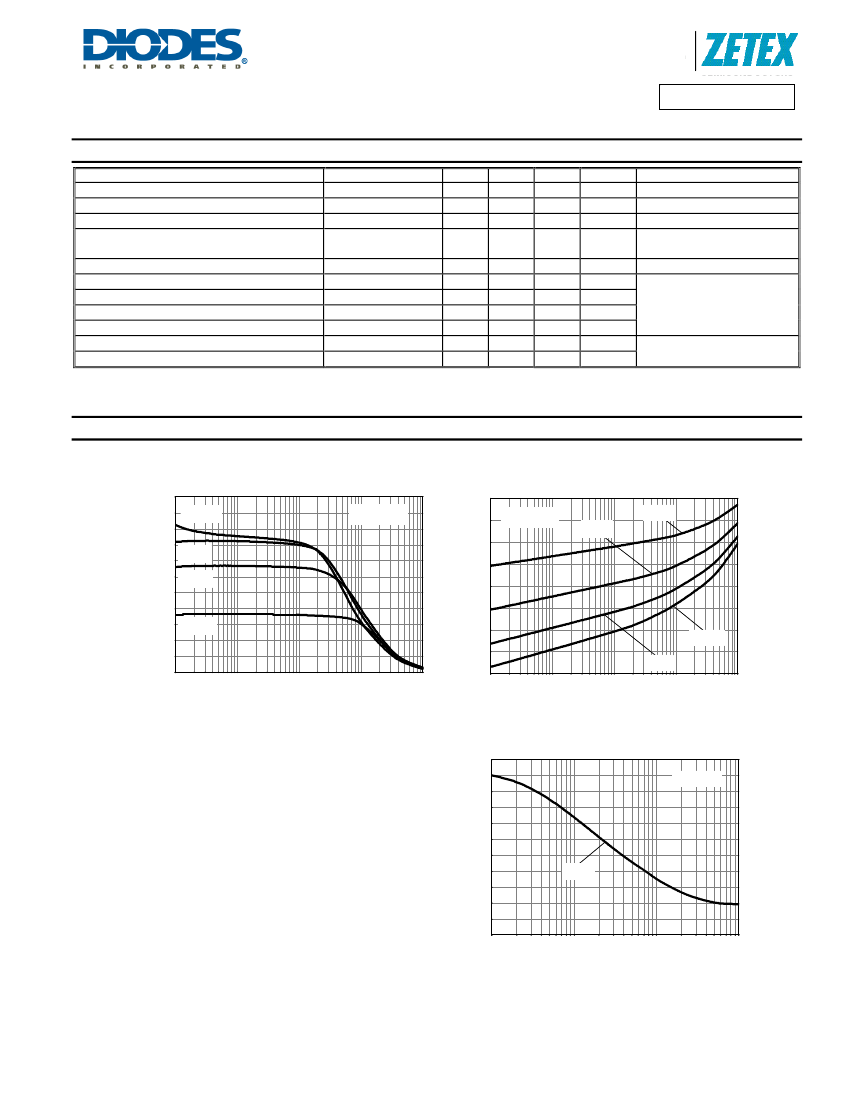

Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic
Collector-Emitter Breakdown Voltage (Note 7)
Collector Cut-off Current
Emitter Cut-off Current
Static Forward Current Transfer Ratio (Note 7)
Base-Emitter Turn-On Voltage (Note 7)
Delay Time
Rise Time
Storage Time
Fall Time
Storage Time
Fall Time
Notes:
Symbol
BV
CEO
I
CBO
I
EBO
h
FE
V
BE(on)
t
(d)
t
(r)
t
(s)
t
(f)
t
(s)
t
(f)
Min
-100
-
-
60
100
-
-
-
-
-
-
-
Typ
-170
-
-
133
112
-0.71
378
388
1348
382
75
363
Max
-
-50
-50
-
-
Unit
V
nA
nA
-
V
ns
ns
ns
ns
ns
ns
-0.95
-
-
-
-
-
-
Test Condition
I
C
= -10mA
V
CB
= -100V
V
EB
= -7V
I
C
= -85mA, V
CE
= -0.15V
I
C
= -150mA, V
CE
= -0.2V
I
C
= -150mA, V
CE
= -0.2V
V
CC
= -80V, I
C
= -150mA,f
-I
B2
= 1.5mA, V
CE(ON)
= -0.2V
V
CC
= -80V, I
C
= -150mA,
-I
B2
= -1.5mA, V
CE(ON)
= -4V
7. Measured under pulsed conditions. Pulse width = 300
µs. Duty cycle
≤
2%
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
1.0
500
125°C
V
CE
= -0.2V
V
CE
= -0.2V
-55°C
25°C
Typical Gain (h
FE
)
400
300
200
0.8
85°C
25°C
-V
BE(on)
(V)
0.6
-55°C
100
0
100µ
0.4
85°C
125°C
1m
10m
100m
1
0.2
100µ
1m
10m
100m
1
-I
C
Collector Current (A)
-I
C
Collector Current (A)
h
FE
v I
C
50
V
BE(on)
v I
C
f = 1MHz
Capacitance (pF)
40
30
20
10
0
100m
Cobo
1
10
100
-Voltage(V)
Capacitance v Voltage
ZXTP4003Z
Datasheet Number: DS35460 Rev. 1 - 2
3 of 5
www.diodes.com
December 2011
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTP4003Z
