970-012
PowerTrip
TM
Hermetic Bulkhead Feedthrough
Receptacle with Square Flange Mounting
How to Order Information
Series 970
PowerTrip
TM
970-012 Hemetic Receptacles

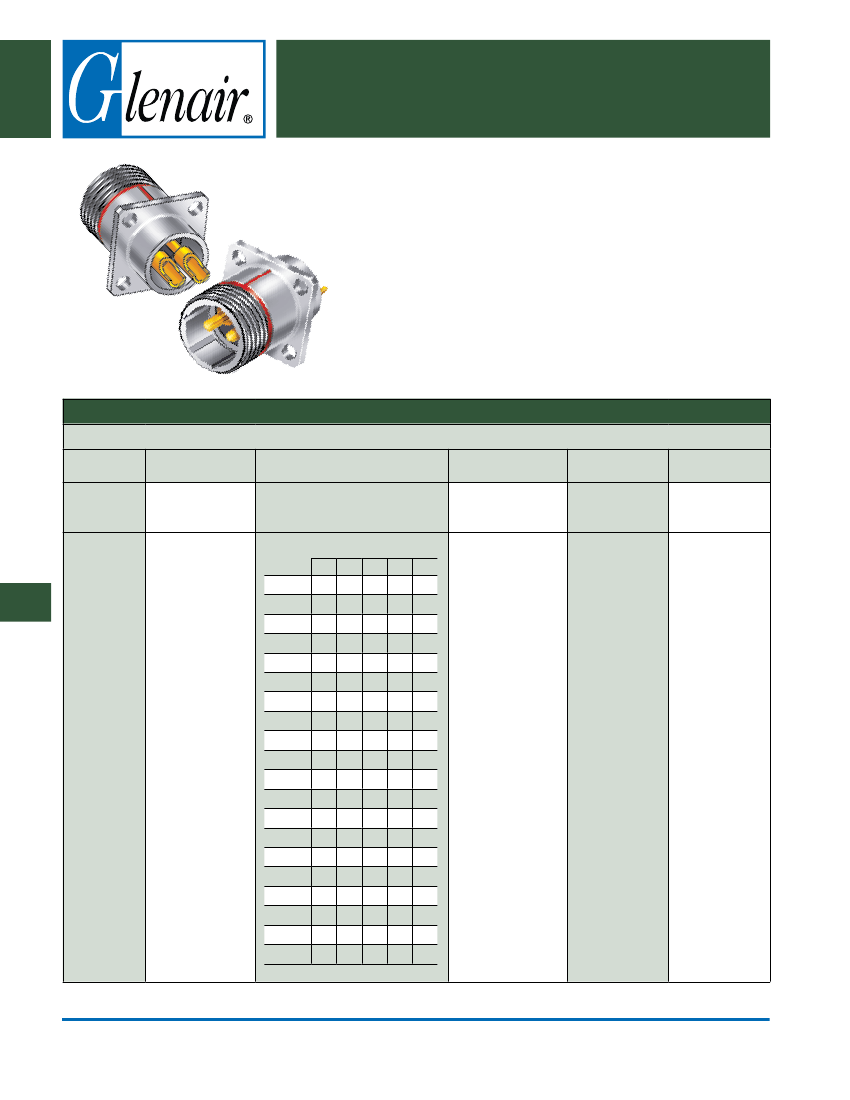

Series 970 PowerTrip™ hermetic receptacles feature 316L stainless steel
shells and compression glass insulators. Solder cup contacts are nickel-iron
alloy and are non-removable. Socket contacts have copper alloy louverband
spring for multiple points of electrical contact. Coupling hreads are triple-
start ACME type. Contacts are silver plated high conductivity copper alloy,
or choose gold-plated contacts for improved corrosion protection in
space or petrochemical environments. Fluorosilicone rubber face seal on
pin connector. Stainless stell shells are passivated, or choose nickle plating
for improved shell-to-shell conductivity and EMI protection. Hermeticity is
1 X 10
-7
cc/sec maximum helium leak rate with one atmosphere pressure
differential.
hoW to oRDER
sample part Number
970-012
series
Z1
shell Material
and Finish
32-5
shell size - Insert
Arrangement
Contact Contact size and Qty
Arr.
#16 #12 #8 #4 #1/0
2
2
2
3
4
2
4
3
3
2
3
5
4
3
5
2
3
4
4
2
3
2
5
3
3
4
5
2
p1
Contact type
and plating
N
Mounting
hole option
-1
Key
position
M
Series 970
Receptacle,
Square
Flange
Panel
Mounting
970-012
stainless
steel shell
Passivated SST
Electrodeposited
Nickel over SST
Z1
ZL
18-2
18-4
20-3
20-4
20-5
20-7
24-2
24-3
24-5
24-6
24-A6
28-4
28-9
32-2
32-3
32-4
32-5
32-6
36-4
40-5
Pin Contacts,
Silver Plating
Pin Contacts,
Gold Plating
Socket Contacts,
Silver Plating
Socket Contacts,
Gold Plating
p1
Thru-Hole
N
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
-1
p2
s1
-2
-3
-4
-5
s2
-6
© 2013 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
M-8
Receptacle with Square Flange Mounting

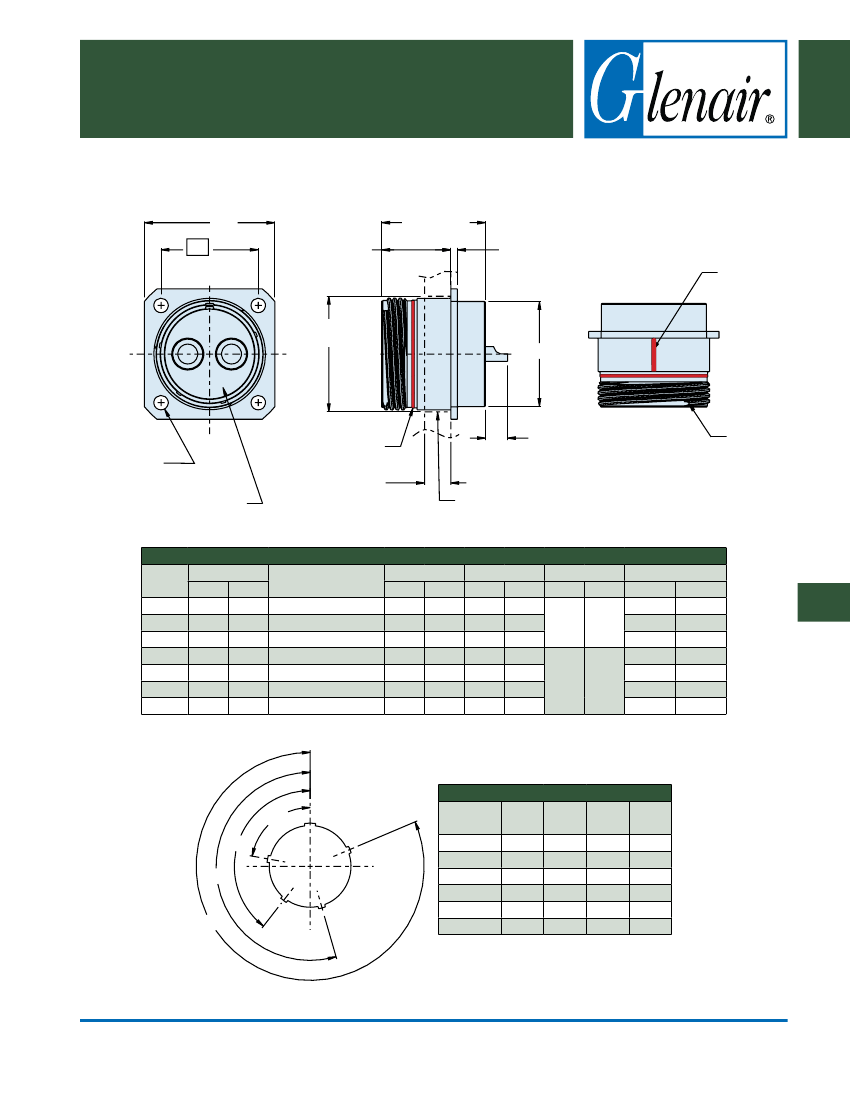

970-007 Feed-Thru Receptacle Connector Dimensions
A
TYP
D
TYP
1.240 (31.50)
1.210 (30.73)
1.860 (47.24)
MAX
.130 (3.30)
.100 (2.54)
RED COLOR
STRIPE
B
A
Ø F MTG.
HOLE CUTOUT
ØC
Ø.E±.005 (0.13)
4 PLACES
INERT ARRANGEMENT
FOR REFERENCE ONLY
RED COLOR BAND
.470 (11.94) MAX
PANEL THICKNESS
.405 (10.29) MAX (SOCKET)
.380 (9.65) MAX (PIN)
B THREAD
MOUNTING PANEL
shell
size
18
20
24
28
32
36
40
øA
In.
mm.
1.383
1.508
1.718
2.138
2.328
2.578
2.828
35.13
38.30
43.64
54.31
59.13
65.48
71.83
B
Mating thd.
1.125-.1P-.3L-TS-2A
1.250-.1P-.3L-TS-2A
1.500-.1P-.3L-TS-2A
1.750-.1P-.3L-TS-2A
2.000-.1P-.3L-TS-2A
2.250-.1P-.3L-TS-2A
2.500-.1P-.3L-TS-2A
DIMENsIoNs
øC
In.
mm.
.972
1.116
1.300
1.604
1.875
2.093
2.310
D BsC
In.
mm.
25.78
28.96
32.54
39.83
44.04
50.39
56.74
ø E thru
In.
mm.
.146
3.70
ø F Mtg. hole
In.
mm.
1.187
1.374
1.562
1.874
2.062
2.302
2.562
30.15
34.90
39.67
47.60
52.37
58.47
65.07
24.69 1.015
28.35 1.140
33.02 1.281
40.74 1.568
47.63 1.734
53.16 1.984
58.67 2.234
.170
4.30
KEY posItIoNs
A°
B°
C°
D°
position
1
2
3
4
5
6
A0
80
135
49
66
62
79
B0
142
170
169
140
145
153
C0
196
200
200
200
180
197
D0
293
310
244
257
280
272
© 2013 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
M-9
Series 970
PowerTrip
TM
970-012
PowerTrip
TM
Hermetic Bulkhead Feedthrough
