M80-5401205 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-5401205

M80-5401205: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Guide Slot, Black Insulator, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size333KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-5401205 Overview

Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Guide Slot, Black Insulator, Receptacle, LEAD FREE

M80-5401205 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1784629892
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	HOLE .086-.098
body width	0.238 inch
body length	0.866 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

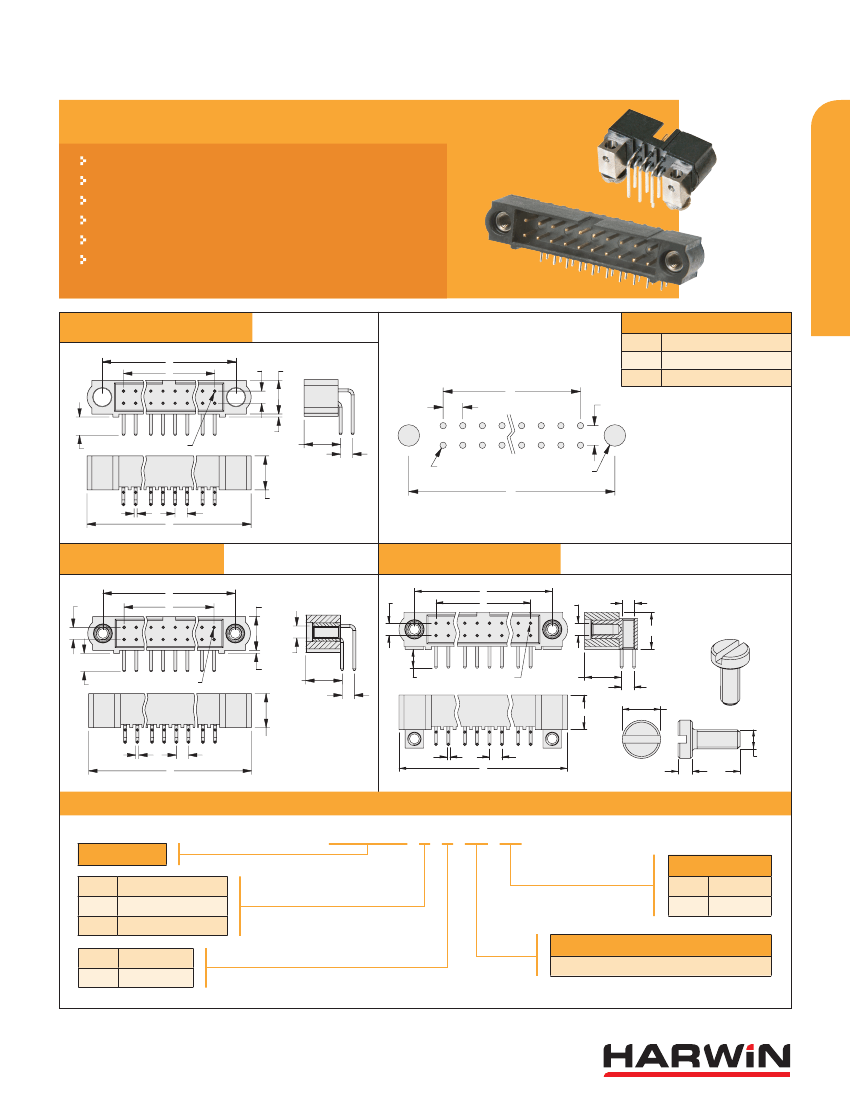

Datamate J-Tek Connectors

Male Horizontal Throughboard

DATAMATE J-TEK

CALCULATION

2.00

5.55

2.00

0.50

Tail

No.1 contact

6.00

2.00

Polarized housings.

Fully shrouded contacts.

Jackscrews are assembled where specified.

Choice of throughboard termination length.

Board Mount provides PCB strain relief.

Mates with female Datamate J-Tek connectors with

compatible jackscrews.

WITHOUT JACKSCREWS

B + 12

Total no. of contacts - 2

B+7

2.00

Ø0.65-0.75

Ø2.20 min

(for Board Mount)

5.60

Ø0.50

2.00

Recommended PC Board Pattern

WITH JACKSCREWS

2.00

5.55

WITH BOARD MOUNT

2.00

6.05

0.50

Board Mount

Bolt, 2 per

connector

Tail

No.1 contact

6.00

2.00

Tail

No.1 contact

6.00

2.00

Ø4.00

5.60

Ø0.50

2.00

Ø0.50

2.00

1.50 max

Tail

+0.50

HOW TO ORDER

M80 - 5 X X XX XX

SERIES CODE

With Jackscrews

With Board Mount

Without Jackscrews

3mm Tails

4.5mm Tails

FINISH

Gold

Gold + Tin

TOTAL NO. OF CONTACTS

04, 06, 08, 10, 12, 14, 20, 26, 34, 42, 50

All dimensions in mm.

www.harwin.com

115

M80-5401205 Related Products

	M80-5401205	M80-5504205	M80-5312605
Description	Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Guide Slot, Black Insulator, Receptacle, LEAD FREE	Board Connector, 42 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,	Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, M2x0.4, Black Insulator, Receptacle,
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Objectid	1784629892	1215474441	1215474409
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
body width	0.238 inch	0.238 inch	0.238 inch
body length	0.866 inch	2.047 inch	1.417 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT APPLICABLE
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT APPLICABLE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO
Durability	500 Cycles	500 Cycles	500 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e4	e4	e4
MIL compliance	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO
Installation option 1	GUIDE SLOT	LOCKING	M2X0.4
Installation option 2	LOCKING	JACKSCREW	JACKSCREW
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.177 inch
Terminal pitch	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	12	42	26
UL Flammability Code	94V-0	94V-0	94V-0
Plating thickness	30u inch	30u inch	-
subject depth	-	0.315 inch	0.315 inch
Match contact row spacing	-	0.079 inch	0.079 inch
Rated current (signal)	-	3 A	3 A
