254203: DescriptionFederleiste M12 B Cod; File Size64KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet View All

254203 Overview

Federleiste M12 B Cod

Preview

Download Datasheet

View All

Verpackt in Gurtverpackung

Einbaulage beachten

Zapfen rechts

Tape on Reel Packaging

4,5

Verpackungseinheit: 100 Stück

Packaging unit: 100 pcs

7,2

Abspulrichtung -

Reel off Direction

12,84

±0,25

Pad

150

330

Layout - Vorschlag

2,5

PCB - Layout proposal

13,3

+0,1

+0,2

±0,05

1,9

1,1

-0,03

3,54

1,5

-0,03

3,54

2,25

454951

254206

5 Pol.

Gurtverpackung mit Pad /

Tape on Reel Packaging with Pad

Gurtverpackung /

Tape on Reel Packaging

Schüttgut / bulk

254205

+0,1

+0,07

0,03

-0,03

7,9

2,1

5,1

1,35

1,4

-0,05

±0,1

-0,05

Koplanarität aller Kontakte und Clip <= 0,1mm

max.12,6

Coplanarity of all contacts and clips <= 0,1mm

Lot : 100pcs, bulk packaging (air cushion bag)

Proprietary notice pursuant to ISO 16016 to be observed.

Teile : 100Stck. in Luftpolsterbeutel/Schüttgut

Ident-Nr.

Tolerances

All Dimensions

in mm

Typ

5:1

Bemerkung

Information:

Scale

SPC-Maß: Prüfmaße der Kategorie /1

/1 Für SPC-Maße muss eine x/s Regelkarte geführt werden mit

Nachweis der Prozessfähigkeit in der Serie (Cpk) oder 100% - Prüfung

Prüfmaß: Prüfmaße der Kategorie /2 und /3

/2 Für Prüfmaße muss eine x/s Regelkarte geführt werden

/3 Prüfmaße werden serienbegleitend attributiv (i.O. / n.i.O.) geprüft

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

11.07.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

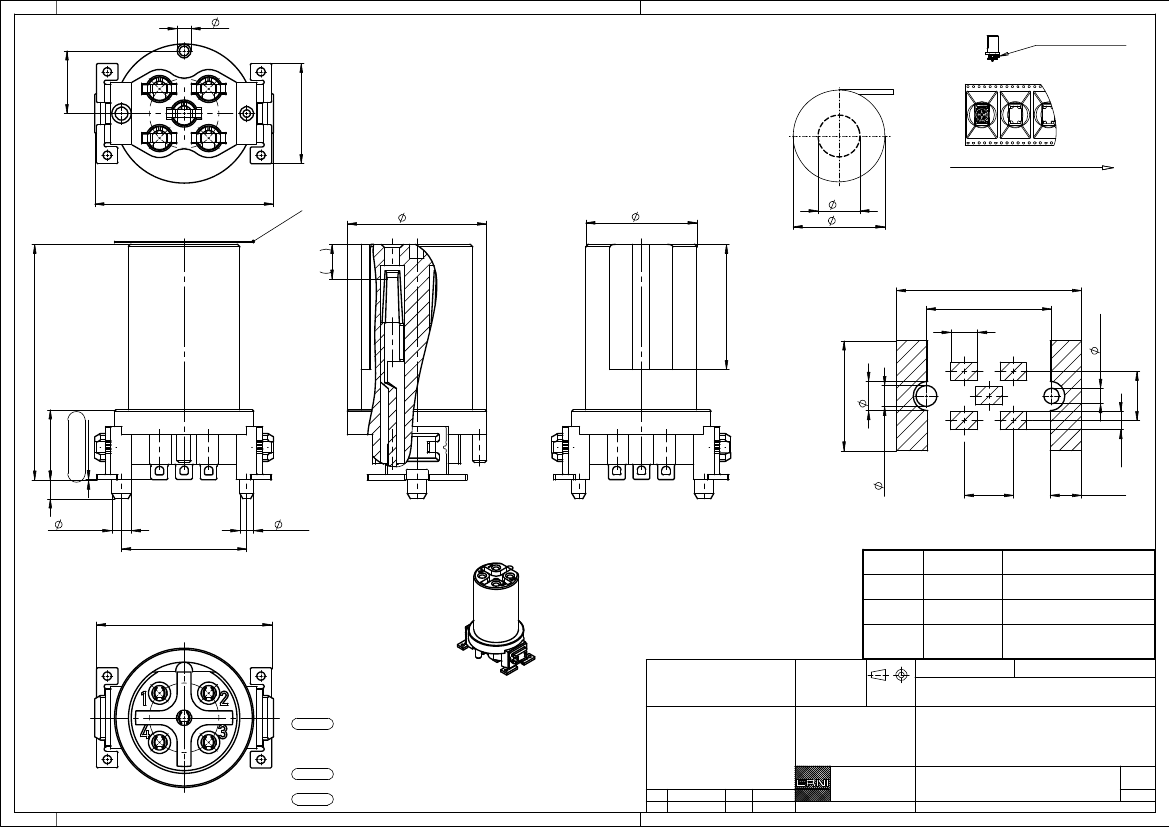

Federleiste M12 B Cod.

5 polig 17mm Type SMD

www.ERNI.com

Class

254203

M12

1,3

+0,1
