SCHNITT A-A
M 12x1
A
10,4
9
A
für O-Ring 14x1
M 14x1
9,55
R9
,5
254739
Ident.-Nr.
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
galv. Ni
Oberfläche
Tolerances
SW17
3
ohne Dichtringfläche, für Abstand 9mm
/ distance 9mm
Bemerkung
Scale
All Dimensions
in mm
Information:
2:1
CuZn
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
d
Index
06.09.2010
Date
Designation
Subject to modification without
prior notice.
Drawing will not be updated.

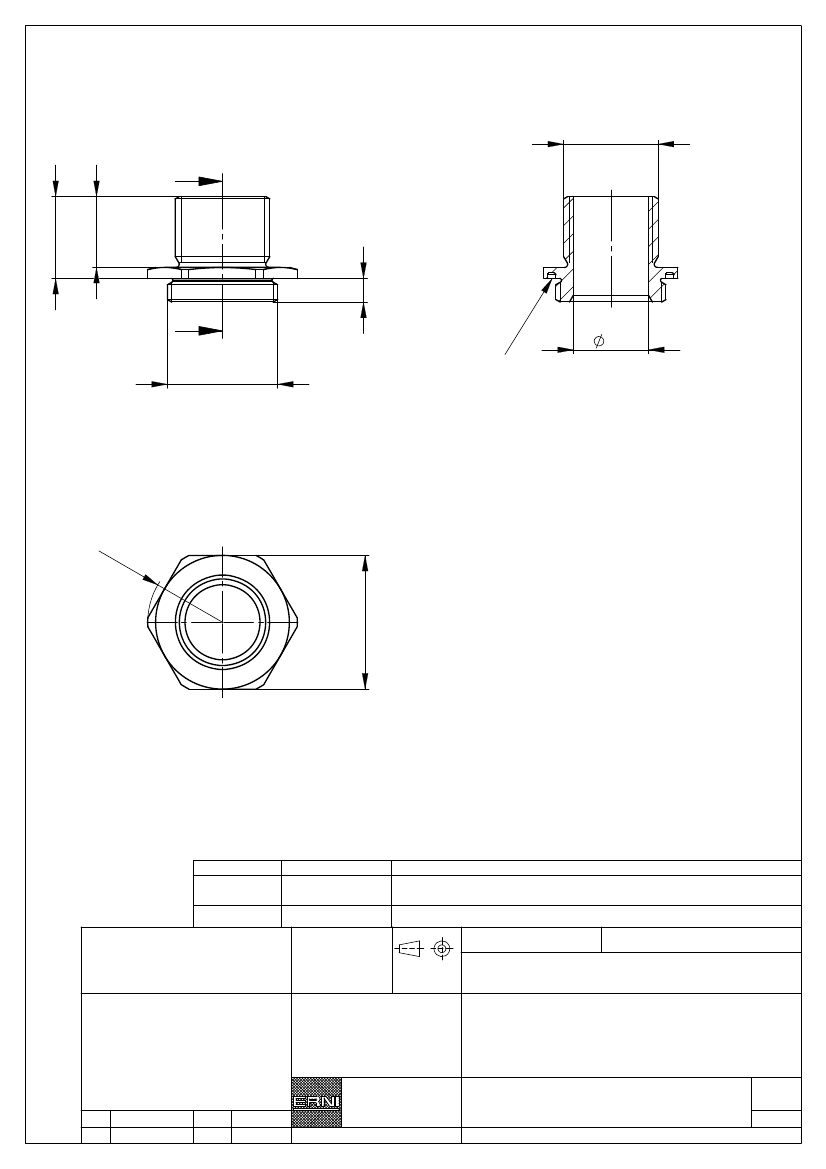

M12 Gehäuseteil
für Messerleiste
www.ERNI.com
Class
254740
MRDEZT
I
A4
