Radial Through-Hole Multilayer Ceramic Capacitors

Goldmax, 300 Series, Radial, Conformally Coated,

C0G Dielectric, 25 – 250 VDC (Automotive Grade)

Overview

KEMET’s Goldmax conformally coated radial leaded

ceramic capacitors in C0G dielectric feature a 125°C

maximum operating temperature. The Electronics

Industries Alliance (EIA) characterizes C0G dielectric as a

Class I "stable" material. Components of this classification

are temperature compensating and are suited for resonant

circuit applications or those where Q and stability of

capacitance characteristics are required. C0G exhibits no

change in capacitance with respect to time and voltage and

boasts a negligible change in capacitance with reference

to ambient temperature. Capacitance change is limited to

±30ppm/°C from −55°C to +125°C.

These devices meets the flame test requirements outlined

in UL Standard 94V–0 and the demanding Automotive

Electronics Council's AEC–Q200 qualification requirements.

Benefits

• Radial leaded form factor

• Conformally coated

• Encapsulation meets flammability standard UL 94V–0

• 0.100", 0.200" and 0.250" lead spacing

• Operating temperature range of −55°C to +125°C

• Lead (Pb)-free, RoHS and REACH compliant

• DC voltage ratings of 25 V, 50 V, 100 V, 200 V and 250 V

• Capacitance offerings ranging from 1.0 pF up to 0.22 μF

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Ordering Information

C

Ceramic

320

Style/Size

315

316

317

318

320

321

322

323

324

325

326

327

328

330

331

333

335

336

C

Specification/

Series

C=

Standard

153

Capacitance

Code (pF)

First two digits

represent

significant

figures. Third

digit specifies

number of

zeros.

J

5

G

5

Design

5=

Multilayer

T

Lead

Finish

2

T=

100%

Matte Sn

A

Failure

Rate

A=

N/A

9170

Packaging/Grade

(C-Spec)

Automotive Grade

See

"Packaging

C-Spec

Ordering

Options Table"

Capacitance

Voltage

Dielectric

Tolerance

1

D = ±0.5 pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

3 = 25

5 = 50

1 = 100

2 = 200

A = 250

G=

C0G

1

Additional capacitance Tolerance offerings may be available. Contact KEMET for details.

For Overmolding applications please contact your KEMET representative.

One world. One KEMET

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

C1052_GOLDMAX_C0G_AUTO • 10/25/2019

1

Radial Through-Hole Multilayer Ceramic Capacitors

Goldmax, 300 Series, Radial, Conformally Coated, C0G Dielectric, 25 – 250 VDC (Automotive Grade)

Benefits cont.

• Available capacitance Tolerances of ±0.5 pF, ±1%, ±2%,

±5%, and ±10%

• Extremely low ESR and ESL

• High thermal stability

• High ripple current capability

• No capacitance change with respect to applied rated DC

voltage

• Negligible capacitance change with respect to temperature

from −55°C to +125°C

• No capacitance decay with time

• Non-polar device, minimizing installation concerns

• 100% pure matte tin-plated lead finish allowing for

excellent solderability

• Automotive (AEC–Q200) grade

Applications

Typical applications include critical timing, tuning, circuits requiring low loss, circuits with pulse, high current, decoupling,

bypass, filtering, transient voltage suppression, blocking and energy storage.

Application Notes

These devices are not recommended for use in overmold applications and/or processes.

Packaging C-Spec Ordering Options Table

Packaging Type

1

Bulk Bag Automotive Grade

12" Tape & Reel (16.0 ±0.5 mm lead length)

12" Tape & Reel (18.0 mm minimum lead length)

Ammo Pack (16.0 ±0.5 mm lead length)

Ammo Pack (18.0 mm minimum lead length)

1

Packaging/Grade

Ordering Code (C-Spec)

9170

9170 (7301)

9170 (7303) and 9170 TR

9170 (7305)

9170 (7317)

Default packaging is "Bulk Bag" with ordering code 9170 for Automotive Grade. Bulk bag option is required for Size/Style C321 &C331.

"Tape and Reel" packaging option is not available for Size/Style C321 and C331. For more information see "Packaging Quantities".

1

"Ammo Pack" packaging option is not available for Size/Style C321 and C331. For more information see "Packaging Quantities".

1

"Ammo Pack" and "Tape and Reel" packaging options have the same lead tape configuration. For more information see "Tape & Reel Packaging

Information".

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

C1052_GOLDMAX_C0G_AUTO • 10/25/2019

2

Radial Through-Hole Multilayer Ceramic Capacitors

Goldmax, 300 Series, Radial, Conformally Coated, C0G Dielectric, 25 – 250 VDC (Automotive Grade)

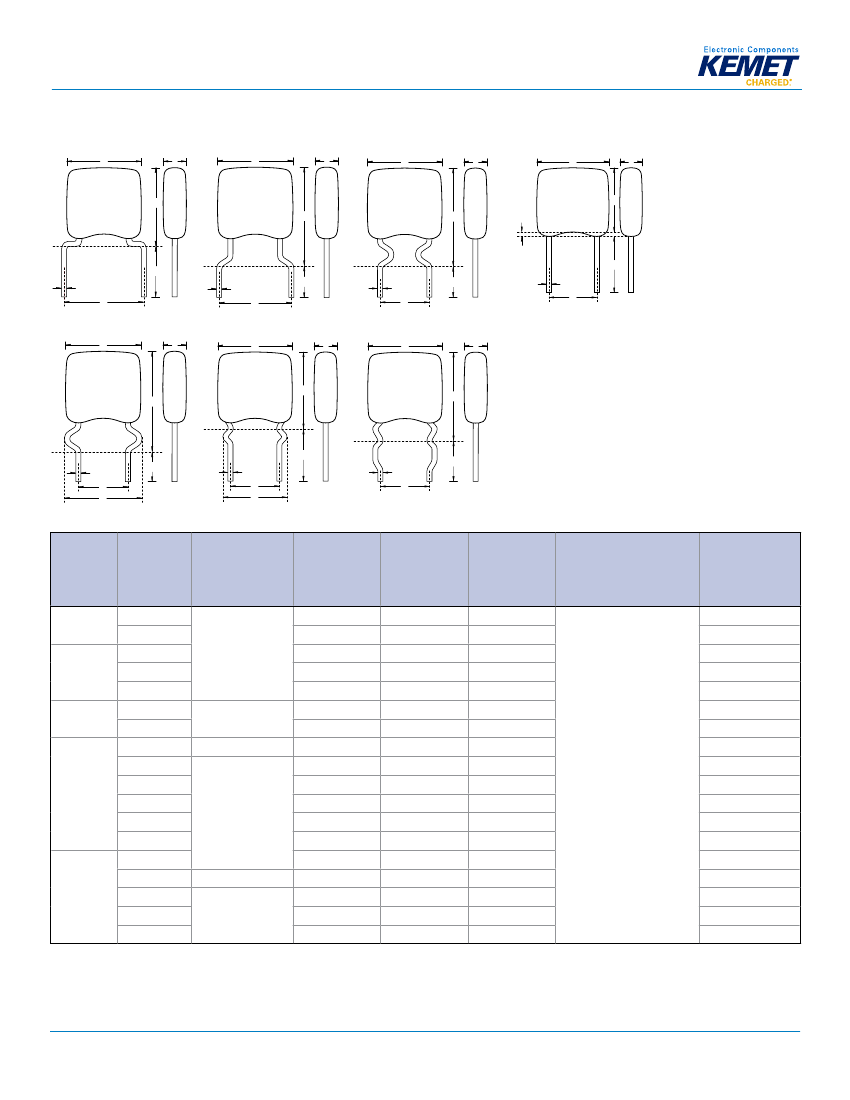

Dimensions – Inches (Millimeters)

Shoulder Bend (Short)

L

C317

C330*

C321

C317

C331*

C322

C321

C340*

C330*

C322

C350

C331*

Seating Plane

T

Shoulder Bend (Tall)

L

C318

C323

C328

T

L

Inside Kink

T

L

Straight

T

H

C333

H

C340:

0.10 max

(2.54 mm)

C315

C320

C330*

C331*

C340*

H

LL

F

S

Seating Plane

F

S

LL

Seating Plane

All Others:

0.06 max

(1.52 mm)

LL

F

S

F

S

LL

L

C316

C326

C327

C336

C346

C356

Outside Kink

T

Snap-In Type 2

L

T

Snap-In Type 1

L

T

C324

H

Seating Plane

H

C325

C335

H

Seating Plane

F

S

E

LL

F

S

E

Seating Plane

F

S

LL

* May be supplied in a “Shoulder Bend” or “Straight” Lead

configuration. Please see Capacitance Range Waterfall section

of this document to determine lead configuration availability by

capacitance value.

Series

C31X

C32X

C31X

Style /

Size

315

316

324

320

326

317

318

321

322

323

325

328

327

330

331

333

335

336

S

Lead Spacing

±0.030 (0.78)

L

Length

Maximum

0.150 (3.81)

0.200 (5.08)

0.150 (3.81)

0.200 (5.08)

0.280 (7.11)

H

Height

Maximum

0.120 (3.14)

0.230 (5.08)

0.230 (5.84)

0.300 (7.62)

0.200 (5.08)

0.235 (5.97)

0.260 (6.60)

0.300 (7.62)

0.320 (8.13)

0.360 (9.14)

0.400 (10.16)

T

Thickness

Maximum

0.100 (2.54)

0.125 (3.18)

1

0.125 (3.18)

1

0.125 (3.18)

1

0.100 (2.54)

0.125 (3.18)

1

0.125 (3.18)

1

0.125 (3.18)

1

0.125 (3.18)

1

0.125 (3.18)

1

0.125 (3.18)

1

0.160 (4.07)

F

Lead Diameter

+0.004 (0.10),

−0.001 (0.025)

LL

Lead Length

Minimum

0.276 (7.00)

0.200 (5.08)

0.276 (7.00)

0.200 (5.08)

0.276 (7.00)

0.200 (5.08)

0.276 (7.00)

0.200 (5.08)

0.100 (2.54)

0.200 (5.08)

0.250 (6.35)

0.020 (0.51)

C32X

0.200 (5.08)

0.250 (6.35)

0.200 (5.08)

C33X

1

Thickness maximum (T) = 0.160" (4.07 mm) for capacitance values greater than or equal to 4.7 µF

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

C1052_GOLDMAX_C0G_AUTO • 10/25/2019

3

Radial Through-Hole Multilayer Ceramic Capacitors

Goldmax, 300 Series, Radial, Conformally Coated, C0G Dielectric, 25 – 250 VDC (Automotive Grade)

Automotive C-Spec Information

KEMET Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. The

details regarding test methods and conditions are referenced in the document AEC–Q200, Stress Test Qualification for

Passive Components. These products are supported by a Product Change Notification (PCN) and Production Part Approval

Process warrant (PPAP).

Automotive products offered through our distribution channel have been assigned an inclusive ordering code C-Spec, “9170.”

This C-Spec was developed in order to better serve small and medium-sized companies that prefer an automotive grade

component, without the requirement to submit a customer Source Controlled Drawing (SCD) or specification for review by a

KEMET engineering specialist. This C-Spec is therefore not intended for use by KEMET’s OEM Automotive customers and are

not granted the same “privileges” as other automotive C-Specs. Customer PCN approval and PPAP request levels are limited

(see details below).

Product Change Notification (PCN)

The KEMET Product Change Notification system is used to communicate primarily the following types of changes:

• Product/process changes that affect product form, fit, function, and/or reliability

• Changes in manufacturing site

• Product obsolescence

KEMET Automotive

C-Spec

KEMET assigned

1

9170

1

Customer Notification due to:

Process/Product change

Yes (with approval and sign off)

Yes (without approval)

Obsolescence*

Yes

Days prior to

implementation

180 days Minimum

90 days Minimum

KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.

Production Part Approval Process (PPAP)

The purpose of the Production Part Approval Process is:

• To ensure that supplier can meet the manufacturability and quality requirements for the purchased parts.

• To provide the evidence that all customer engineering design record and specification requirements are properly

understood and fulfilled by the manufacturing organization.

• To demonstrate that the established manufacturing process has the potential to produce the part

KEMET Automotive

C-Spec

KEMET assigned

1

9170

1

PPAP (Product Part Approval Process) Level

1

●

2

●

3

●

○

4

●

5

●

KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.

● Part Number specific PPAP available

○

Product family PPAP only

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

C1052_GOLDMAX_C0G_AUTO • 10/25/2019

4

Radial Through-Hole Multilayer Ceramic Capacitors

Goldmax, 300 Series, Radial, Conformally Coated, C0G Dielectric, 25 – 250 VDC (Automotive Grade)

Qualification/Certification

Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details

regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive

Components. For additional information regarding the Automotive Electronics Council and AEC–Q200, please visit their

website at www.aecouncil.com.

Environmental Compliance

Lead (Pb)-free, REACH and RoHS compliant without exemptions when ordered with a 100% tin (Sn) wire lead finish.

Series

300 (C3XX)

1

Termination

Finish

(Wire Lead)

100% Matte Sn

RoHS

Compliant

Yes

RoHS

Exemption

Code

n/a

REACH

Compliant

1

Yes

Halogen

Free

Yes

REACH compliance indicates product does not contain Substance/s of Very High Concern (SVHC)

Electrical Parameters/Characteristics

Item

Operating Temperature Range

Capacitance Change with Reference to

+25°C and 0 VDC Applied (TCC)

Aging Rate (Maximum % Cap Loss/Decade Hour)

Dielectric Withstanding Voltage

Dissipation Factor (DF) Maximum Limit at 25°C

Insulation Resistance (IR) Limit at 25°C

−55°C to +125°C

±30 ppm/°C

0%

250% of rated voltage

(5±1 second and charge/discharge not exceeding 50 mA)

0.1%

1,000 megohm microfarads or 100 GΩ

(Rated voltage applied for 120±5 seconds at 25°C)

Parameters/Characteristics

To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.

Capacitance and dissipation factor (DF) measured under the following conditions:

1 MHz ±100 kHz and 1.0 V

rms

±0.2 V if capacitance ≤ 1,000 pF

1 kHz ±50 Hz and 1.0 V

rms

±0.2 V if capacitance > 1,000 pF

Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known

as Automatic Level Control (ALC). The ALC feature should be switched to "ON."

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

C1052_GOLDMAX_C0G_AUTO • 10/25/2019

5

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7104214055
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0012 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	5.84 mm
JESD-609 code	e3
length	5.08 mm
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	2%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	Bulk
positive tolerance	2%
Rated (DC) voltage (URdc)	50 V
Guideline	AEC-Q200
surface mount	NO
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal pitch	2.54 mm
Terminal shape	WIRE
width	3.18 mm

C320C122G5G5TA9170

C320C122G5G5TA9170 Overview

C320C122G5G5TA9170 Parametric

Preview

Recommended Resources
