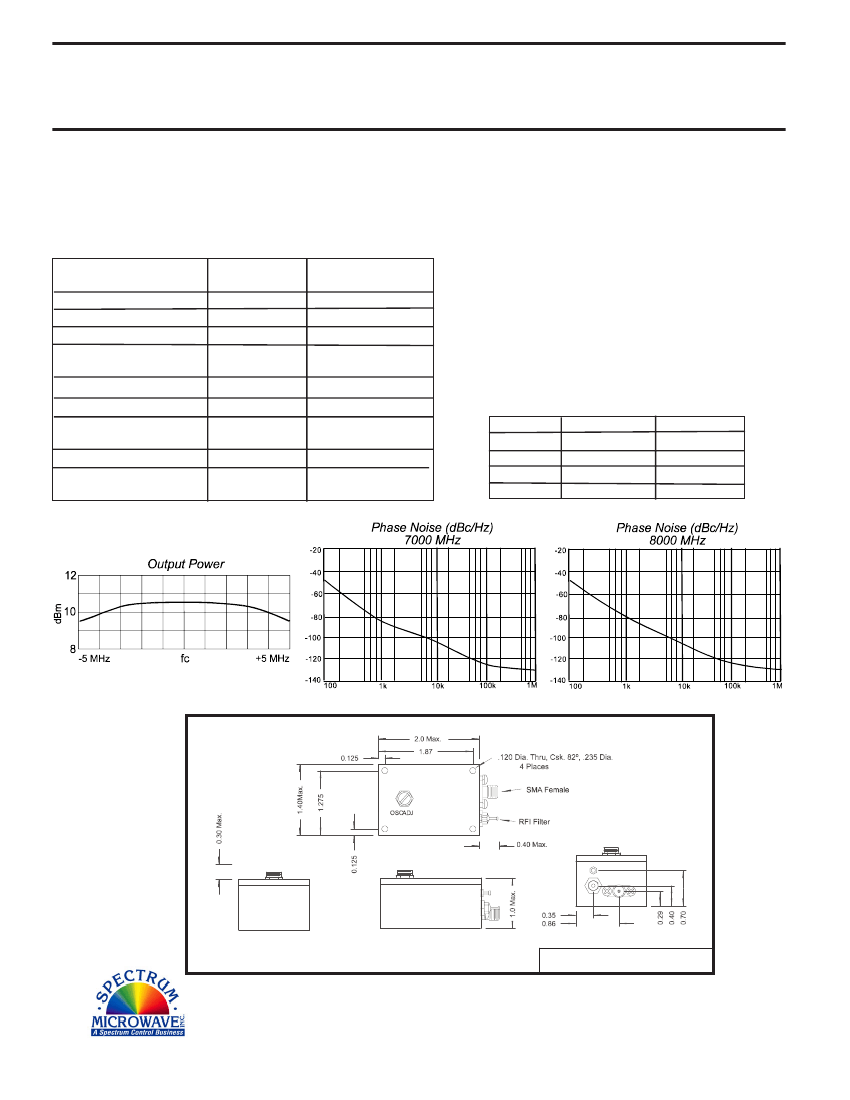

DIELECTRIC RESONATOR
OSCILLATOR
Features
Low Noise
Rugged Construction for Extreme Environmental Conditions
High Frequency Stability
Mechanically Tuned
Specifications
CHARACTERISTIC
Frequency
Output Power (dBm)
Power Flatness (dBm)
Frequency Stability
(ppm)/ ºC
Harmonics (dBc)
Spurious (dBc)
Phase Noise (7000 MHz)
@ 100 KHz (dBc/Hz)
Load VSWR
Power
Vdc
mA
Model 514060
7000 - 8000 MHz
Absolute Maximum (No Damage) Ratings
TYPICAL
MIN/MAX
Ta = +25 ºC Ta = -55ºC to +85 ºC
7000 - 8000 MHz
+13.0
+/- 1.5
4
-20
-80
-125
1.5:1
+15
70
7000 - 8000 MHz
+10.0 Min.
+/- 3.0
3 to 5
-15 Max.
-80 Max.
-123 Max.
2.0:1 Max.
+15 to +20
90 Max.
Ambient Operating Temperature ............. -55ºC to +100 ºC
Storage Temperature .............................. -62ºC to +125 ºC
Case Temperature ............................................... +125 ºC
DC Voltage ....................................................... +24 Volts
Maximum DC Tuning Voltage ............................ +20 Volts
Minimum DC Tuning Voltage .................................. 0 Volts
NOTE: Care should always be taken to effectively ground the case of
each unit.
Typical Performance Data
Phase Noise
Offset
1 kHz
10 kHz
100 kHz
Typical
7000 MHz
-82
-105
-125
Typical
8000 MHz
-80
-104
-124
Mechanical Outline
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
Rev.
5/5/10
www.SpectrumMicrowave.com
Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
