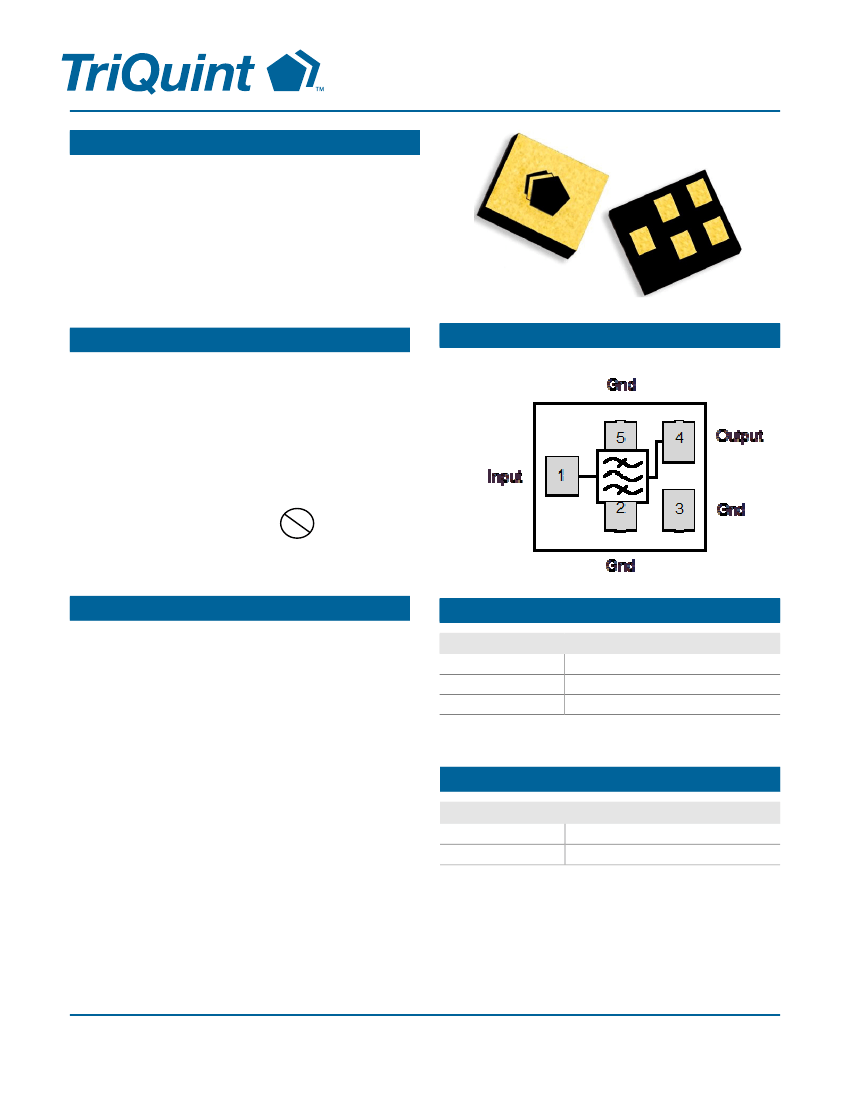

2437 MHz SAW Filter
Applications
•
•
For ISM/WLAN applications
For high-power WLAN access points
CSP-5BT package: 1.40 x 1.20 x 0.46 mm
Product Features
•
•
•
•
•
•
•
•
Usable bandwidth 66 MHz
Low loss through ISM/WiFi band
Steep roll off to provide rejection in the FCC
restricted bands
Single-ended operation
Small Size: 1.40 x 1.20 x 0.46 mm
Ceramic chip-scale Package (CSP)
Hermetically sealed
RoHS compliant, Pb-free
Pb
Functional Block Diagram
Top View
General Description
857005 is specifically designed for steep rolloff to
provide rejection in the FCC restricted bands
above and below the WiFi passband.
This
provides designers of access points the capability
to increase output power and improve range.
857005 uses advanced and inexpensive
packaging techniques to achieve an extremely
small 1.40 x 1.20 x 0.46 mm hermetically sealed
package.
Pin Configuration
Pin No.
1
4
2,3,5
Label
Input
Output
Ground
Ordering Information
Part No.
857005
857005-EVB
Description
Packaged part
Evaluation board
Standard T/R size = 15,000 units/reel
Minimum Order Quantity = 2500 units/ reel.
Data Sheet: Rev C 08-28-14
© 2014 TriQuint
-
1 of 6
-
Disclaimer: Subject to change without notice
857005
2437 MHz SAW Filter
Absolute Maximum Ratings
Parameter
Storage Temperature
Operable Temperature
(2)
Input Power
(1)
Rating
- 40 to + 85°
1. Operation of this device outside the parameter ranges given
C
- 10 to + 75°
C
+3 dBm
may cause permanent damage.
2. Device is measured for equivalent 10K hours @ +55 ºC [CW
Signal]
Electrical Specifications
Parameter
(3)
Center Frequency
Maximum Insertion Loss
Amplitude Variation
(any 16
MHz Channel)
Conditions
(4)
2412 – 2462 MHz
2404 – 2470 MHz
2404 – 2470 MHz
2404 – 2470 MHz
300 – 2100 MHz
2380 – 2390 MHz (25 to 55ºC)
2483.5 – 2500 MHz (25 to 55ºC)
2550 – 3000 MHz
3000 – 6000 MHz
(5)
lower 4 dB band edge
(5)
upper 4 dB band edge
2404 – 2470 MHz
2404 – 2470 MHz
Min
-
-
-
-
-
20
4
4
25
15
-
-
8
8
-
-
Typical
(6)
2437
2.1
1.8
10
6.0
32
8.0
8.0
34
32
-32
-56
12
12
50
50
Max
-
4
3.2
25
15
-
-
-
-
-
-
-
-
-
-
Units
MHz
dB
dB p-p
ns p-p
ns p-p
dB
dB
dB
dB
dB
ppm/ ºC
ppm/ ºC
dB
dB
Ω
Ω
Group Delay Variation
Group Delay Variation
(any 16
MHz Channel)
Absolute Attenuation
(7)
Temperature coefficient of
frequency
Input Return Loss
Output Return Loss
Source Impedance (Single-
(8)
ended)
Load Impedance (Single-
(8)
ended)
Notes:
3. All specifications are based on the TriQuint schematic for the main reference design shown on page 3
4. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical
compliance over temperature
5. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances
6. Typical values are based on average measurements at room temperature
7. Relative to zero dB.
8. This is the optimum impedance in order to achieve the performance shown
Data Sheet: Rev C 08-28-14
© 2014 TriQuint
-
2 of 6
-
Disclaimer: Subject to change without notice
857005
2437 MHz SAW Filter

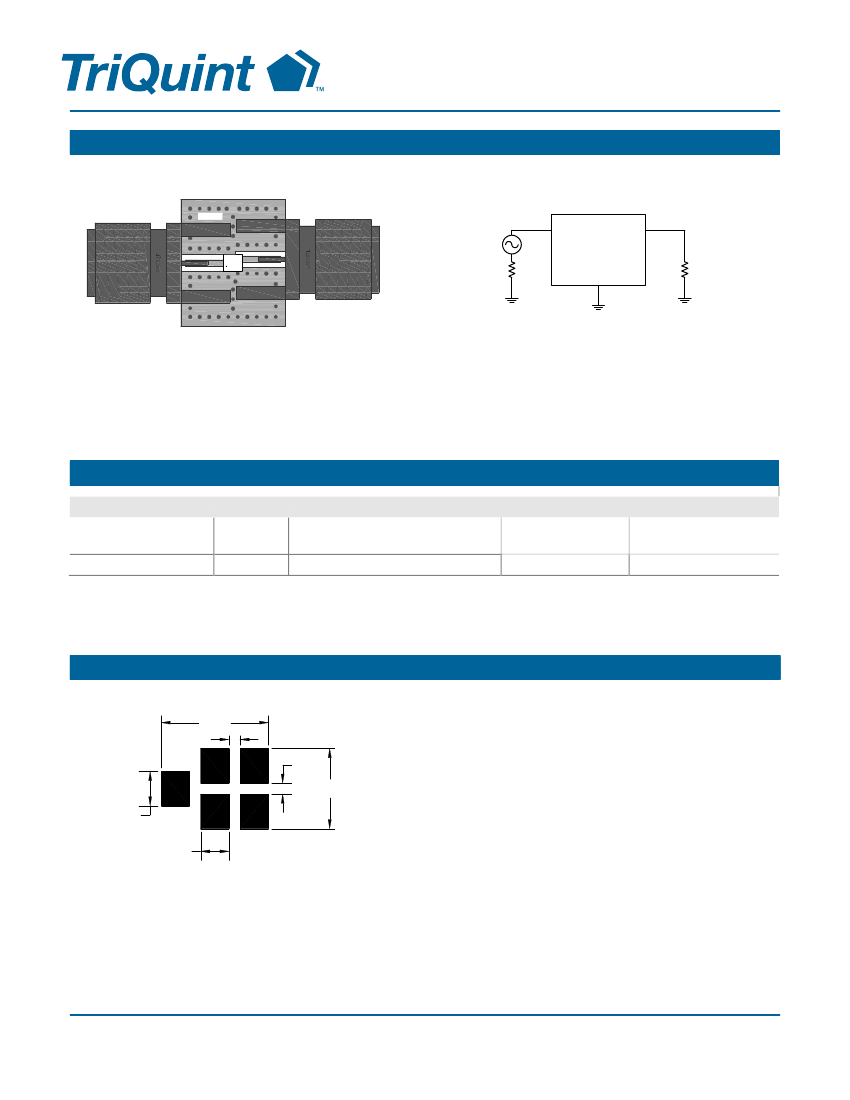

Evaluation Board
960568
1
FG M
WWY
4
50Ω
Single-ended
50Ω
Single-ended
Input
50
Ω
2,3,5
50
Ω
Output
Notes:
1. Top, Middle and Bottom Layers: 1 oz Copper
2. Substrates: FR4 dielectric, 0.31” thick
3. Finish plating: Nickel 3-8 µm thick, Gold: .03 - .02 µm thick
4. Hole platting: Copper Min: .0008 µm thick
Bill of Material
Reference Des.
SMA
PCB
Value
N/A
N/A
Description
SMA connector
3-layer
Manuf.
Radiall USA Inc.
multiple
Part Number
9602-1111-018
960568
PCB Mounting Pattern
1.35
0.15
0.15
1.00
0.425
Notes:
1. All dimensions are in millimeters. Angles are in degrees.
2. This drawing specifies the mounting pattern used on the TriQuint
evaluation board for this product. Some modification may be necessary
to suit end user assembly materials and processes.
0.35
Data Sheet: Rev C 08-28-14
© 2014 TriQuint
-
3 of 6
-
Disclaimer: Subject to change without notice
857005
2437 MHz SAW Filter

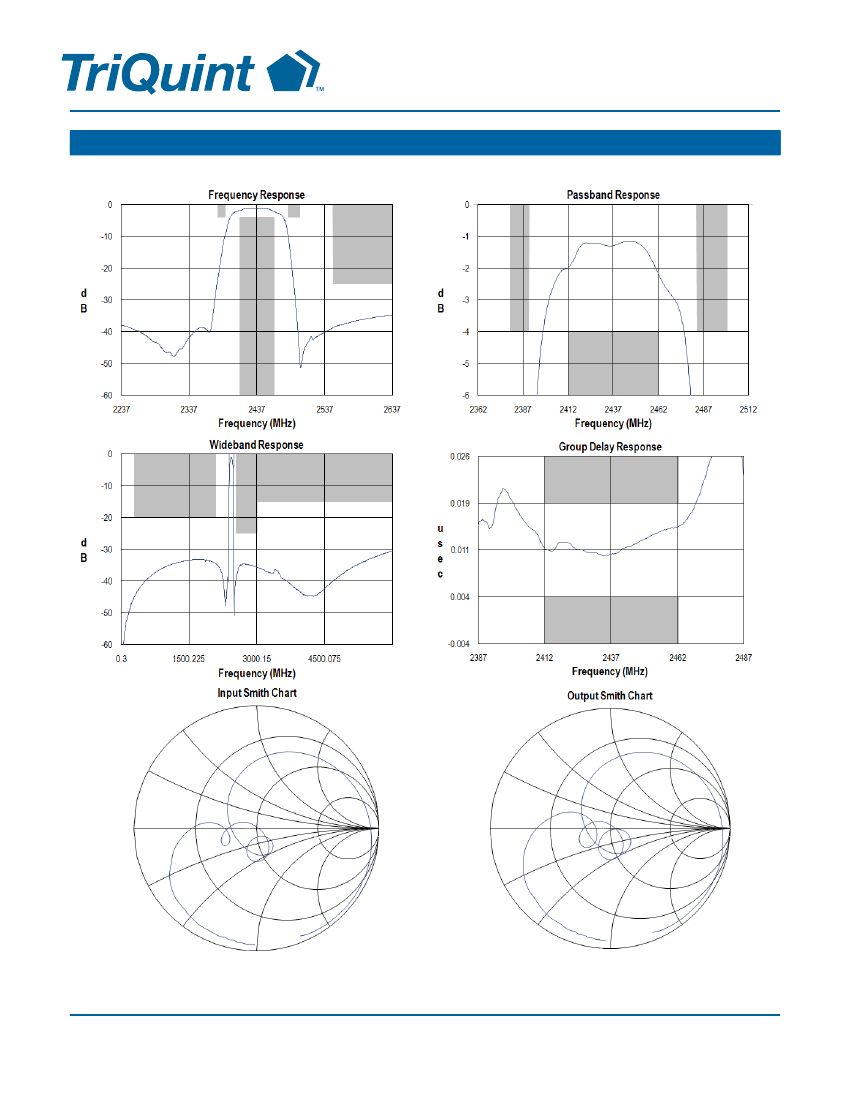

Performance Plots (At +25 °
C)
Data Sheet: Rev C 08-28-14
© 2014 TriQuint
-
4 of 6
-
Disclaimer: Subject to change without notice
857005
2437 MHz SAW Filter

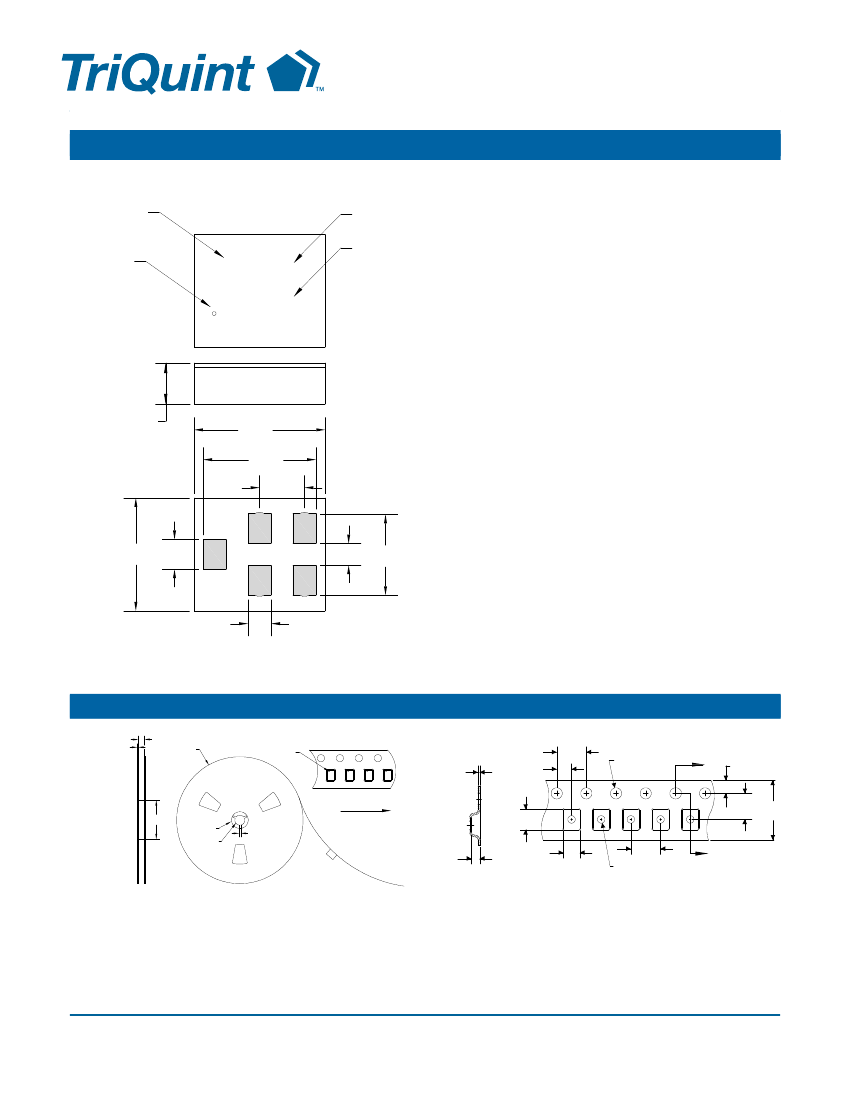

Package Information, Marking and Dimensions
Package Style: CSP-5BT
Dimensions: 1.40 x 1.20 x 0.46 mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar
or
Alloy 42, Au
over
Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm, over a 2-6μm
Ni
plating
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and
width ±0.10mm
0.46 NOM.
0.50 MAX.
Marking
code
ID dot
MFG site
Date code
FG M
WWY
1.40
1.25
0.50
The date code consists of: M = manufacturing site
code WW = 2 digit week and Y = last digit of year
1.20 0.325
0.25
0.90
0.25
Tape and Reel information
2.7
8.8
Ø330
ID dot
Section A-A
0.3
2.0
4.0
Ø1.5
A
1.75
Ø102 Ø20.2
Ø13.0
Direction of travel
2.0
1.73
0.65
1.47
4.0
Ø1.0
A
3.5 8.0
Standard T/R size=15,000 units/reel. All dimensions are in millimeters.
Minimum Order Quantity = 2500 units/ reel.
Data Sheet: Rev C 08-28-14
© 2014 TriQuint
-
5 of 6
-
Disclaimer: Subject to change without notice
