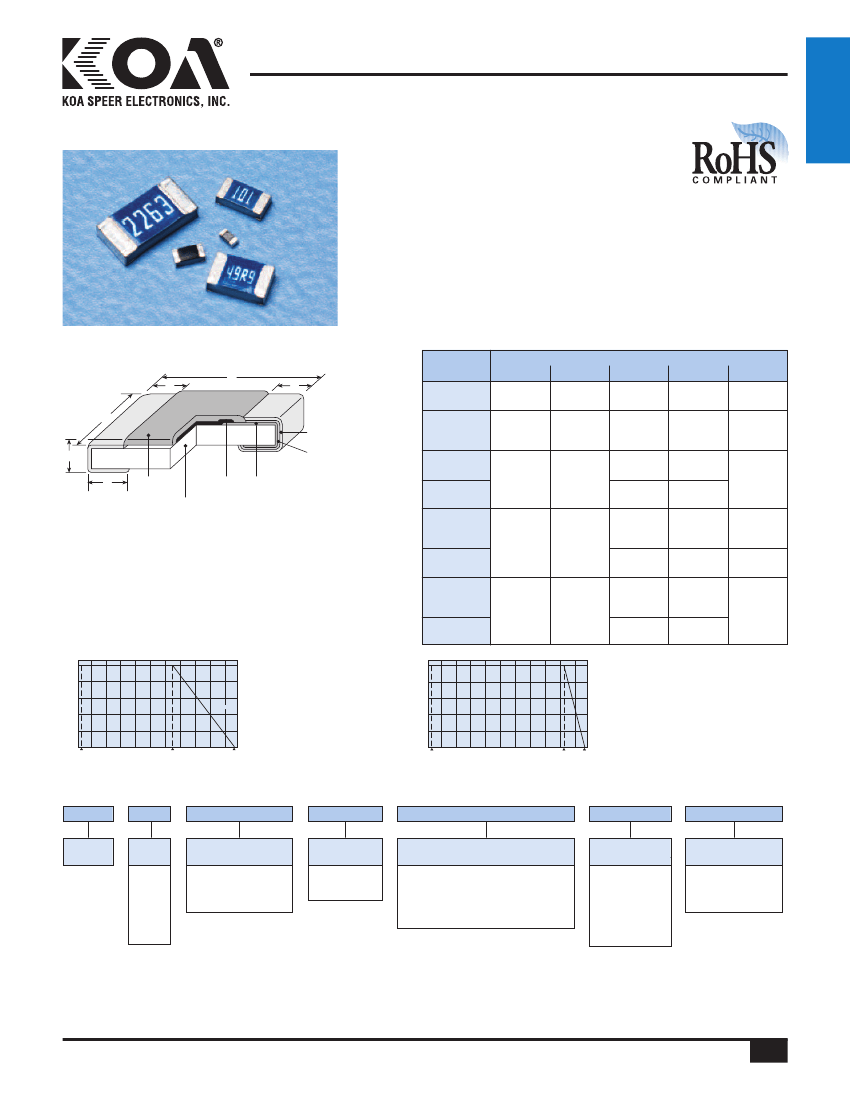

thick film 0.25%, 0.5%, 1% tolerance, 50ppm/°C
chip resistor
EU
features
•
High precision resistor with T.C.R. of
±50 ppm/°C and tolerance of ±0.25%,
±0.5% or ±1%
•
Products with lead-free terminations meet EU RoHS
requirements. EU RoHS regulation is not intended for
Pb-glass contained in electrode, resistor element and glass.
•
AEC-Q200
Tested
dimensions and construction
c
L
c
Type
(Inch Size Code)
L
Dimensions
inches
(mm)
W
c
d
t
1H
(0201)
Sn
Plating
.024±.001 .012±.001 .004±.002 .006±.002 .009±.001
(0.6±0.03) (0.3±0.03) (0.1±0.05) (0.15±0.05) (0.23±0.03)
.039
(1.0
+.004
-.002
+0.1
)
-0.05
+.002
.02±.002 .008±.004 .01
-.004
.014±.002
(0.5±0.05) (0.2±0.1) (0.25
+0.05
) (0.35±0.05)
-0.1
W
1E
(0402)
1J
(0603)
1J AT
(0603)
2A
(0805)
2A AT
(0805)
2B
(1206)
2B AT
(1206)
100
80
t
d
Protective
Coating
Resistive Inner
Film
Electrode
Ni
Plating
Ceramic
Substrate
.012±.004 .012±.004
(0.3±0.1)
.018±.004
.063±.008 .031±.004
(0.3±0.1)
(1.6±0.2)
(0.8±0.1)
.014±.006 .02±.008
(0.45±0.1)
(0.35±0.15) (0.5±0.2)
+.008
.016±.008 .012
-.004
.02±.004
(0.5±0.1)
(0.3
+0.2
)
.079±.008 .049±.004
(0.4±0.2)
-0.1
(2.0±0.2) (1.25±0.1)
.018±.010 .024±.008 .022±.004
(0.45±0.25) (0.6±0.2) (0.55±0.1)
.126±.008 .063±.008
(3.2±0.2)
(1.6±0.2)
.02±.012
(0.5±0.3)
.016
(0.4
+.008
-.004
+0.2
)
-0.1
Derating Curve
100
80
% Rated Power
60
40
20
0
-60 -40
-55
1H, 1E, 1J
, 2A, 2B
.022±.014 .031±.008
(0.55±0.35) (0.8±0.2)
.024±.004
(0.6±0.1)
-20
0
80
70
Ambient Temperature
(°C)
20
40
60
100 120
140
155
For resistors operated at an
ambient temperature of 70°C or
above, a power rating shall be
derated in accordance with the
above derating curve.
60
40
20
0
-60 -40
-55
For resistors operated at a terminal part
temperature of described for each size or
above, a power rating shall be derated in
accordance with the above derating curve.
Please refer to “Introduction of the derating
curve based on the terminal part temperature”
in the beginning of our catalog before use.
-20
0
20
40
60
80
100 120
140
125
155
Terminal Part Temperature
(°C)
ordering information
RK73G
Type
1J
Size
1H
1E
1J
2A
2B
Characteristic
Nil: Standard
New
A: Heat
shock resistance *
1
T
Termination
Material
T: Sn
(L:Sn/Pb*
2
)
TD
Packaging
TCM: 2mm pitch press paper
TPL - TP: 2mm pitch punch paper
TD: 4mm pitch punch paper
TE: 4mm pitch plastic embossed
1003
Nominal
Resistance
3 significant
figures +
1 multiplier
“R” indicates
decimal on
value <100Ω
F
Tolerance
C: ±0.25%
D: ±0.5%
F: ±1%
*1 With type A, only T is available as the terminal surface material.
The terminal surface material lead free is standard.
*2
With type 1H, only T is available as the terminal surface material.
For further information on packaging, please refer to Appendix A
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
% Rated Power
1/24/22
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
21
resistors
RK73G
RK73G
thick film 0.25%, 0.5%, 1% tolerance, 50ppm/°C
chip resistor
applications and ratings
Part
Designation*
RK73G1H
(0201)
RK73G1E
(0402)
RK73G1J
(0603)
RK73G2A
(0805)
RK73G2B
(1206)
Power
Rating
1/20W (.05W)
1/10W (.10W)
1/10W (.10W)
1/8W (.125W)
1/4W (.25W)
70°C
125°C
±50
100Ω - 1MΩ
10Ω - 1MΩ
10Ω - 1MΩ
150V
200V
200V
400V
Rated
Ambient
Temp.
T.C.R.
Rated
Terminal (ppm/°C)
Max.
Part Temp.
New
E-24, E-96
(C±0.25%)
––
Resistance Range
E-24, E-96
(D±0.5%)
E-24, E-96
(F±1%)
Absolute Absolute
Maximum Maximum
Working Overload
Voltage
Voltage
25V
50V
75V
50V
100V
150V
60
1E
70
2B
Temperature Rise (°C)
50
60
Temperature Rise (°C)
1E
1J
2B
2A
2A
50
One-Pulse Limiting Electric Power (W)
resistors
100Ω - 1MΩ** 100Ω - 1MΩ**
Operating Temperature Range: -55°C ~ +155°C
* Parentheses indicate EIA package size codes.
** RK73G1H available in E-24 decade values only
environmental applications
Temperature Rise
RK73G 1E-1J
RK73G 2A-2B
100
One-Pulse Limiting Electric Power
RK73G 1H-2B
40
1J
10
40
30
2B
2A
1J
1E
0.1
0.001
1H
0.01
0.1
1
10
100
1000
30
20
1
20
10
10
0
0
25
50
75
100
0
0
25
50
75
100
Power Rating
(%)
Power Rating
(%)
Measurement condition
Room temperature: 25°C
PCB: FR-4t = 1.6mm
Cu foil thickness: 35µm
①:
Hot spot
②:
Terminal
Pulse Duration
(ms)
Regarding the temperature rise, the value of the temperature
varies per conditions and board for use since the temperature
is measured under our measuring conditions.
The maximum applicable voltage is equal to the max. overload voltage. Please
ask us about the resistance characteristic of continuous applied pulse. The pulse
endurance values are not assured values,so be sure to check the products on
actual equipment when you use them.
Performance Characteristics
Parameter
Resistance
T.C.R.
Overload (Short time)
Resistance to Solder Heat
Rapid Change of Temperature
Moisture Resistance
Endurance at 70°C
High Temperature Exposure
Requirement
∆
R ±(%+0.1Ω)
Limit
Typical
Within specified
—
tolerance
Within specified
—
T.C.R.
±2%
±1%
±0.5%
±2%: 1J, 2A, 2B
±3%: 1H, 1E
±2%: 1J, 2A, 2B
±3%: 1H, 1E
±1%
±0.6%
Test Method
25°C
1H: +25°C/+125°C, 1E, 1J, 2A, 2B: +25°C/-55°C and +25°C/+125°C
Rated Voltage x 2.5 for 5 seconds
(1E, 2B: Rated Voltage x 2 for 5 seconds)
±1%: 1H, ±0.4%:
260°C ± 5°C, 10 seconds ± 1 second
1E, 1J, 2A, 2B
±0.3%
±0.6%: 1J, 2A,
2B; ±1%: 1H, 1E
±0.6%: 1J, 2A,
2B; ±1%: 1H, 1E
±0.6%
-55°C (30 minutes), +125°C (30 minutes), 100 cycles
40°C ± 2°C, 90%-95% RH, 1000 hours, 1.5 hr ON, 0.5 hr OFF cycle
70°C ± 2°C, 1000 hours, 1.5 hr ON, 0.5 hr OFF cycle
+155°C, 1000 hours
For Surface Temperature Rise Graph see Environmental Applications. Additional environmental applications can also be found at www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
10/19/20
22
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
