HALF-SIZE DIP LOW VOLTAGE 5.0V
CRYSTAL CLOCK OSCILLATOR
ACH Series
FEATURES:
• Wide frequency range.
• HCMOS and TTL compatible.
• Tight symmetry option.
• Tri-state Enable / Disable function.
APPLICATIONS:
• Microprocessors.
• Digital circuit.
Pb
RoHS
Compliant
12.7 x 12.7 x 5.6mm
| | | | | | | | | | | | | | |
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N
Frequency:
Operating temperature:
Storage temperature:
Frequency Stability:
Supply voltage (Vdd):
Symmetry:
Rise and Fall Times(Tr/Tf):
Output load:
Output Voltage:
Tri-state Function:
Start-up-time:
Output Disable/ Enable time:
Input current:
ACH Series
32.768kHz to 200MHz
0°C to +70°C
- 55°C to + 125°C
± 100ppm max. (see options)
5.0Vdc ± 10%
45/55% max.for F<50MHz
40/60% max. for F>=50MHz (see options)
40ns max. for 32.768kHz
≤
F < 2MHz
10ns max. for 2MHz
≤
F
≤
24MHz
5ns max. for F>24MHz
10 TTL or 15 pF for F<80MHz
5 TTL or 15 pF for F>=80MHz
VOH = 0.9 * VDD min.
VOL = 0.1*VDD max.
"1" (VIH >= 2.2 Vdc) or open: Oscillation
"0" (VIL < 0.8V): Hi Z
10 ms max
100 ns max. (for Option "-A" ONLY)
30 mA max. for F < 24 MHz
45 mA max. for F < 50 MHz
70 mA max. for F < 80 MHz
85 mA max. for F >= 24 MHz
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ACH - Frequency -
-
-
-
-
-
-
Temperature Options
D
-10°C to +60°C
E
-20°C to +70°C
F
-30°C to +70°C
N
-30°C to +85°C
L
-40°C to +85°C
Freq. Stability
Y
±10 ppmmax.
J
±20 ppm max.
R
±25 ppm max.
K
±30 ppm max.
H
±35 ppm max.
C
±50 ppm max.
S
T
S1
T1
Symmetry Options
45/55%@1/2Vdd
47.5/52.5%@1/2Vdc
45/55@1.4Vdc
45.5/52.5@1.4Vdc
Packaging
Blank
Tube
TY
Tray
Tristate Enable Funct
A
Tristate Function
50pF Option
50
50pF
Value Added Option
G
Gull Wing
G2
Gull Wing
GHT
Gull Wing Reflow
Q30
0.30(7.62)
Q25
0.25(6.35)
Q20
0.20(5.08)
Q15
0.15(3.81)
Q10
0.10(2.54)
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 08.30.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
HALF-SIZE DIP LOW VOLTAGE 5.0V
CRYSTAL CLOCK OSCILLATOR
ACH Series

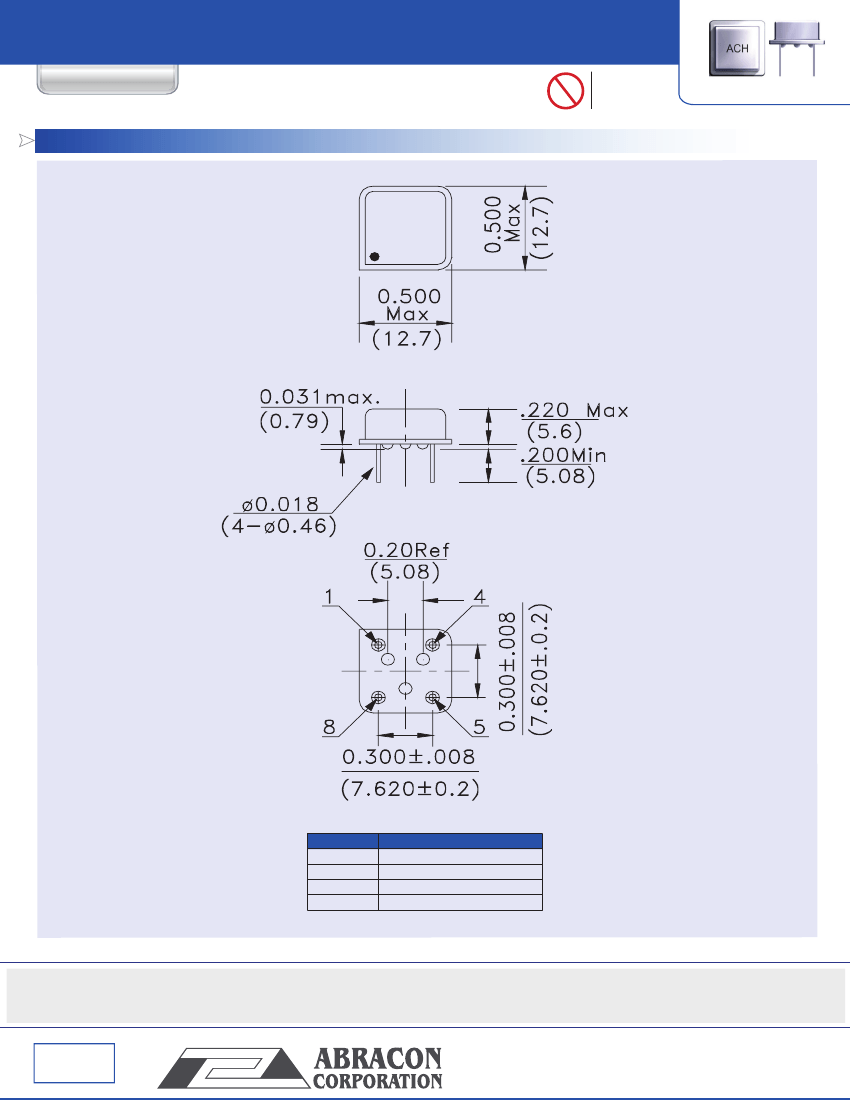

OUTLINE DIMENSIONS:
Pb
RoHS
Compliant
12.7 x 12.7 x 5.6mm
| | | | | | | | | | | | | | |
PIN
1
4
5
8
FUNCTION
NC or Tri-state Enable/
GND/Case
Output
VDD
Dimensions: inches (mm)
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not
specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For
applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for
more information.
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 08.30.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
