K127X-PR2-68-G

Description
Board Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT
CategoryThe connector    The connector
File Size1MB,1 Pages
ManufacturerKycon
Environmental Compliance
Download Datasheet Parametric View All

K127X-PR2-68-G Overview

Board Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

K127X-PR2-68-G Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1598159558
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberK127X-PR2
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts68
UL Flammability Code94V-0

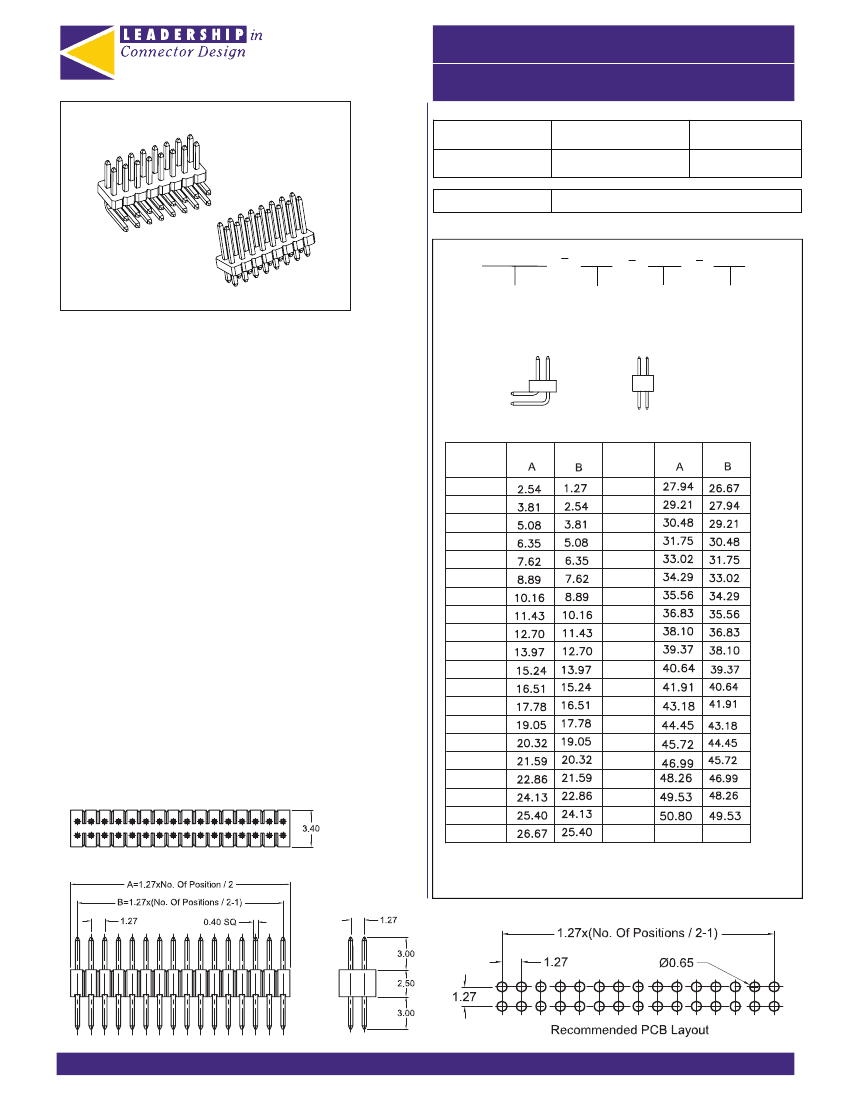

1.27X1.27mm Double Row Pin Header
KYCON
RoHS
K127X-PV2/K127X-PR2 Series
Documentation &
Ordering Information
Drawing
Sample
Stock
Email
CofC
RFQ
Kycon Part #
K127X-PV2-78-G
Part Number Builder
K127X
PV2
Style
78
Contacts
G
Plating
Series
K127X Series
1.27MM Double Row Pin Header
Features
• Right Angle and Vertical body style offered
• 0.05” spacing for real estate savings
• Open pin field
• Circuit size of 4-80 positions offered
Series
K127X - 1.27mm Pin Header ,Double Row
K127X
PR2
PR2
PV2
PV2
Number of Contacts
04
06
44
46
Performance Specifications
Material and Finish
Insulator
:High Temp plastic (UL94V-0)
Contact
: Copper Alloy
Plating
: Gold Plated
08
10
48
50
12
14
52
54
56
16
18
58
60
Electrical Characteristics
Current Rating :
1.0A AC/DC
Voltage Rating :
50V AC/DC
Resistance :
20m ohm.max.
Insulation Resistance :
1000M ohm.Min.
Withstanding Voltage :
500V AC for one minute
Operating Temperature Range :
-25ºC to +105ºC
20
22
62
64
66
24
26
28
68
70
30
32
72
74
76
78
80
34
36
38
40
42
Plating
G -
Gold
Contact Kycon for more options
