B3F-5150

Description
KEYPAD SWITCH, SPST, MOMENTARY-TACTILE, 0.05A, 24VDC, 1.76 N, THROUGH HOLE-STRAIGHT
Categoryunclassified
File Size1MB,9 Pages
ManufacturerETC2
Download Datasheet Parametric View All

B3F-5150 Online Shopping

Suppliers Part Number Price MOQ In stock
B3F-5150 - - View Buy Now

B3F-5150 Overview

KEYPAD SWITCH, SPST, MOMENTARY-TACTILE, 0.05A, 24VDC, 1.76 N, THROUGH HOLE-STRAIGHT

B3F-5150 Parametric

Parameter NameAttribute value
Maximum DC contact current0.0500 A
Maximum DC contact voltage24 V
Maximum operating temperature70 Cel
Minimum operating temperature-25 Cel
Processing package descriptionROHS COMPLIANT
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
Electrical life1.00E7 Cycle(s)
switch functionSPST
terminal coatingGOLD
Manufacturer SeriesB3F
Control valvePROJECTED PLUNGER TYPE
width12 mm
high3.5 mm
length or diameter12 mm
Circuit configuration1X1
Maximum contact jitter time5 ms
Installation featuresTHROUGH HOLE-STRAIGHT
Number of switches1
maximum control1.76 N
Switch actionMOMENTARY-TACTILE
Switch typeKEYPAD SWITCH
Terminal typeSOLDER

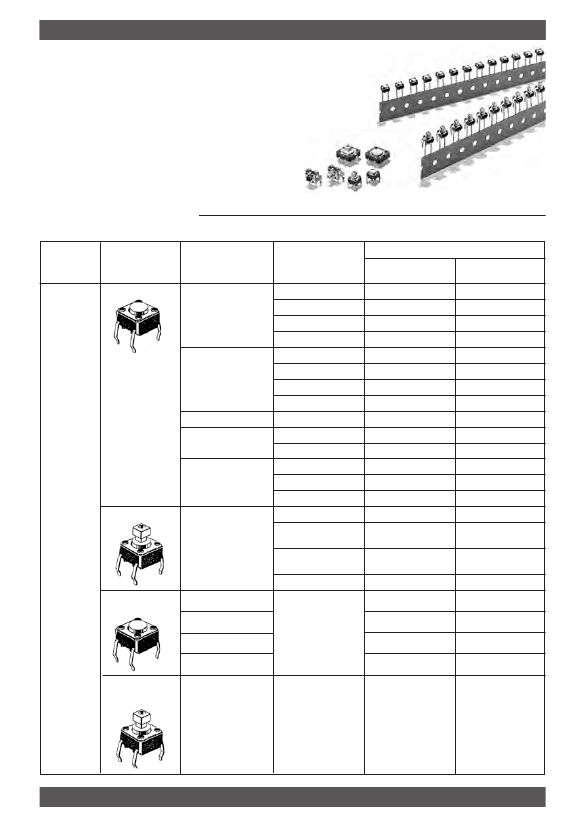

Tactile
Text Switch – B3F
A Wide Range of Models: 6 x 6 mm,
12 x 12 mm, Vertical and High-force.
ROHS compliant.
A positive click action plus a long life equal to
that of a no-contact switch.
Radial models (taping specifications) that allow the
use of general-purpose radial taping parts insertion
machines have been added to the series.
High reliability gold plated type available

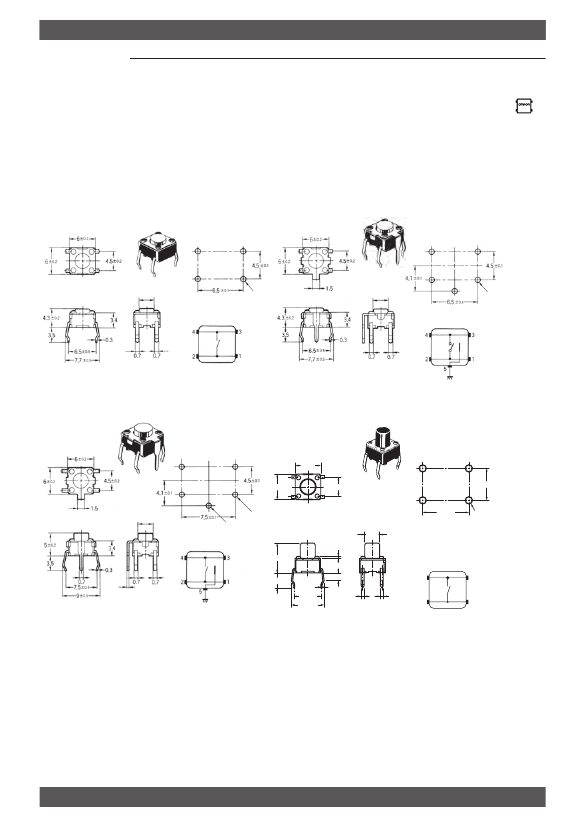

Ordering Information
6 x 6 mm Models
Type
Plunger
Height
Operating force (of)
Bags (100 Switches)
Without ground
terminal
Horizontal
(B3F-1000)
Flat
4.3 mm
0.98 N {100 gf}
1.47 N {150 gf}
2.55 N {260 gf}
4.9 N {50 gf}
5.0 mm
0.98 N {100 gf}
1.47 N {150 gf}
2.55 N {260 gf}
4.9 N {50 gf}
5.0 mm (7.5-mm pitch) 0.98 N {100 gf}
7.0 mm
0.98 N {100 gf}
1.47 N {150 gf}
9.5 mm
0.98 N {100 gf}
1.47 N {150 gf}
2.55 N {260 gf}
Projected
7.3 mm
0.98 N {100 gf}
1.47 N {150 gf}
2.55 N {260 gf}
4.9 N {50 gf}
Flat, high reliability
gold plated
4.3 mm
5.0mm
7.0mm
9.5mm
Projected, high
7.3mm
reliability gold plated
1.76N (180gf)
1.76 N {180 gf}
B3F-1000
B3F-1002
B3F-1005
B3F-1006
B3F-1020
B3F-1022
B3F-1025
B3F-1026
B3F-1060
B3F-1062
B3F-1070
B3F-1072-N
B3F-1075
B3F-1050
B3F-1052
B3F-1055
B3F-1056
B3F-1002-G
B3F-1022-G
B3F-1062-G
B3F-1072-G
B3F-1052-G
With ground
terminal
B3F-1100
B3F-1102
B3F-1105
B3F-1120
B3F-1122
B3F-1125
B3F-1110
B3F-1150
B3F-1152
B3F-1155
B3F-1102-G
B3F-1122-G
