BH-1105
ISA Half size CPU Card
AMD G-series VGA/Audio/
LAN/2COM/PC104/FDD
Features :
Supports AMD G-series Processor
Memory supports DDR3 SO-DIMM
800MHz up to 4GB
Supports Single Gigabit Ethernet
Supports USB 2.0
Support two SATA ports
Protech Systems Co., Ltd.
No. 24, Lane 365, Yang Goang Street, Nei Hu
District Taipei 114, Taiwan
TEL: +886-2-8751-1111 FAX: +886-2-8751-1199
E-mail: sales@protech.com.tw
http://www.protech.com.tw
Protech Technologies Inc.
950 Fee Ana St, Suite B Placentia, CA 92870
TEL: +1-714- 996-7200 FAX: +1-714- 996-7300
Sales: sales@protech-usa.net
http://www.protech-usa.net
Protech Japan Co., Ltd.
OSK Bldg, 6F, 6-25-14, Minami-ohi Shinagawa-ku,
Tokyo, 140-0013
TEL: +81-3-5753-8411 FAX: +81-3-3763-9282
E-mail: sam@protech-j.com
http://www.protech-j.com

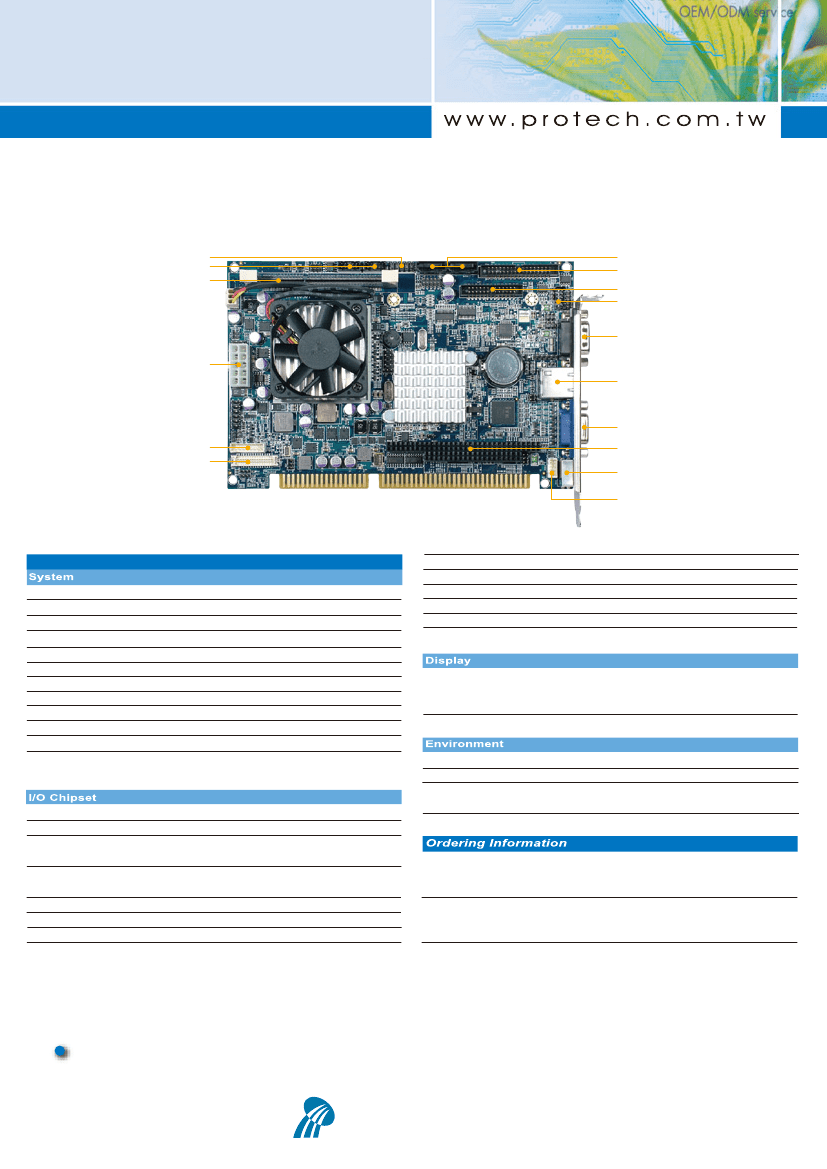

BH-1105
DIO Connector
USB 2.0 Connector
DDR3 SO-DIMM
ISA Half size CPU Card AMD G-series VGA/Audio/LAN/
2COM/PC104/FDD
SATA Connector
FDD Connector
LPT Connector
COM 2
COM 1
Power Connector
RJ-45 10/100/1000
LAN Connector
VGA Connector
Inverter Connector
LVDS Connector
PC/104
PS/2 Keyboard/
Mouse Connector
Extent Keyboard/
Mouse Connector
Specifications
CPU Support
CPU Frequency
Chipset
DRAM
BIOS
Watchdog
Power Supply
Power Requirement
Power Consumption
Dimension
Certificate
AMD G-series processor
615MHz(T16R) / 1.5GHz (T52R)
AMD A55E
1 x 204-Pin DDR3 SO-DIMM 800MHz up to 4GB
AMI
1~255 secs Watchdog timer selectable
Support AT/ATX Power
+5V, +12V
TBD
185 mm × 122 mm (7.28" × 4.8")
FCC / CE
Mouse
LAN
Audio
DI/O
USB
PS/2 connector, with mini DIN connector
Single Ports；Realtek Giga LAN RTL8111F
HD Audio, Realtek ALC888S
4 in / 4out
2 x USB 2.0
Build-in AMD G-series processor, share system
Graphics
memory;
Supports VGA, LVDS (18bit, 24bit)
Operation Temp.
Storage Temp.
Humidity
SATA Interface
Expansion BUS
FDD Interface
Serial Port
Parallel Port
IrDA
Keyboard
2 x SATAII connector
1 x CFast, 1 x PC104
1 x FDD connector with 34-pin box-header
on board
2 x COM port; COM 1 for RS-232, COM 2 for
RS-232/422/485
1 port, Bi-dircetion, SPP / EPP / ECP
One IrDA Port
PS/2 connector, with mini DIN connector
BH-1105RA-01P
BH-1105RA-00P
0° ~ 60° C ( 32° ~ 140° F )
- 40° ~ 85° C ( - 40° ~ 185° F )
Operation humidity 20 ~ 90%,
storage humidity 20 ~ 95%
ISA Half size CPU Card AMD 1.5GHz w VGA/
Sound/G-LAN/
2COM/PC104/ FDD
ISA Half size CPU Card AMD 615MHz w VGA/
Sound/G-LAN/
2COM/PC104/ FDD
All of trademarks and brand names are the property of their owners. Trademark "Protech" is the property of Protech Systems Co., Ltd.
All information contained in this document is subject to change without any prior notice. This catalog is copyrighted in May 2013.
