63
www.vishay.com
FEATURES
• Arrow and graduations for repeatable settings
• “O” ring seal for solvent and aqueous washing
• Rigid board mounting achieved with pins
secured in housing
• Multi-finger wiper for better contact resistance
• Solid end stop
• Tests according to CECC 41000 or IEC 60393-1
• Compliant to RoHS Directive 2002/95/EC

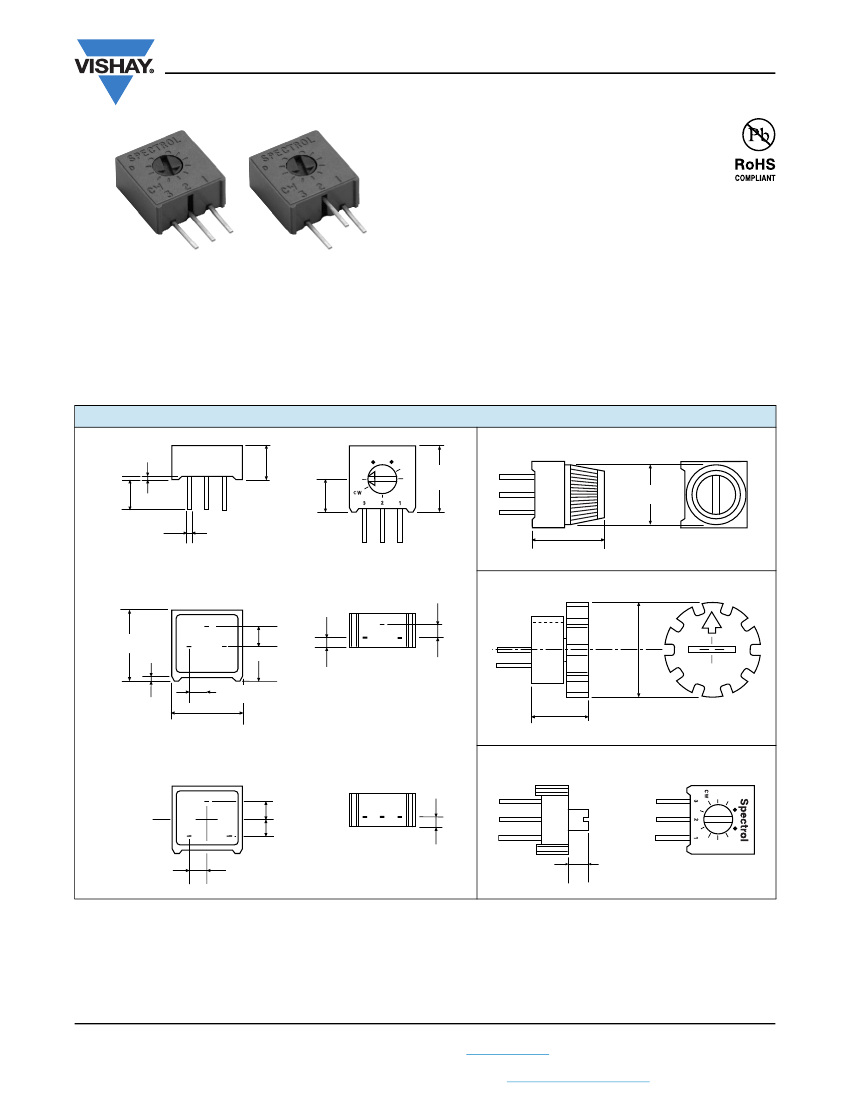

The Model 63 cermet trimmer is available in several pin
configurations for top or side adjustment and with a choice
of Knob styles for finger setting. Quick adjustment is
achieved with multi-finger wiper and the standard resistance
range is between 100
and 2 M with a tolerance of
± 10 %.
Vishay Spectrol
DIMENSIONS
in inches (millimeters) ± 0.02 mm (0.5)
0.01
(0.25)
0.188
(4.78)
min.
0.020 x 0.012
(0.51 x 0.30)
0.410
(10.41)
T640
(pin styles P and M)
0.190
(4.83)
0.2 ± 0.010
(5.1 ± 0.25)
Spectrol
0.395
(10.03)
T607
(all pin styles)
Ø 0.330
(8.38)
63P
63X
0.100
(2.54)
0.375
(9.52)
0.100
(2.54)
0.177
(4.5)
0.100
(2.54)
0.375
(9.52)
0.045
(1.14)
Ø 0.550
(13.97)
0.320
(8.13)
0.01
(0.25)
63M
0.100
(2.54)
0.100
(2.54)
0.100
(2.54)
63S
T614
(all pin styles)
0.40
(1.02)
0.119
(3.02)
Revision: 27-Sep-11
Document Number: 57027
1
For technical questions, contact:
sfer@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
63
www.vishay.com
Vishay Spectrol
270° nominal
100
to 2 M
± 10 %
2
or 1 % whichever is greater
± 100 ppm/°C
0.5 W at + 70 °C derated linearly to 0 W at 125 °C
maximum voltage not to exceed 250 V
a
c
(3)
b
(2)
cw
ELECTRICAL SPECIFICATIONS
Effective travel
Resistance range
Resistance tolerance
End resistance
Temperature coefficient of resistance (typical)
Power rating
Circuit
diagram
(1)
Dielectric withstand voltage
Insulation resistance (500 V
DC
)
Contact resistance variation
1000 V
AC
at sea level; 250 V
AC
at 80 000 ft (24 000 m)
1000 M minimum
1 % or 1
, whichever is greater
MECHANICAL SPECIFICATIONS
Mechanical travel
Starting
torque
Weight
Resistance element
2 terminal adjustability
3 terminal adjustability
Terminals
300° ± 50
35 mNm max.
0.03 oz. (0.85 g) max.
Cermet
± 0.15 % of RT
± 0.05 % of applied voltage
Pure Sn (code e3)
ENVIRONMENTAL SPECIFICATIONS
Temperature range
Climatic category
Sealing
- 55 °C to + 125 °C
55/125/21
Fully sealed - IP67
PERFORMANCES
TESTS
Vibration
Electrical endurance
Soldering
Resistance to heat
Damp heat steady state
Mechanical life
Terminal strength
CONDITIONS
98 m/s
2
, 10 Hz to 500 Hz
1000 h
-
-
21 days
200 cycles
2.2 lbs. (1 kg)
MAX.
(R)
1%
3%
-
1%
3%
3%
min.
CHANGE PER CECC
V
AB
/V
AC
2%
-
-
-
-
-
-
41100
(PARA 2.3.2)
(PARA 2.5.16)
(PARA 2.3.7)
(PARA 2.3.7)
(PARA 2.1)
-
-
PER IEC
Test FC (IEC 6-2-6)
-
Test TB (IEC 68-2-20)
Test B (IEC 68-2-20A)
Test C (IEC 68-2-3)
Method 2
-
PER MIL
Method 204
No equiv.
Method 208
Method 210
Method 103
-
-
MARKING
•
•
•
•
•
•
Vishay trademark
Model
Resistance value
Tolerance
Date code
Terminal identification
Revision: 27-Sep-11
Document Number: 57027
2
For technical questions, contact:
sfer@vishay.com
