SPECIFICATION
Part Number
:
ILA.01
Product Name
:

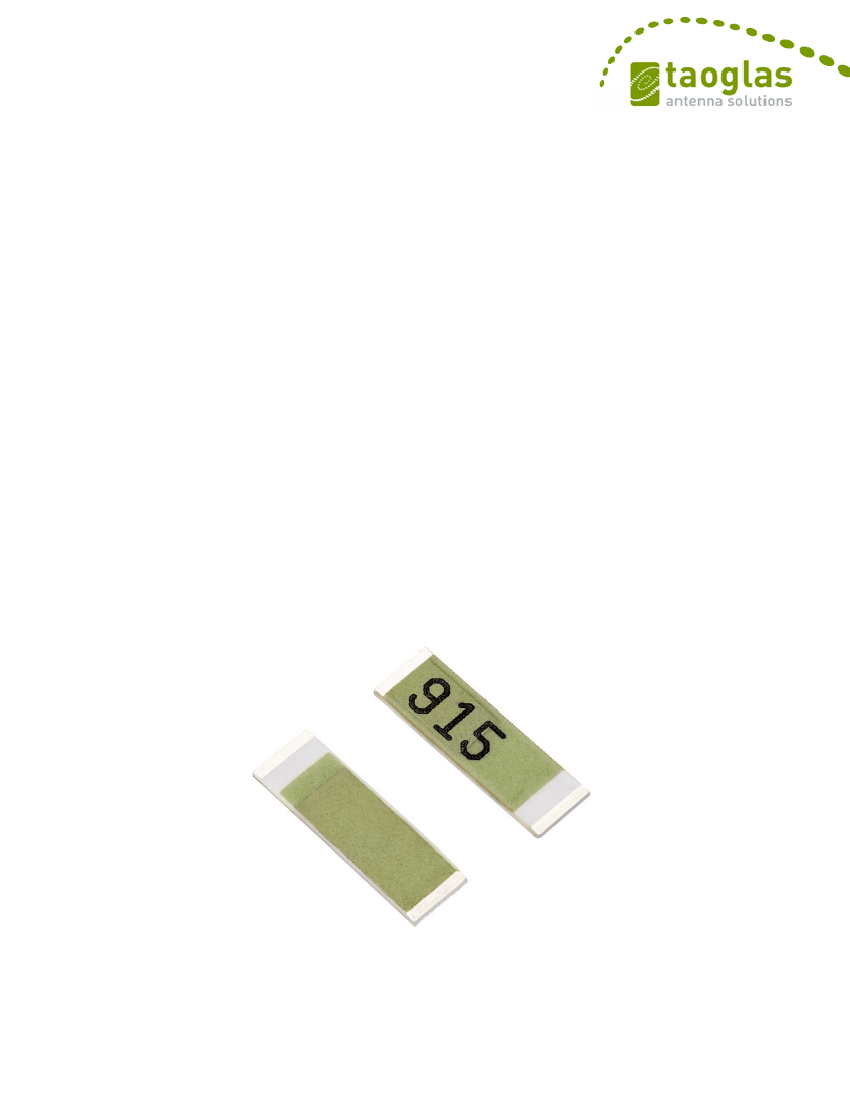

Low Profile and High Efficient 915 MHz ISM Band Loop Antenna
Features
:
Small size antenna, low profile and high efficiency
915 MHz ISM Band
1 dBi Peak Gain
10x3.2x0.5mm size
SMT Compatible
RoHS Compliant
SPE-12-8-079/B/RC
Page 1 of 12
1. INTRODUCTION
The ILA.01 has excellent stability and sensitivity to consistently provide high signal reception
efficiency, 60% at centre frequency and 45% at the edges. Based on the loop effect this antenna
works the best when placed on the centre of the edge of the board, working better than
traditional linear polarized chip antennas. The antenna at 10x3.2x0.5 mm is low profile and
would be suitable for devices with space constraints. The ILA.01 is delivered on tape and reel
and now allows M2M customers to use an Omni-directional SMT antenna in devices where
orientation of the product is unknown. The ILA.01 Loop antenna can be used in automated
meter reading, (AMR), radio frequency identification (RFID), remote monitoring, healthcare,
sensing and others.
2. SPECIFICATION
ELECTRICAL
ANTENNA
STANDARD
Operation Frequency (MHz)
Polarization
Impedance
Max VSWR (dBi)
Max Return Loss (dB)
Peak Gain
Efficiency (%)
Average Gain (dB)
Radiation Properties
Max Input Power
ILA.01
915 MHz ISM
902-928 MHz
Linear
50 Ohms
2:1
-10
1 dBi
50
-3
Omni-directional
5W
* The ILA.01 antenna performance was measured with 80x40 mm ground plane.
MECHANICAL
Dimensions (mm)
Required Space (mm)
Material
EVB Connector
10x3.2x0.5
11x10.4
Ceramic
SMA-Female
SPE-12-8-079/B/RC
Page 2 of 12
ENVIRONMENTAL
Operation Temperature
Storage Temperature
Relative Humidity
RoHS Compliant
-40°C to 85°C
-40°C to 105°C
40% to 95%
Yes
3. TEST SET UP
Z
X
Y

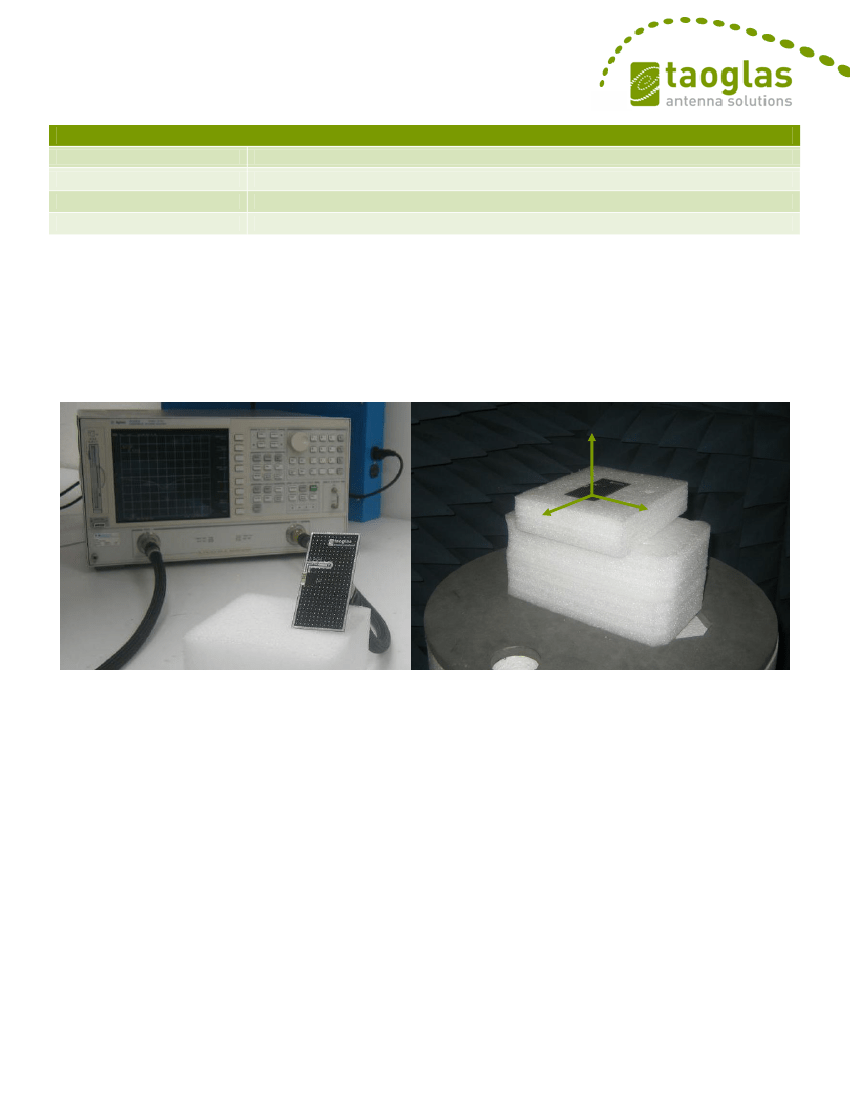

Figure 1.
Impedance measurements (left hand) and peak gain, average gain,
efficiency and radiation pattern measurements (right hand)
SPE-12-8-079/B/RC
Page 3 of 12
