IMX-1100 Overview

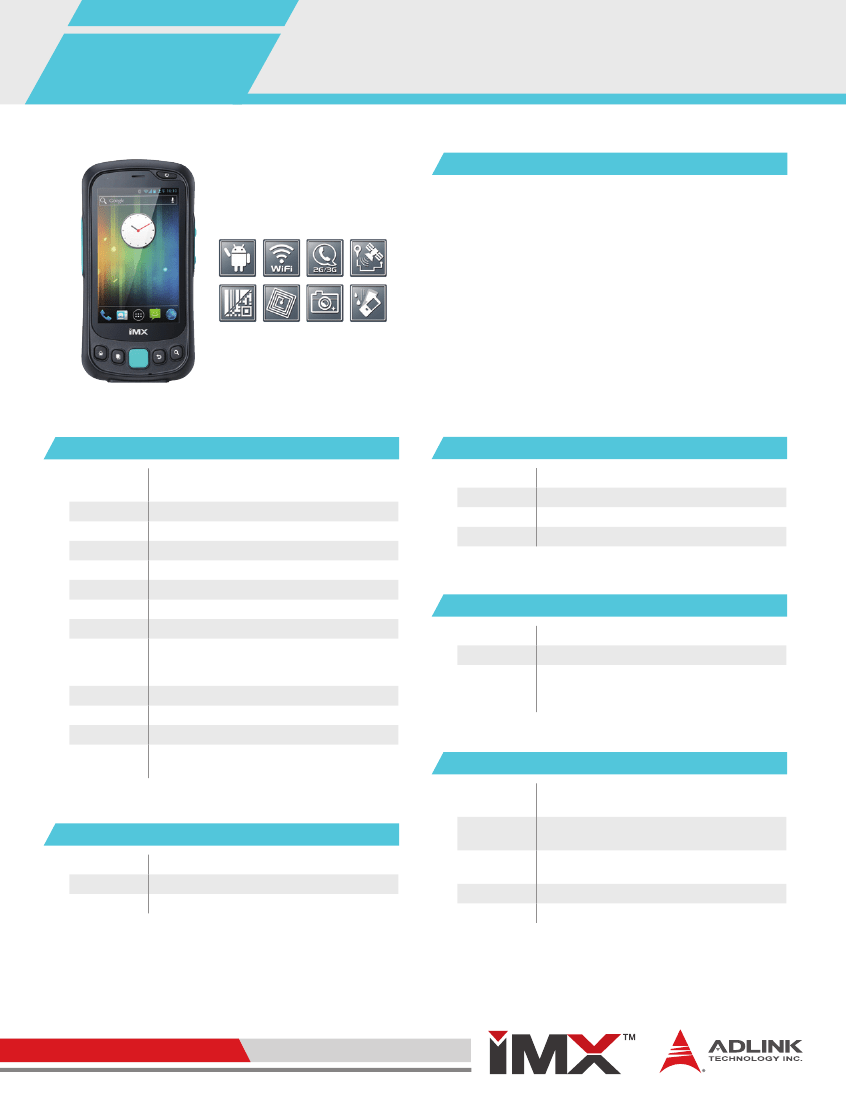

Industrial Mobile Handheld Device

Preview

Download Datasheet

View All

IMX-3000

Industrial Mobile Handheld Device

Features

■

Android 4.0 operating system

■

3.8” WVGA (480 x 800) TFT-LCD; sunlight readable;

five point capacitive touch screen

■

Wireless radio

WLAN: IEEE 802.11 b/g/n

WPAN: V4.0

WWAN: WCDMA 850 / 1900 / 2100 ;

GSM 850 / 900 / 1800 / 1900: HSDPA: 7.2Mb/s ; HSUPA: 5.76 Mb/s

■

GPS - enabled & AGPS supported

■

Data capture: CCD / 1D laser engine / 2D imager / NFC PN544 (13.56 MHz)

■

5M pixel camera with AF flash LED (standard) / 2M pixel CMOS

without AF (option)

■

Rechargeable 2600mAh Li-ion battery / 3.7V

■

1.2m drop and IP54 sealing

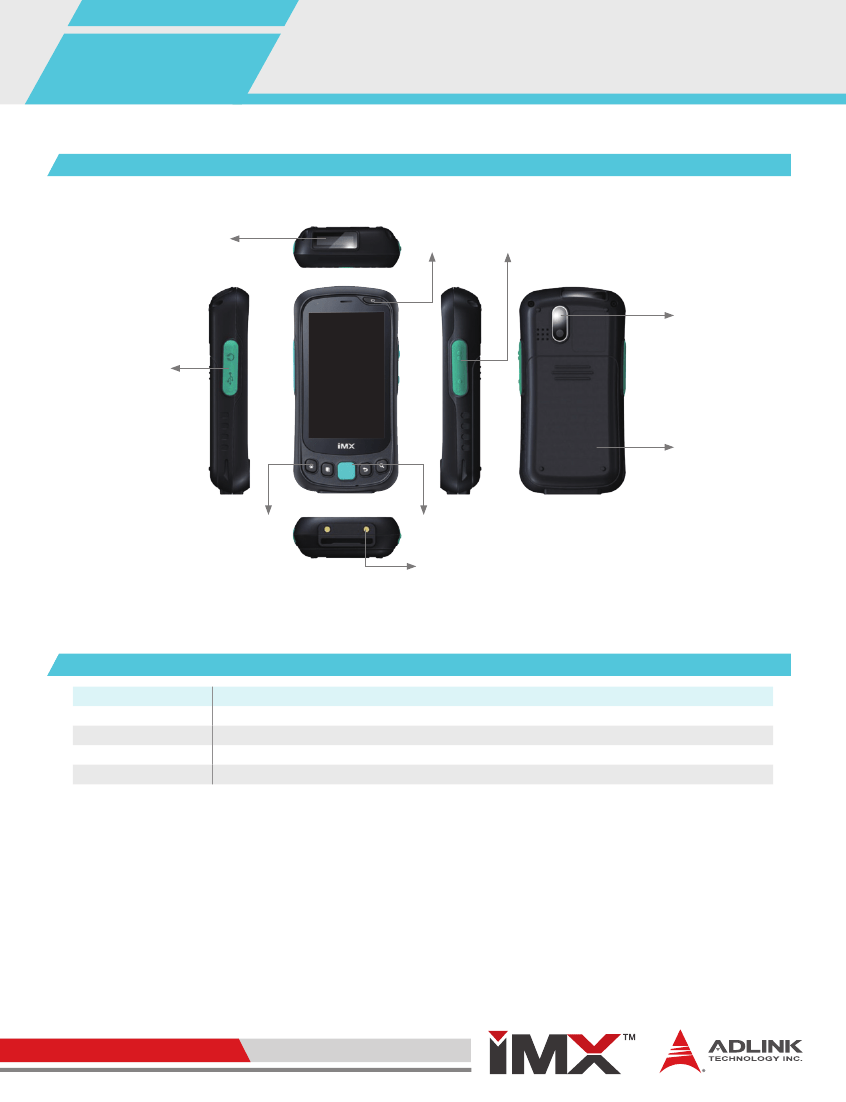

Physical Characteristics

Dimensions

(L x W x H)

Weight

Expansion slot

SIM slot

SAM slot

Notifcation

Keypad/Button

Audio speaker

Headset/

Receiver/

Microphone

Light sensor

G sensor

Compass

Proximity

sensor

140.9 x 72.9 x 27.3(mm) / 5.5 x 2.9 x 1.1(inch)

177g ± 5g (excluding battery)

microSD x 1, support microSDHC

SIM slot x1 (Combo with microSD slot)

SAM slot x1 (for NFC)

Vibrator, triple LED (R, G, B)

5 keys, 2 side keys

90dB 1KHz @ 10cm

3.5 mm headset x 1 / Receiver x 1/ Microphone x 1

With Light sensor

With G sensor

With Compass

With proximity sensor

Data Capture

CCD

1D

2D

NFC

CCD imager

1D laser engine

2D imager

NFC PN544 (13.56MHz) with SAM slot x 1

Wireless

WLAN

WPAN

WWAN

IEEE 802.11 b/g/n

Bluetooth V4.0

WCDMA 850 / 1900 / 2100 ;

GSM 850 / 900 / 1800 / 1900: HSDPA: 7.2Mb/s ;

HSUPA: 5.76 Mb/s

Working Environment

Operating

Temperature

CCD : 0°C ~ 40°C

1D & 2D : -10°C ~ 50°C

0°C ~ 40°C

-20°C ~ 60°C

10% to 90% @ 25°C, non-condensing

+/- 12KV (air discharge), +/- 8KV (direct discharge)

Performance Characteristics

CPU

Memory

Interface

1.2GHz dual CPU

768MB DDR SDRAM / 4GB eMMC Flash

USB 2.0 OTG

Charging

Temperature

Storage

Temperature

Humidity

ESD

www.adlinktech.com
