BG145-03-G-1-0375-0180-L-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> BG145-03-G-1-0375-0180-L-D

BG145-03-G-1-0375-0180-L-D: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Socket,; CategoryThe connector The connector; File Size167KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG145-03-G-1-0375-0180-L-D Overview

Board Connector, 3 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Socket,

BG145-03-G-1-0375-0180-L-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145007687091
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.098 inch
subject depth	0.293 inch
body length	0.32 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.148 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

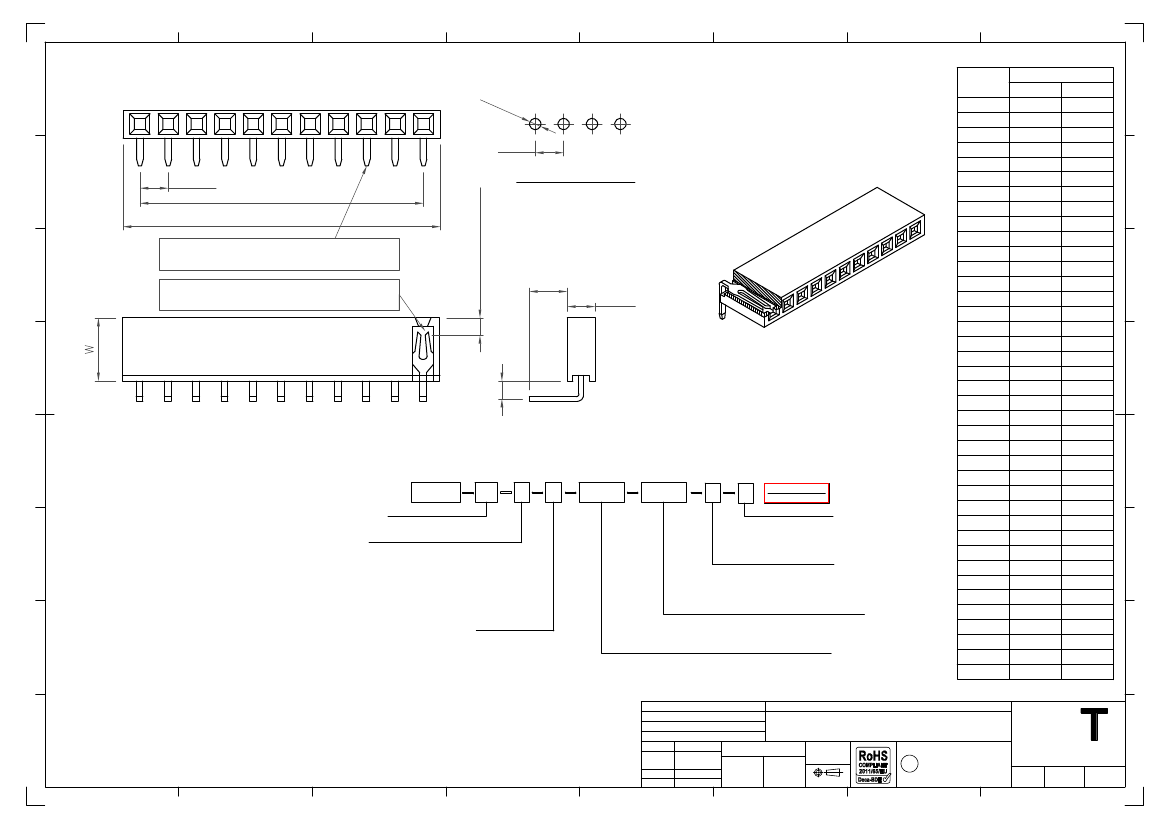

Ø1

.02

Number of

Contacts

Dimension

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

5.58

8.12

10.66

13.20

15.74

18.28

20.82

23.36

25.90

28.44

30.98

33.52

36.06

38.60

41.14

43.68

46.22

48.76

51.30

53.84

56.38

58.92

61.46

64.00

66.54

69.08

71.62

74.16

76.70

79.24

81.78

84.32

86.86

89.40

91.94

94.48

97.02

99.56

102.10

2.54

B±0.38

Width=5.65mm: Pin Size = 0.74mm x 0.40mm

Width=8.50mm: Pin Size = 0.60mm x 0.40mm

Width=5.65mm: Min. Insertion Depth = 1.55mm

Width=8.50mm: Min. Insertion Depth = 1.92mm

Minimum Insertion Depth

Recommended PCB Layout

A±0.25

2.50

Specifications

规格

Electrical

电气

Current Rating

电流额定值

: 3 Amp

Insulator Resistance

绝缘电阻值

: 1000 MΩ min.

Dielectric Withstanding

耐电压

: AC 600 V

Contact Resistance

接触电阻值

: 20mΩ max.

Material

物料

Contact Material

端子物料

: Copper Alloy

Insulator Material

绝缘½物料

Standard

标准物料

: Polyamide

聚醯胺

, Nylon 6T, UL 94V-0

Options

可选物料

: Polyester

聚酯

, LCP, UL 94V-0

Polyester

聚酯

, PBT, UL94-V0

Mechanical & Environmental

机械

环境

Operating Temperature

工½温度

: -40°C to +105°C

Soldering Process

可焊性

Nylon 6T (Standard

标准物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 230°C for 5-10 sec.

Manual Solder

人工焊接

: 350°C for 3-5 sec

PBT (Option

可选物料

) - Manual Solder

人工焊接

: 330°C for 3-5 sec.

(Not suitable for hi-temp process

不适合高温处理

)

LCP (Option

可选物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 250°C for 5-10 sec.

Manual Solder

人工焊接

: 350°C for 3-5 sec

Mates with

配套之母座

(Subject to pin length

在端子长度适合的条件下

BG020

BG030

BG035

BG055

BG060

BG075

BG080

Ordering Grid

BG145

No. of Contacts

02 to 40

XXXX

Request Samples

and Quotation

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact

Area/Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Width W

2 = 8.50mm

(Standard)

1 = 5.65mm

Packing Options

D = Tube

(Standard)

G = Plastic Box

H = Tray

Insulator Material

N = Nylon 6T

(Standard)

P = PBT

L = LCP

Dimension D (1/100mm)

(Bottom of Insulator to Pin Centre)

0160 = 1.60mm

(when W = 8.50mm) (Standard)

0180 = 1.80mm

(when W = 5.65mm)

Dimension C (1/100mm)

(Insulator to Pin End)

0320 = 3.20mm

(when W = 8.50mm) (Standard)

0375 = 3.75mm

(when W = 5.65mm)

Part Number

Product Description

BG145

Drawing Date

30th October 2006

Detail

Revision

Date

AJO

BG145

G PCN

21/07/15

Length

2.54mm Pitch Socket

Single Row, Through-Hole, Horizontal

Tolerances

(Except as Noted)

Angle

X.° ± 5°

X. ± 0.30

X.X° ± 2°

X.X ± 0.20

X.XX ± 0.15 X.XX° ± 1°

X.XXX ± 0.10 X.XXX° ± 0.5°

Units:

Metric (mm)

3rd Angle Projection

This drawing is confidential and

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

Drawn By

LYH

www.gct.co

Not to

Scale

Sheet No.

1/1
