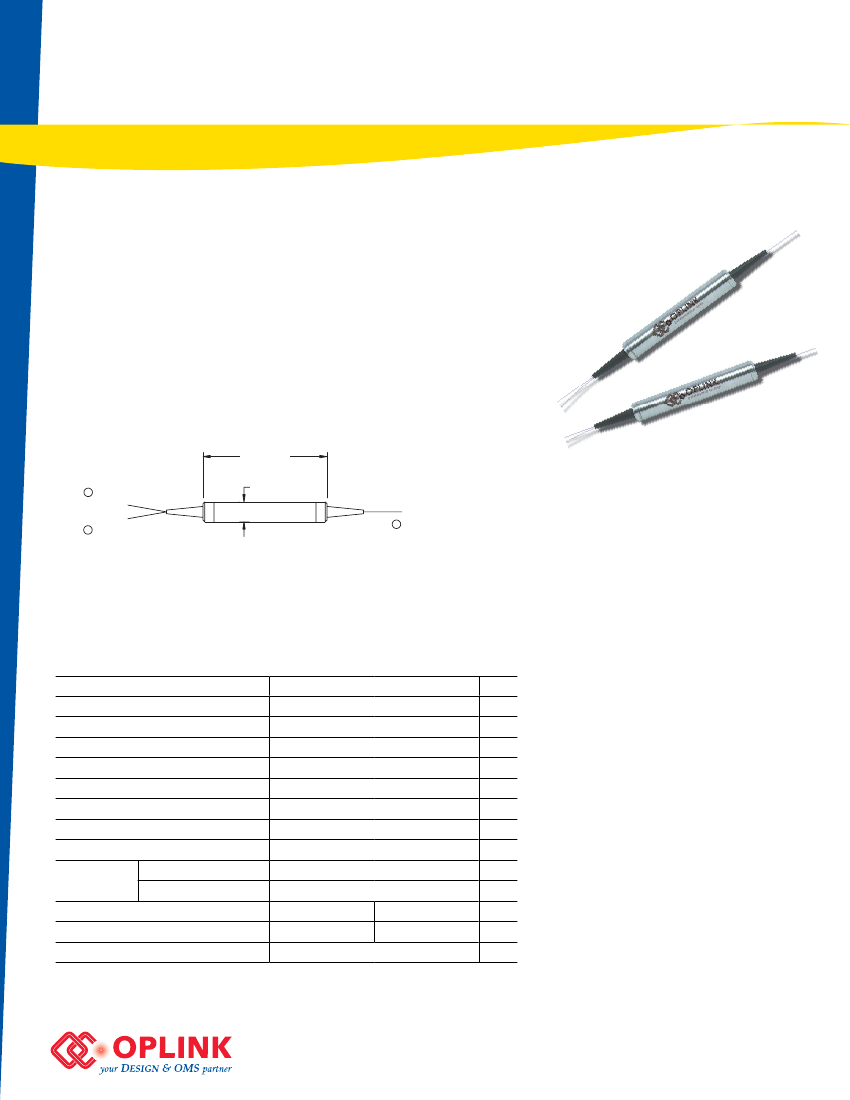

Polarization Maintaining Beam
Combiner and Isolator Hybrid
PMIH Series
Product Description
Oplink’s polarization maintaining beam combiner and isolator hybrid deliv-
ers the combined functionality of a PMBC and an isolator within a single,
compact-sized package. Oplink’s integrated solution is designed to work as
pump combiner for EDFA and Raman amplifications and features very high
power handling and low insertion loss. Oplink’s patented packaging tech-
nology ensures the highest quality and reliability for robust operation.
Oplink can provide customized designs to meet specialized feature applica-
tions. Also, Oplink offers modular assemblies that integrate other compo-
nents to form a full function module or subsystem.
34.0 mm
1
PORT1
Panda Fiber
Ø5.5 mm
COMM SMF-28
2
PORT2
Panda Fiber
3
Performance Specificationns
PMIH Series
Specification
Unit
Features
Low Insertion Loss
High Stability & Reliability
Epoxy-free Optical Path
Compact Package Size
Operating Wavelength
Insertion Loss
Isolation
Extinction Ratio (room temperature)
Return Loss
Directivity
Direction of Incident Polarization
Maximun Power Handling
Fiber Type
Input Ports (1 & 2)
Output Port (Common)
1480 ± 30 / 1440 ± 30
< 0.6
> 18
> 20
> 50
> 50
Slow Axis
< 500
400µm / 250µm Panda fiber
Corning SMF-28, 250µm bare fiber
nm
dB
dB
dB
dB
dB
mW
Applications
EDFA & Raman Amplifiers
°C
°C
mm
Operating Temperature
Storage Temperature
Package Dimension
Notes
[1]
Values are referenced without connector loss
[2]
ER is 3dB lower if connector added
0
-40
+70
+85
Highly Integrated Modules
Laboratory R&D
P1 : (Ø) 5.5±0.2 x (L) 34.0±1
S0162 - R02. 20111108
Polarization Maintaining Beam Combiner
and Isolator Hybrid
PMIH Series
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink’s OEM
design team or account manager for your requirements and ordering information (510) 933-7200.
PMIH
1
4
0
0
0
0
Wavelength
1480nm = 1480
1440nm = 1440
Fiber Length*
0.5 meter = H
1.0 meter = 1
1.5 meters = 5
Connector Type
None = 1
FC/PC = 2
FC/SPC = 3
FC/APC = 4
SC/PC = 5
SC/SPC = 6
SC/APC = 7
46335 Landing Pkwy Fremont, CA 94538 Tel: (510) 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com • www.oplink.com
Fiber Type
Port 1/2 : 400µm Panda fiber = 1
Port 1/2 : 250µm Panda fiber = 2
Fiber Jacket
Bare fiber = 1
900µm Loose tube = 2
* 1 meter is standard. The lead-time for special fiber length will
be longer.
S0162 - R02. 20111108
