D2141L-4: DescriptionStandard SRAM, 4KX1, 200ns, MOS, CDIP18; Categorystorage storage; File Size369KB，6 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

D2141L-4 Overview

Standard SRAM, 4KX1, 200ns, MOS, CDIP18

D2141L-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1164791891
package instruction	DIP, DIP18,.3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	200 ns
I/O type	SEPARATE
JESD-30 code	R-XDIP-T18
JESD-609 code	e0
memory density	4096 bit
Memory IC Type	STANDARD SRAM
memory width	1
Number of terminals	18
word count	4096 words
character code	4000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4KX1
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Minimum standby current	4.5 V
Maximum slew rate	0.04 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	MOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

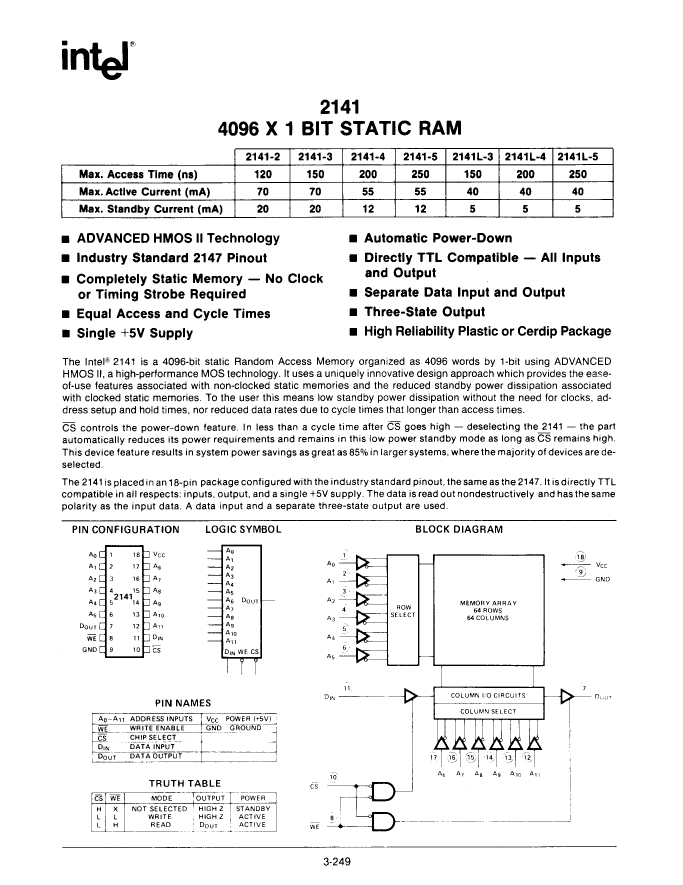

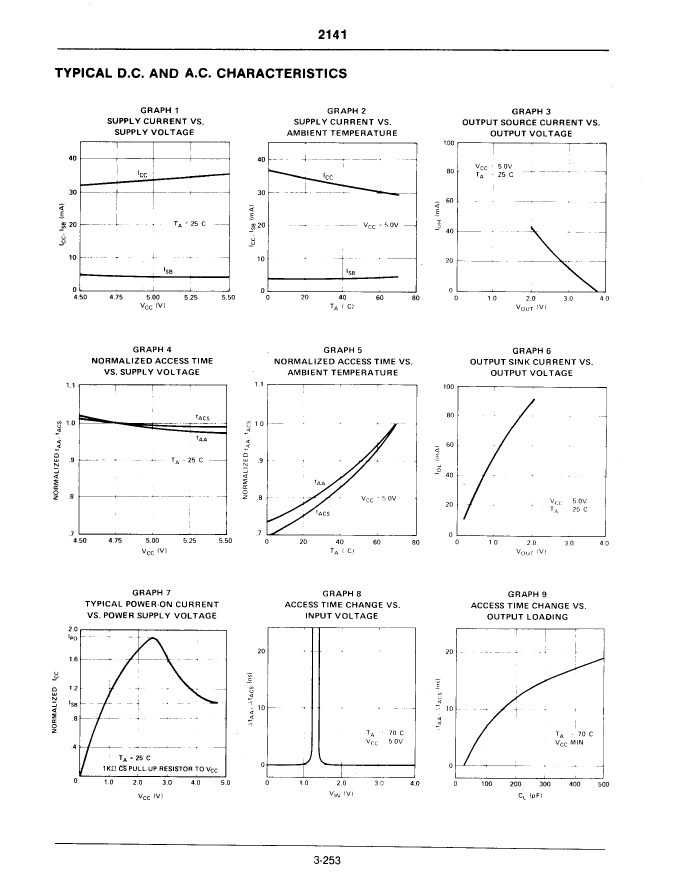

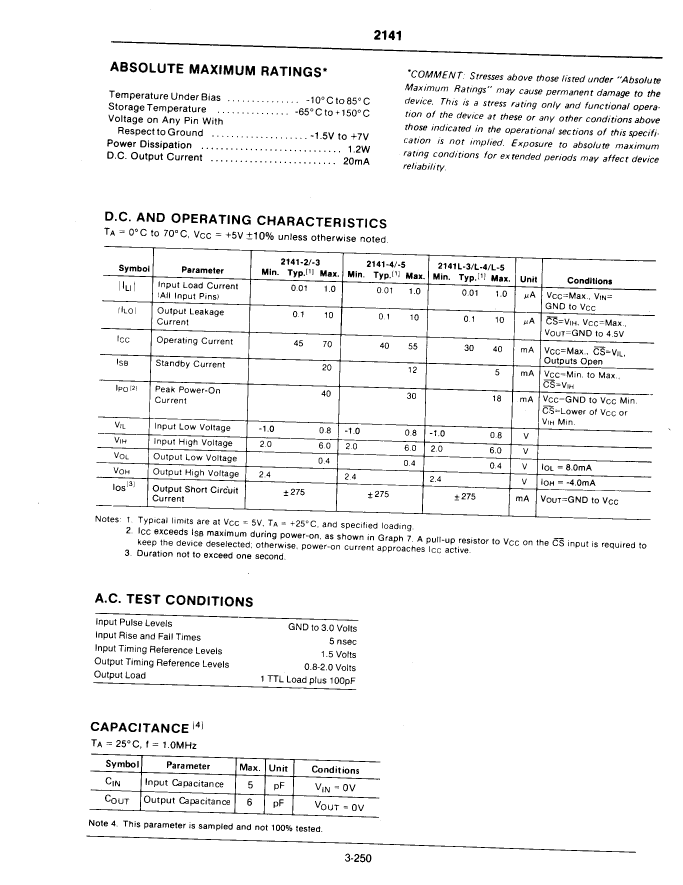

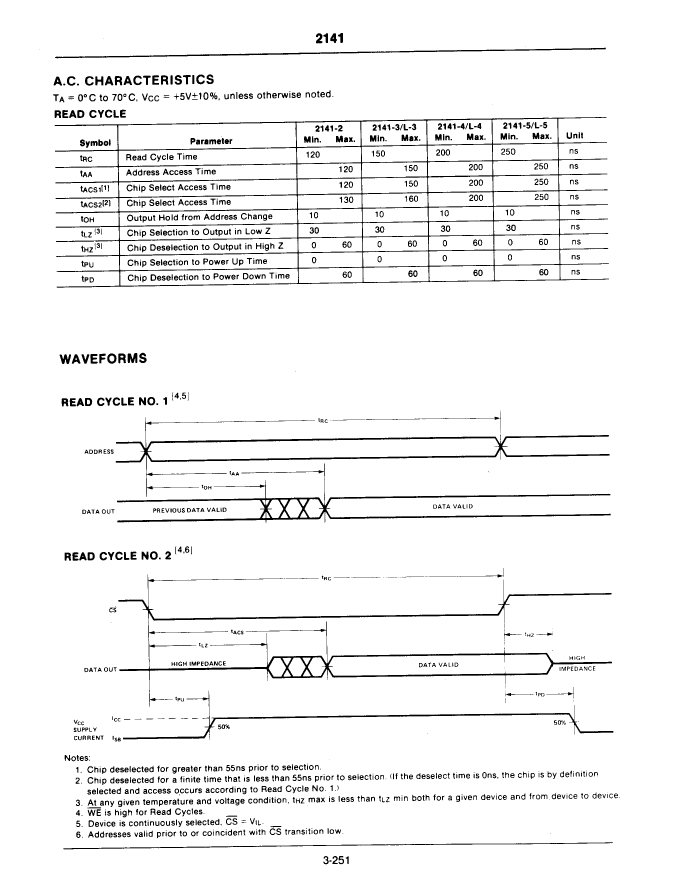

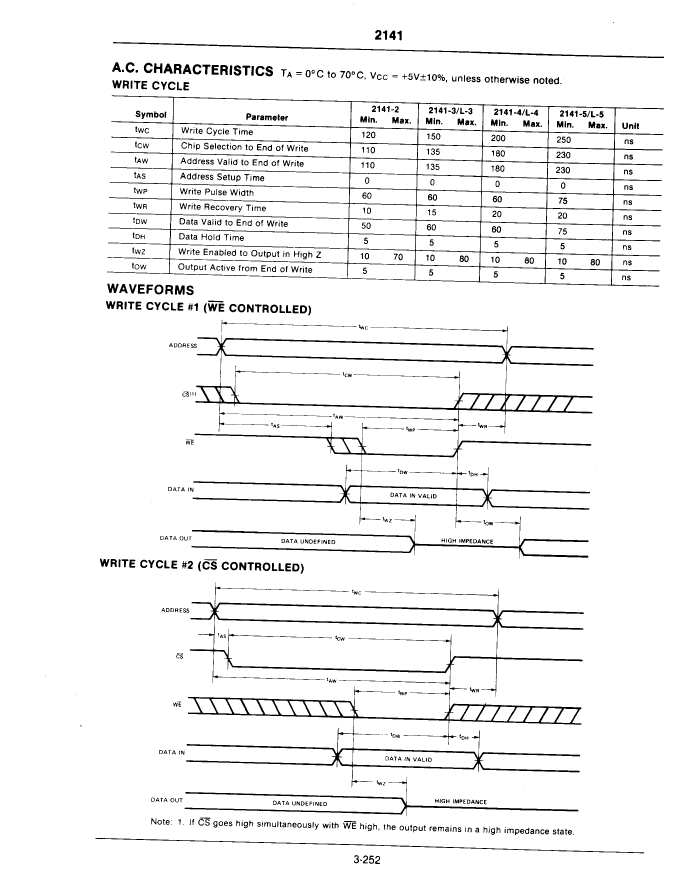

Preview

Download Datasheet

View All

D2141L-4 Related Products

	D2141L-4	D2141-2	P2141L-5	P2141-3
Description	Standard SRAM, 4KX1, 200ns, MOS, CDIP18	Standard SRAM, 4KX1, 120ns, MOS, CDIP18	Standard SRAM, 4KX1, 250ns, MOS, PDIP18	Standard SRAM, 4KX1, 150ns, MOS, PDIP18
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3
Reach Compliance Code	unknown	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	200 ns	120 ns	250 ns	150 ns
I/O type	SEPARATE	SEPARATE	SEPARATE	SEPARATE
JESD-30 code	R-XDIP-T18	R-XDIP-T18	R-PDIP-T18	R-PDIP-T18
JESD-609 code	e0	e0	e0	e0
memory density	4096 bit	4096 bi	4096 bit	4096 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	1	1	1	1
Number of terminals	18	18	18	18
word count	4096 words	4096 words	4096 words	4096 words
character code	4000	4000	4000	4000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	4KX1	4KX1	4KX1	4KX1
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Minimum standby current	4.5 V	4.5 V	4.5 V	4.5 V
Maximum slew rate	0.04 mA	0.07 mA	0.04 mA	0.07 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	MOS	MOS	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Objectid	1164791891	-	1164793147	1435318466
