LUCKY LIGHT
Features
♦
♦
♦
♦
High intensity
Standard T-1 diameter package
Viewing angle=30°
Reliable and rugged

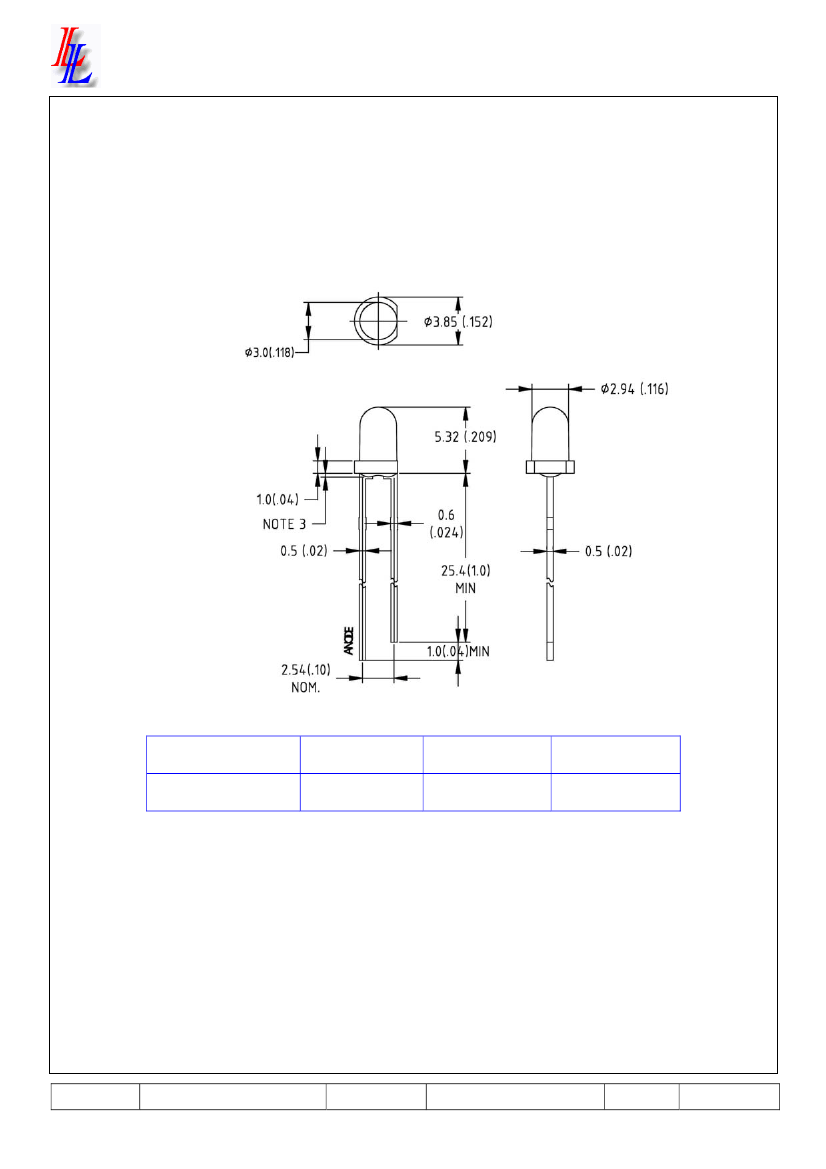

Package Dimension:
Part NO.
LL-304WC2E-002
Notes:
Material
GaN/SiC
Lens Color
Water Clear
Source Color
White
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(.010”)mm unless otherwise noted.
3. Protruded resin under flange is 1.0mm(.04”) max
4. Lead spacing is measured where the leads emerge from the package.
5.
Specifications are subject to change without notice
6. Caution in ESD:
Siatic Electricity and surge damages the LED. lt is recommend to
use a wrist band or anti-electrostatic glove when handling the
LED.All devices, equipment and machinery must be properly grounded.
Part No.
LL-304WC2E-002
Spec No.
S/N-302X36I2030
Page
2
of
2
LUCKY LIGHT
Absolute Maximum Ratings at Ta=25℃
Parameter
Power Dissipation
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
Continuous Forward Current
Derating Linear From 50℃
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature
[4mm(.157”) From Body]
MAX.
100
100
35
0.4
5
-40℃ to +80℃
-40℃ to +80℃
260℃ for 5 Seconds
Unit
mW
mA
mA
mA/℃
V
Electrical Optical Characteristics at Ta=25℃
Parameter
Luminous Intensity
Viewing Angle
x
=
X
Re
d
=
X
+
Y
+
Z
Re
d
+
Green
+
Blue
Symbol
Iv
2θ
1/2
x
y
V
F
I
R
Min.
1000
---
---
---
2.8
---
Typ.
1800
25
0.30
0.30
3.6
---
Max.
2800
30
---
---
4.0
100
Unit
mcd
Deg
Test Condition
I
f
=20mA (Note 1)
(Note 2)
I
F
=20mA (Note 3)
I
F
=20mA (Note 3)
y
=
Green
Y
=
X
+
Y
+
Z
Re
d
+
Green
+
Blue
Forward Voltage
Reverse Current
V
µA
I
F
=20mA
V
R
=5V
Note:
1.Luminous intensity is measured with a light sensor and filter combination that
approximates the CIE eye-response curve.
2.θ
1/2
is the off-axis angle at which the luminous intensity is half the axial luminous
intensity.
3.It use many parameters that correspond to the CIE 1931 2°. X,Y, and Z are CIE
1931 2°values of Red, Green and Blue content of the measurement.
Part No.
LL-304WC2E-002
Spec No.
S/N-302X36I2030
Page
3
of
3
LUCKY LIGHT

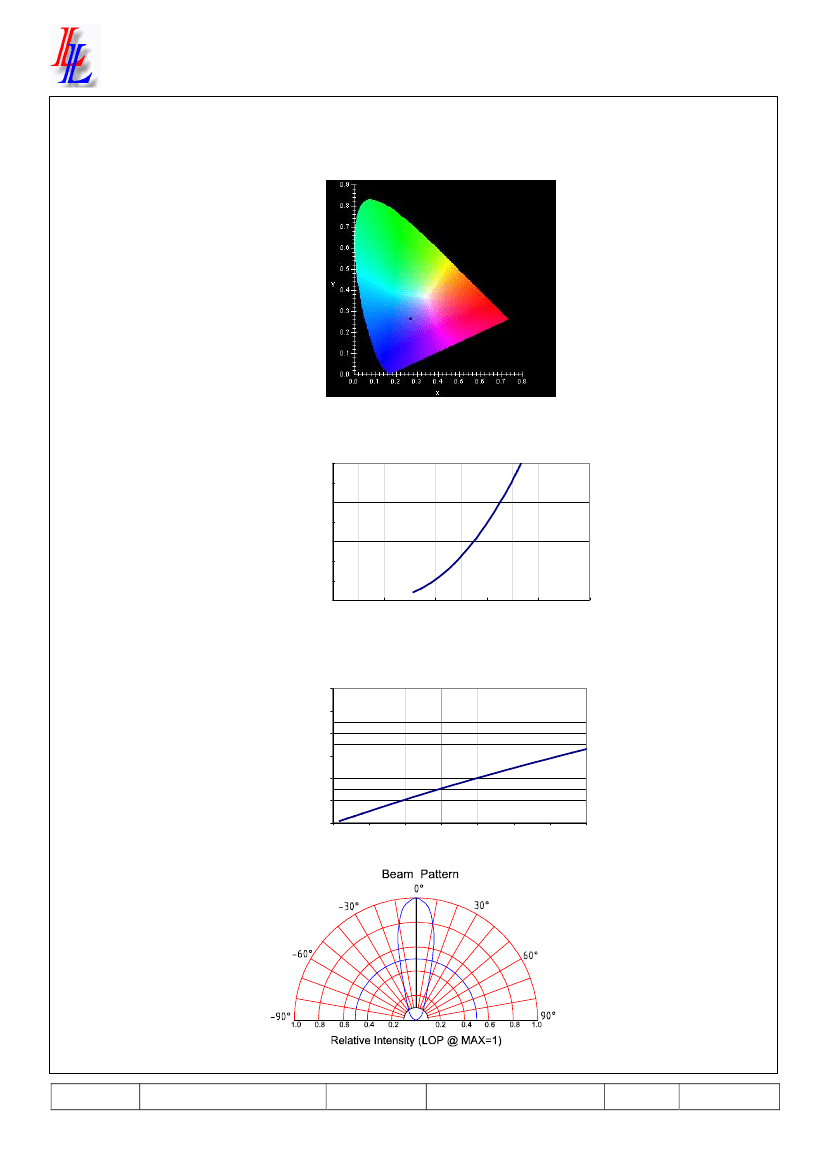

Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
CIE 1931 Chromaticity Diagram
Forward Current
vs Forward Voltage
35
30
25
20
15
10
5
0
2.4
2.8
3.2
3.6
4
4.4
Forward Current
IF(mA)
Forward Voltage VF(V)
Relative Luminous Intensity
vs Forward Current
3
Relative Intensity
(LOP@20mA=1)
2.5
2
1.5
1
0.5
0
0
5
10
15
20
25
30
35
Forward Current IF(mA)
Part No.
LL-304WC2E-002
Spec No.
S/N-302X36I2030
Page
4
of
4
